Telemecanique XCKJ10541H7 Limit Switch 240 VAC 10 Amp 1NO 1NC Replacement MPN

Product Description

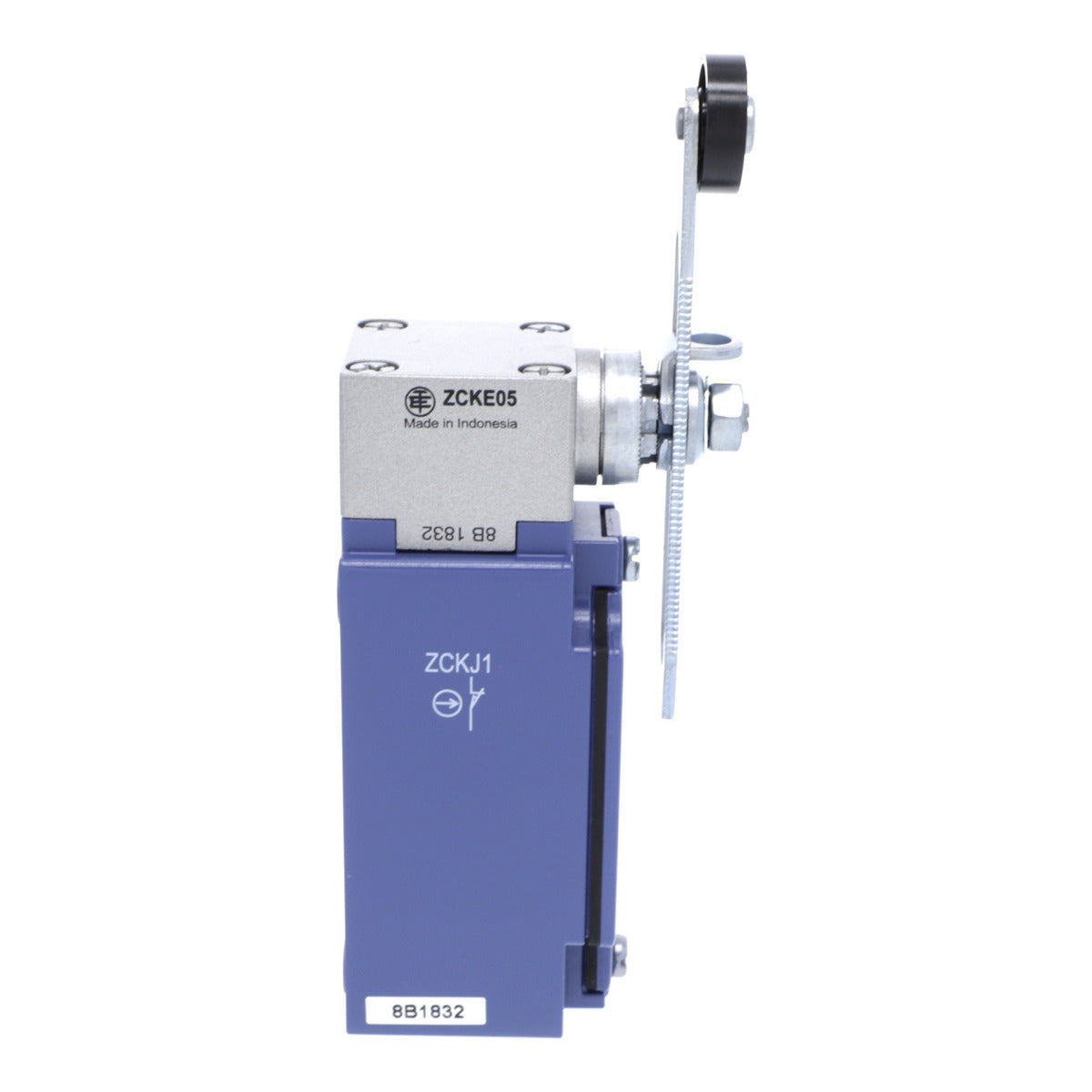

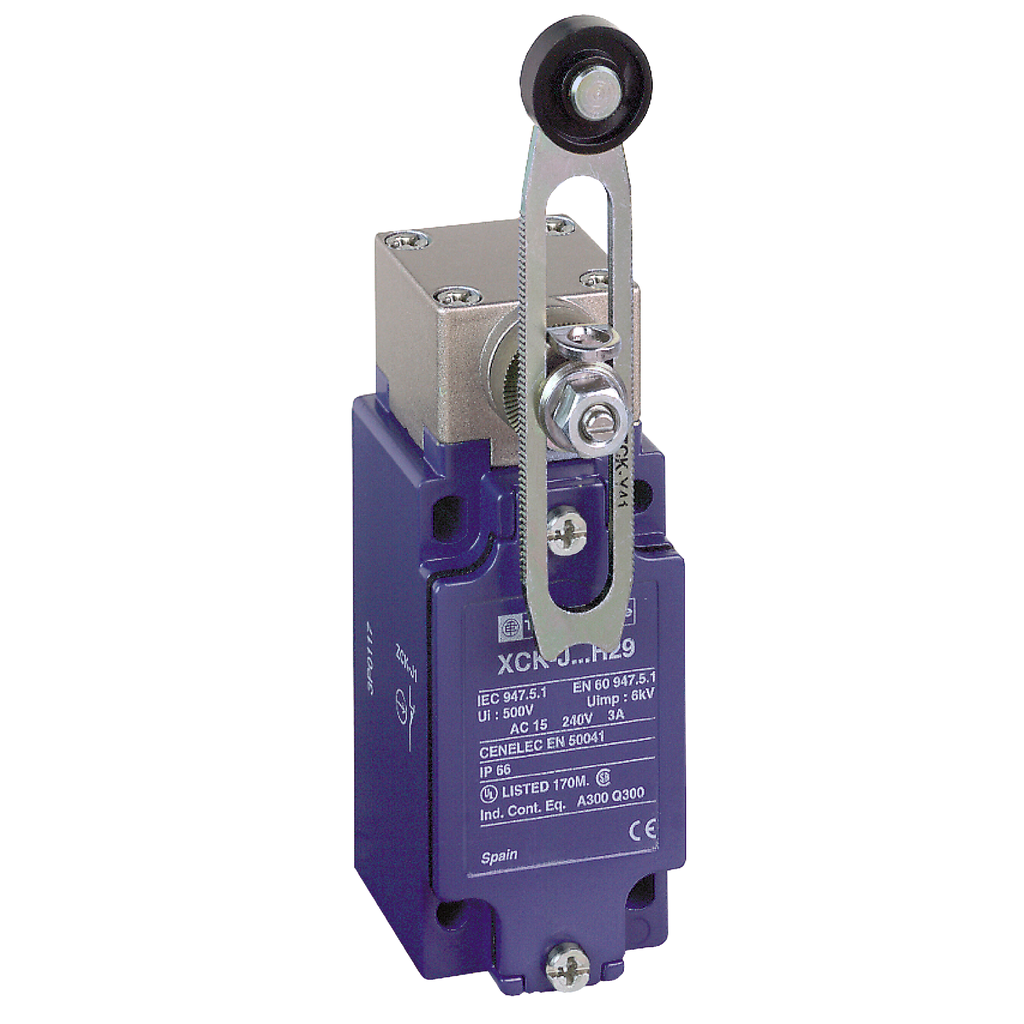

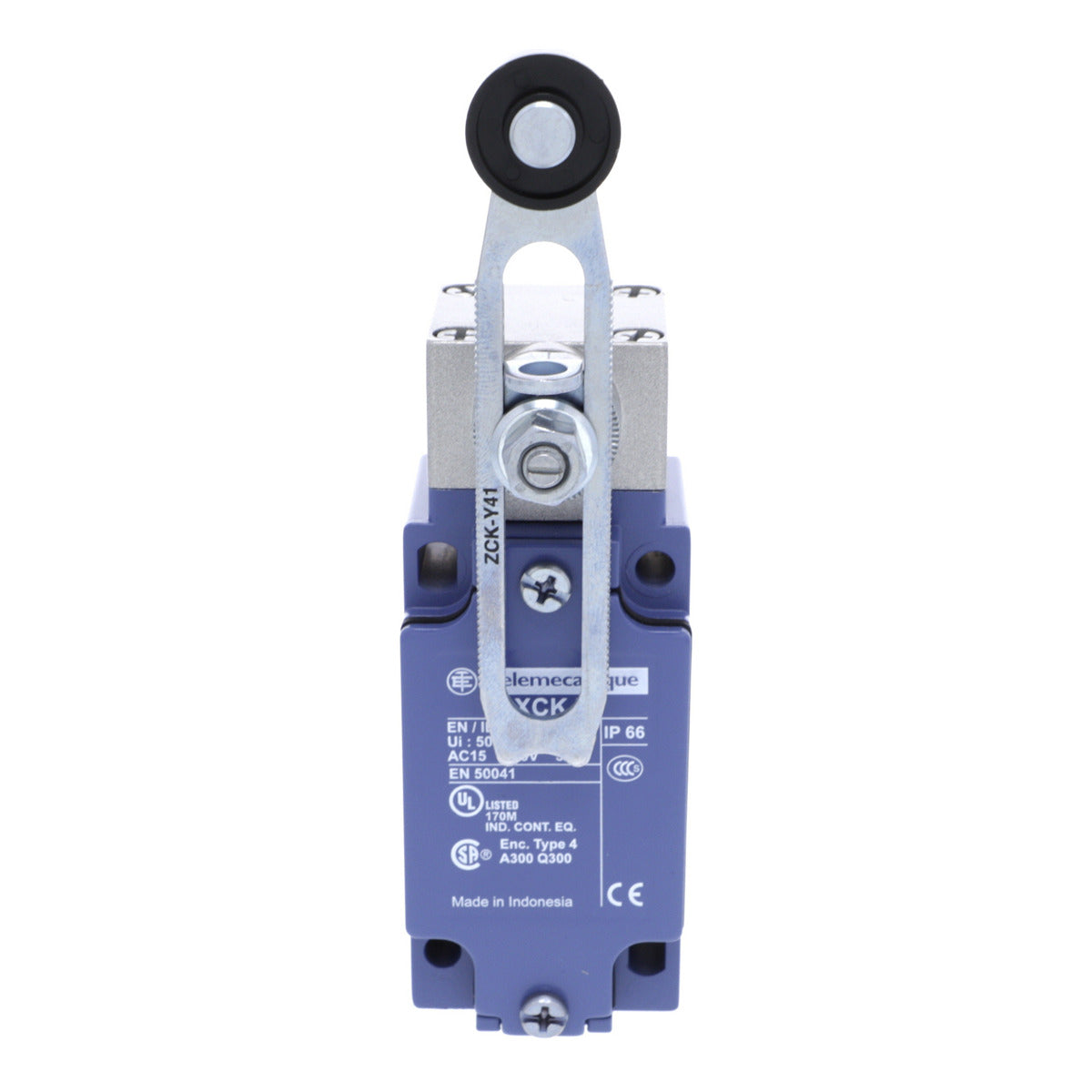

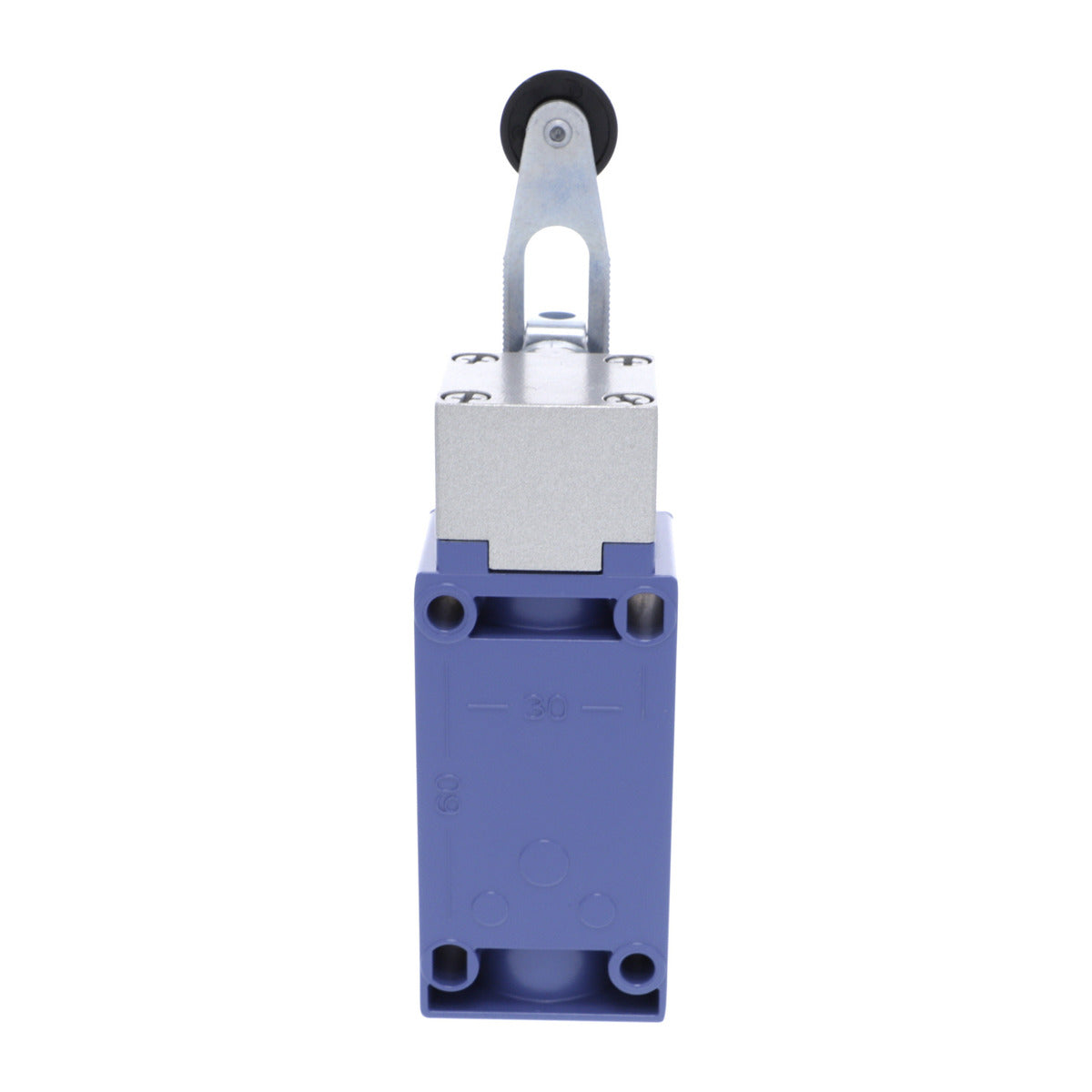

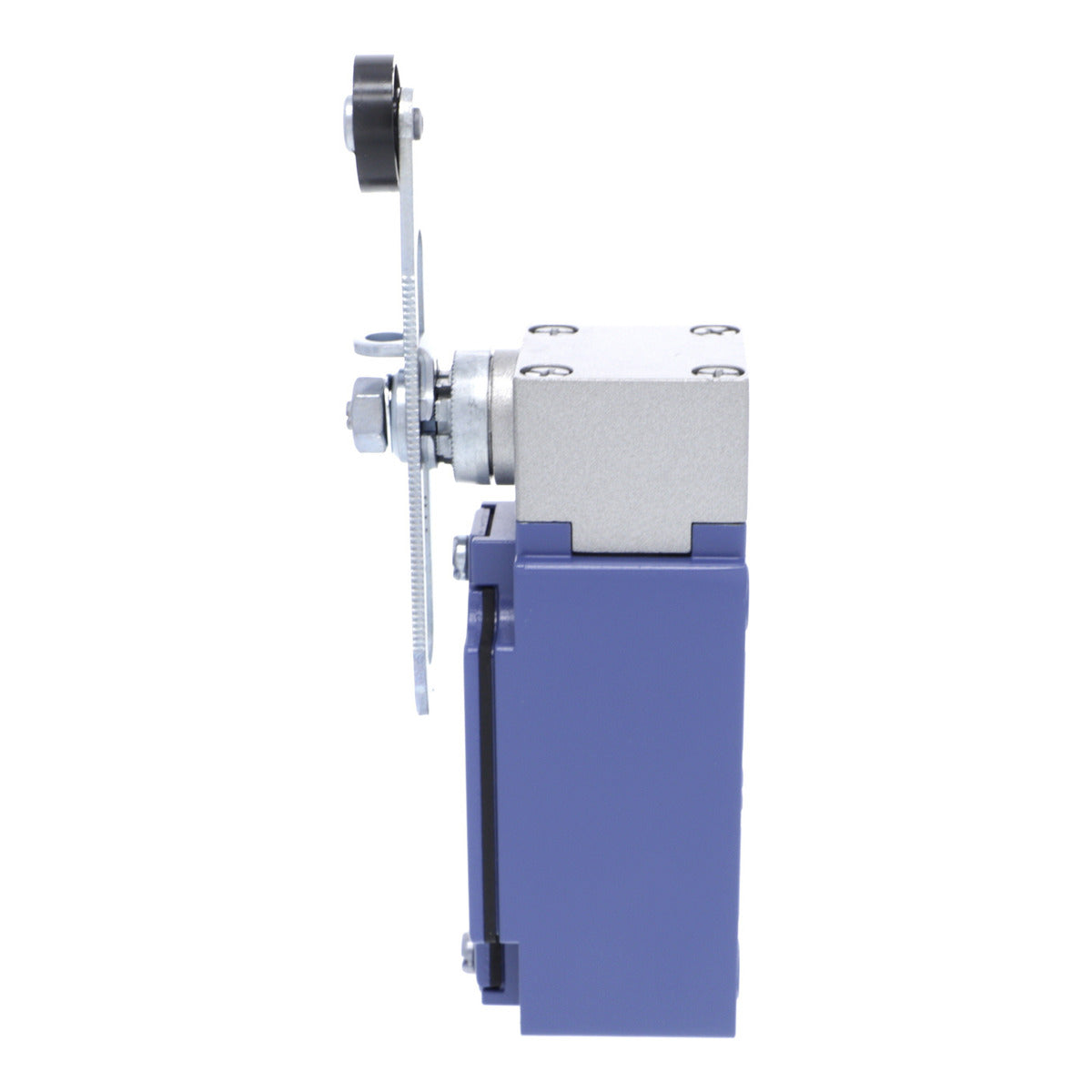

The Telemecanique XCKJ10541H7 limit switch is designed for industrial use. It is built with a thermoplastic variable length roller lever and a sturdy Zamak body. This switch can handle tough environments and is rated IP66 for dust and water resistance.

• Electrical durability up to five million cycles
• Mounting by the body for solid installation
• Compatible with common XCK heads for easy replacement

Product Highlights

This limit switch meets various safety standards including CCC and UL 508, ensuring high reliability. It operates efficiently in a temperature range of negative twenty-five to seventy degrees Celsius.

Product Information

Standard Information

• Catalog Number: XCKJ10541H7
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Body Type: Fixed
• Voltage Rating: 3 A 240 V AC
• Action: Snap action; by thirty-degree cam
• Number of Poles: 2
• Width: 1.73 inches
• Height: 77 mm
• Depth: 44 mm
• Weight: 1.07 lb
• Operating Temperature: -25 to 70 degrees Celsius
• Amperage Rating: 10 Amp
• Contact Configuration: 1 NC + 1 NO
• Country of Origin: Mexico
• Warranty Length: 18 months
