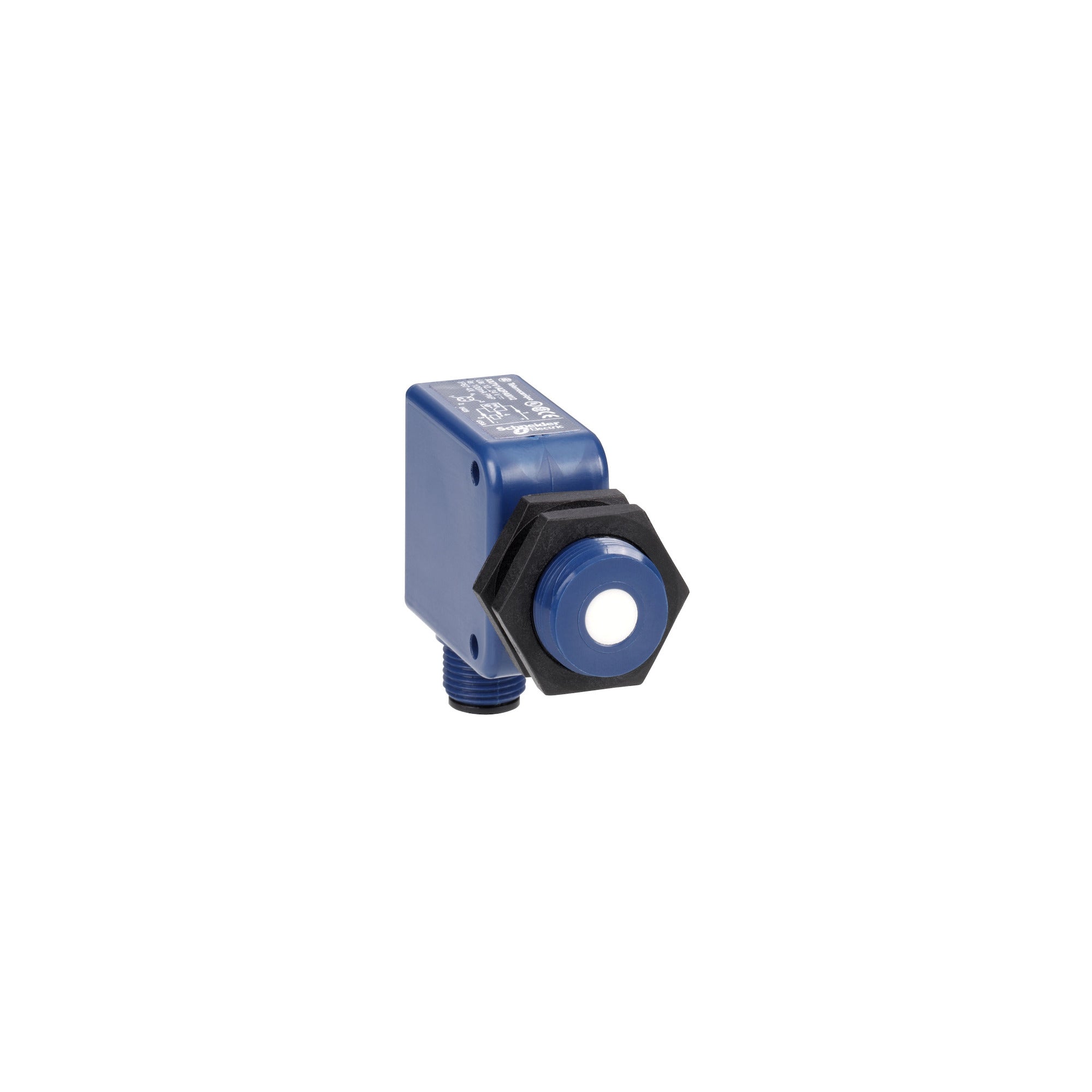

Telemecanique VM1PNOQ Square D 12 to 24 VDC 40 mA 300 kHz 1NO/PNP NEMA 4X Proximity Ultrasonic Sensor

Product Description

The Telemecanique VM1PNOQ is a proximity ultrasonic sensor designed for various industrial applications. This self-contained device uses pulse-echo technology to both transmit and receive sonic energy. It features a PNP sinking discrete output signal in a normally open configuration. The maximum sensing range for this dual mount sensor is two inches to twenty inches (fifty point eight millimeters to five hundred eight millimeters).

• Operates with a supply voltage of twelve to twenty-four volts DC.
• Configured with a four-wire wiring technique and a four-pin M12 male connector.
• Rated IP67 and NEMA 4X, ensuring durability in challenging environments.

Product Highlights

This sensor is suitable for use in packaging, automotive, paper industries, machine tools, assembly, water treatment, and food and beverage processing. It can detect materials of any color without needing adjustment or correction factors.

Product Information

Standard Information

• Catalog Number: VM1PNOQ
• Brand: Telemecanique

Technical Specifications

• Type: Flat form + cylindrical M18; Ultrasonic sensor
• Depth: forty-three point seven millimeters
• Width: eighteen millimeters
• Length: fifty-nine point six nine millimeters
• Weight: zero point zero seven lbs
• Current: forty milliamperes
• Material: Plastic
• Enclosure: Valox
• Indicator: Output not active 1 LED green
• Sensing Range: two point zero to twenty point zero inches (fifty point eight to five hundred eight millimeters)
• Operating Temperature: minus thirty to seventy degrees Celsius
• Country of Origin: Indonesia
