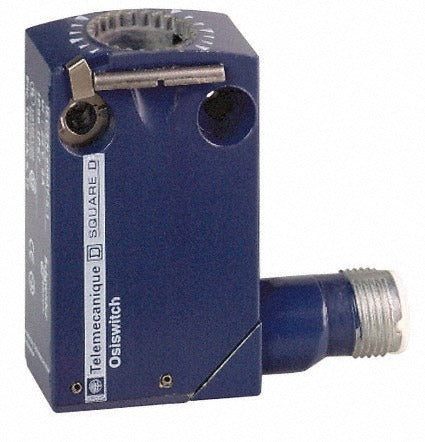

Telemecanique Sensors ZCMD21M12 Limit Switch Body 3.5in

Product Description

The TELEMECANIQUE SENSORS ZCMD21M12 is a Zamak-body limit switch body designed to accept a wide range of ZC-series limit switch heads. At 3.5 inches in overall length, this component forms the mechanical and electrical foundation of a modular limit switch assembly. The body houses the internal contact block mechanism and provides the mounting interface for compatible actuator heads. It is installed by licensed electricians and automation technicians in industrial control and machine safety applications wherever precise position sensing is required.

This limit switch body suits industrial automation environments including machine tool, conveyor, and material handling systems. It is intended for use in modular limit switch assemblies where the body and head are specified and installed as separate components. The ZCMD21M12 accepts a broad range of ZCE and ZCF series actuator heads, making it a flexible platform for varied actuator-style requirements across industrial installations. Both indoor and protected outdoor enclosures are typical deployment environments.

Key Features

• Zamak die-cast body construction provides durability in industrial environments
• 3.5-inch overall length suits standard modular limit switch assembly configurations
• Compatible with a broad range of ZCE, ZCEF, and ZCEG series actuator heads
• Modular design allows actuator head replacement without disturbing wiring
• Compact profile: 0.8 inches height and 1 inch width for tight panel and machine installations

Compatibility

Designed for use with the following actuator heads: ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, and ZCEG1.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lockout/tagout the circuit before removing or installing the limit switch body. Ensure the selected actuator head is fully seated and secured to the body before returning the circuit to service. Do not exceed the rated electrical load of the assembled switch.
