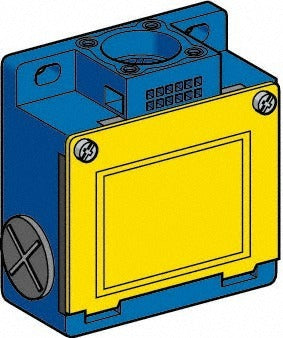

Telemecanique Sensors ZCKM1H7 Limit Switch Body

Product Description

The TELEMECANIQUE SENSORS ZCKM1H7 is a metal-body limit switch body measuring 3.7 inches in length. It serves as the mechanical and electrical housing that accepts a compatible limit switch head to complete a limit switch assembly. Limit switch bodies like the ZCKM1H7 are used in industrial control systems to detect the presence, position, or travel limits of moving machine components. The metal construction provides durability in demanding environments. Licensed electricians and industrial maintenance technicians are the primary installers of this component in machine tool, conveyor, and automated equipment applications.

The ZCKM1H7 is designed for industrial applications where reliable position sensing is required. It is suited for use in manufacturing facilities, material handling systems, and automated machinery where a rugged metal-body limit switch assembly is needed. This body accepts a range of compatible ZCKD-series limit switch heads, making it adaptable to various actuation styles and mounting configurations within a single installation.

Key Features

• Metal body construction for durability in industrial environments
• Overall length of 3.7 inches for compact panel and machine mounting
• Compatible with a broad range of ZCKD-series limit switch heads
• Accepts modular head and body assembly design for flexible configuration
• Width and height of 2.52 inches each for consistent dimensional fitment

Compatibility

Designed for use with the following ZCKD-series limit switch heads: ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, and ZCKD91.

Installation Notes

Installation should be performed by a qualified electrician or industrial maintenance technician in accordance with applicable NEC requirements and local codes. De-energize all circuits and follow lockout/tagout procedures before servicing or replacing any limit switch component. Verify that the selected ZCKD-series head is fully seated and secured to the body before restoring power. Inspect conduit entries and body seals for proper seating to maintain the enclosure integrity of the assembly.
