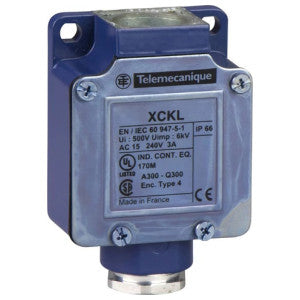

Telemecanique Sensors ZCKL1 Limit Switch Body Snap Double Brk 1NO/NC

Product Description

The Telemecanique Sensors ZCKL1 is a limit switch body designed for various industrial applications. This model operates within a temperature range of negative twenty-five to seventy degrees Celsius.

• Features one normally closed (NC) and one normally open (NO) contact.
• Includes one tapped entry for a Pg 13.5 cable gland.
• Rated for a maximum of ten Amperes at three hundred Volts continued use.

Product Highlights

The ZCKL1 is suitable for standard environments and comes with an IP66 rating, ensuring reliable operation even in harsh conditions.

Product Information

Standard Information

• Brand: Telemecanique Sensors
• Part Number: ZCKL1

Technical Specifications

• Operating Temperature: -25 to 70 °C
• Contact Configuration: 1 NC + 1 NO
• Current Rating: 10 A
• Voltage Rating: 300 V (CSA, UL), 500 V (IEC)
• Standards Compliance: IEC, UL Listed, CSA
• Ingress Protection: IP66
• Country of Origin: FR - France
• ECCN: EAR99
