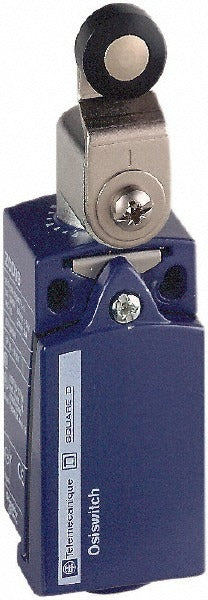

Telemecanique Sensors ZCE01 Limit Switch Head 3.7 in

Product Description

The TELEMECANIQUE SENSORS ZCE01 is a replacement limit switch head designed for use with ZCK series limit switch bodies. At 3.7 inches in overall length, this switch head mounts to compatible ZCK bodies to complete a functional limit switch assembly used in machine control, conveyor systems, and industrial automation applications. The ZCE01 weighs 0.09 pounds and measures 3.7 inches long by 1.9 inches high by 1.8 inches wide. Licensed electricians and industrial maintenance technicians install this component as part of position-sensing and end-of-travel detection setups on automated equipment.

The ZCE01 limit switch head is suited for industrial control panel and machine tool applications where a ZCK-series limit switch body is already installed or being replaced. It is commonly used in manufacturing facilities, packaging lines, and material handling equipment. The head pairs with a ZCK limit switch body to form a complete sensing unit that detects mechanical position or motion in low-voltage control circuits.

Key Features

• Overall length of 3.7 inches for compatibility with ZCK series limit switch bodies
• Compact profile at 1.9 inches high and 1.8 inches wide for tight panel or machine mounting
• Lightweight at 0.09 pounds for easy handling during installation or replacement
• Sold individually — minimum order quantity of 1
• Direct OEM-style replacement head for ZCK limit switch assemblies

Compatibility

The ZCE01 is specified for use with the following ZCK and ZCMD series bodies: ZCD21, ZCD21M12, ZCD25, ZCD26, ZCD27, ZCD28, ZCD29, ZCD29M12, ZCD31, ZCD35, ZCD37, ZCD39, ZCMD21C12, ZCMD21L08R12, ZCMD21L08U78, ZCMD21L1, ZCMD21L2, ZCMD21L5, ZCMD21M12, ZCMD25L1, ZCMD25L2, ZCMD25L5, ZCMD29C12, ZCMD29L1, ZCMD29L2, ZCMD29L5, ZCMD37L1, and ZCMD.

Installation Notes

Installation of this limit switch head should be performed by a qualified electrician or trained maintenance technician. De-energize all circuits and lock out the machine before removing or installing limit switch components, following NFPA 70E lockout/tagout procedures. Ensure the selected switch body from the ZCK series is fully compatible before assembly. Do not force or overtighten the head onto the body, as doing so may damage the actuator mechanism or affect switching accuracy.
