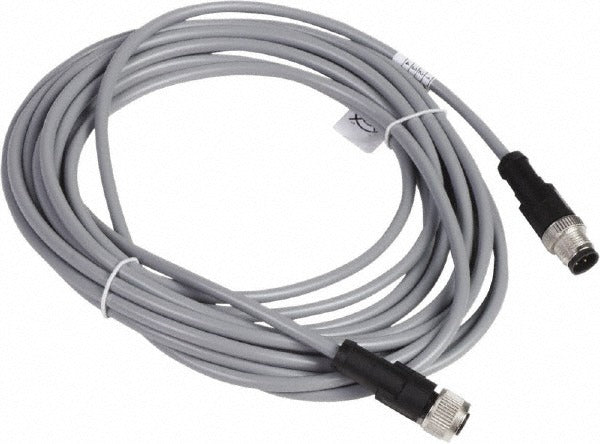

Telemecanique Sensors XZCRV1511041C5 M12 Jumper Cable

Product Description

The TELEMECANIQUE SENSORS XZCRV1511041C5 is an M12 jumper cable assembly used to connect sensors and receptacles in industrial control and automation wiring applications. The cable features an M12 4-pin male straight connector on one end and an M12 4-pin female straight connector on the other, providing a ready-to-install, plug-and-play interconnect solution. Rated for 3 amps at up to 250 VAC or 300 VDC, the assembly is built for reliable signal and low-voltage power transmission between sensors and control equipment. The 5-meter cable length suits a wide range of sensor-to-panel distances without field splicing.

This jumper cable is suited for industrial, commercial, and light manufacturing environments where M12 quick-disconnect wiring is standard. Typical applications include proximity sensor hookups, photoelectric sensor wiring, and general-purpose sensor-to-controller runs on machine tool, conveyor, and process control systems. The IP65 ingress rating makes the assembly appropriate for installations exposed to dust or directed water spray, such as wash-down adjacent areas or outdoor enclosures. It is installed by electricians, controls technicians, and automation system integrators.

Key Features

• M12 4-pin male straight connector on End 1, M12 4-pin female straight connector on End 2 for direct inline extension or sensor connection
• 3-amp current rating supports typical low-voltage sensor and actuator loads
• Rated to 250 VAC and 300 VDC for compatibility with common industrial control voltages
• 5-meter cable length reduces the need for field splicing or additional extension cables
• IP65 ingress protection rating guards against dust ingress and low-pressure water spray
• Pre-assembled plug-and-play design speeds up installation and reduces wiring errors

Compatibility

Designed as a standard M12 4-pin quick-disconnect jumper cable for use with sensors, receptacles, and control components that accept M12 male or female straight connectors.

Installation Notes

Installation is typically performed by licensed electricians or qualified controls technicians following applicable NEC guidelines for low-voltage control wiring. De-energize all associated control circuits before connecting or disconnecting the cable assembly. Verify that the mating connector gender, pin count, and keying match the sensor and receptacle before applying power. Do not exceed the rated amperage or voltage of the assembly, and inspect connector threads for damage before tightening to avoid compromising the IP65 seal.
