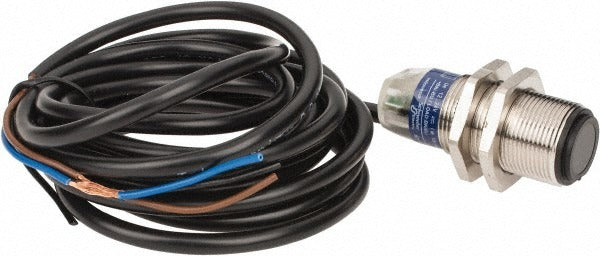

Telemecanique Sensors XUB2BPANL2R Photoelectric Sensor

Product Description

The TELEMECANIQUE SENSORS XUB2BPANL2R is a through-beam photoelectric sensor built for industrial detection applications where reliability under harsh conditions is critical. Housed in a cylindrical nickel-plated brass body, it operates on 12 to 24 VDC and delivers a maximum nominal sensing distance of 15 meters. The PNP output circuit type makes it compatible with standard sourcing input modules. Rated IP65 and IP67, it resists dust ingress and water immersion, and is independently certified as both shock-resistant and vibration-resistant per IEC 60068-2-27 and IEC 60068-2-6. The unit ships with a 2.0-meter cable connector for direct wiring to a control panel or junction box.

This sensor is suited for through-beam detection setups in manufacturing, conveyor, and automated assembly environments where a separate emitter and receiver are aligned across a detection path. The compact cylindrical form factor — 1.81 inches long by 0.71 inches wide — allows installation in tight mounting brackets or sensor rails. It operates across a temperature range of -13.0 degrees F to 131.0 degrees F, making it appropriate for both indoor controlled environments and unheated industrial spaces. Licensed electricians and automation technicians are the primary installers for this class of device.

Key Features

• Through-beam sensing with 15-meter maximum nominal sensing distance
• PNP output circuit for sourcing input compatibility
• IP65 and IP67 dual ingress protection rating
• Shock-resistant and vibration-resistant per IEC 60068-2-27 and IEC 60068-2-6
• Nickel-plated brass cylindrical housing for durability in industrial environments
• 500 Hz switching frequency supports high-speed detection applications
• Includes 2.0-meter cable connector for flexible field wiring

Compatibility

Designed as an OEM-style through-beam photoelectric sensor for use in industrial automation and detection systems requiring a PNP output and cylindrical M18-style mounting.

Installation Notes

Installation should be performed by a qualified electrician or automation technician in accordance with applicable NEC requirements and the equipment manufacturer guidelines. Disconnect and lock out all power to the control circuit before wiring the sensor output leads. Align the emitter and receiver units along a common optical axis to ensure reliable beam detection. Avoid overtightening the mounting hardware on the brass housing to prevent thread damage.
