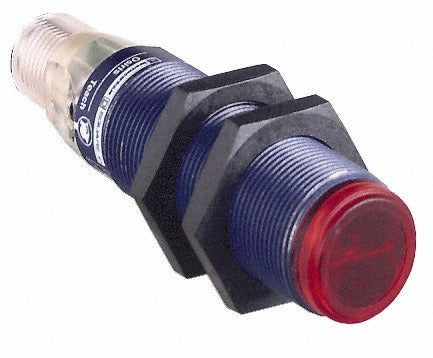

Telemecanique Sensors XUB0APSNM12 Photoelectric Sensor

Product Description

The TELEMECANIQUE SENSORS XUB0APSNM12 is a cylindrical multimode photoelectric sensor designed for industrial detection applications. It operates on 12 to 24 volts DC and delivers a maximum nominal sensing distance of 20 meters using a PNP output circuit. The housing is constructed from PBT thermoplastic and carries IP65, IP67, and IP69K ingress protection ratings, making it suitable for wet, dusty, or washdown environments. A switching frequency of 250 Hz supports high-speed detection cycles. Licensed electricians and automation technicians are the typical installers for this class of sensor.

The XUB0APSNM12 is intended for use in industrial automation and process control settings where reliable non-contact object detection is required. Its compact cylindrical body measures 78mm in length and 18mm in width, fitting standard sensor mounting brackets. The sensor is rated for the OsiSense XU product family and performs across an operating temperature range of -13 degrees F to 131 degrees F, covering most indoor industrial and light outdoor applications. It is appropriate for both new installations and direct replacement scenarios on existing machine lines.

Key Features

• 20-meter maximum nominal sensing distance for long-range detection
• PNP output circuit compatible with standard industrial PLC inputs
• IP65, IP67, and IP69K rated for dust-tight and high-pressure washdown resistance
• Shock-resistant and vibration-resistant construction for demanding machine environments
• 250 Hz switching frequency supports high-speed detection cycles
• 4-pin M12 connector for quick-disconnect wiring integration

Compatibility

Designed for use with the OsiSense XU sensor family. Consult the manufacturer documentation to confirm fitment with specific machine configurations before installation.

Installation Notes

Installation should be performed by a qualified electrician or automation technician familiar with low-voltage DC sensor wiring and machine safety practices. Power down the control circuit and verify zero voltage at the connector before wiring. Secure the sensor body in a standard 18mm cylindrical mounting clamp and torque to the bracket manufacturer specification. Reference applicable NEC or local electrical codes for control wiring requirements in industrial installations.
