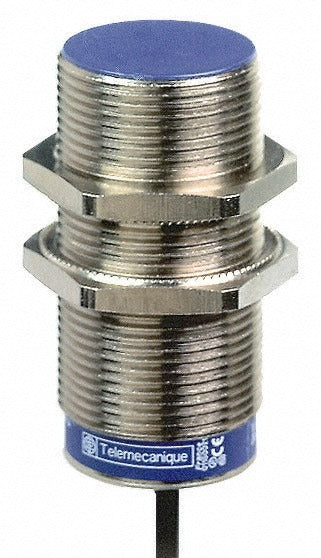

Telemecanique Sensors XS630B1MAL2 Proximity Sensor M30

Product Description

The TELEMECANIQUE SENSORS XS630B1MAL2 is a shielded cylindrical inductive proximity sensor designed for reliable non-contact detection of metal targets in industrial environments. Built into an M30 brass housing, it delivers a 0.59-inch (15 mm) detection distance and operates across a wide voltage range of 24 to 240 volts AC/DC, making it adaptable to a broad range of control circuits. The two-wire, normally open (NO) output simplifies wiring, while a 500 Hz response frequency supports high-speed detection applications. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

This sensor is suited for use in factory automation, machine guarding, conveyor systems, and other industrial applications where a compact M30 form factor is required. Its IP68 and IP69K ingress protection ratings make it appropriate for wet, washdown, or high-pressure cleaning environments. The shock-resistant and vibration-resistant construction supports reliable operation on machinery subject to mechanical stress. It is rated for operating temperatures from -13 degrees F to 158 degrees F, covering typical indoor and light outdoor industrial conditions.

Key Features

• 0.59-inch (15 mm) detection distance with M30x1.5 threaded brass housing
• Wide voltage range: 24 to 240 volts AC/DC for broad circuit compatibility
• Two-wire NO output simplifies installation in existing control loops
• 500 Hz response frequency suitable for high-cycle detection tasks
• IP68 and IP69K rated for submersion and high-pressure washdown environments
• Shock-resistant and vibration-resistant construction for demanding machinery
• Certified to CE, CSA, UL, RoHS, IEC 60529, IEC 60068-2-27, and IEC 60068-2-6

Compatibility

Designed as an OEM-style replacement or direct-fit inductive proximity sensor for industrial control systems requiring an M30 shielded cylindrical sensor with two-wire NO output and cable connection.

Installation Notes

Installation should be performed by a licensed electrician or qualified industrial controls technician. Disconnect and lock out all power to the control circuit before wiring or mounting. The M30x1.5 threaded body mounts into a standard panel or bracket hole; use appropriate hardware to secure against vibration. Follow applicable NEC guidelines and local electrical codes when integrating into control panels or machine wiring.
