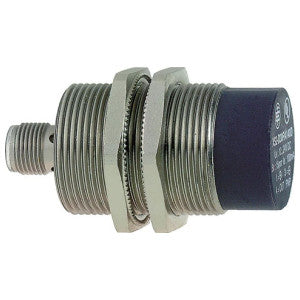

Telemecanique Sensors XS2M30MA250K Inductive Sensor XS2 M30 - L75mm - brass - Sn15mm - 24..240VAC/DC - 1/2

Product Description

The Telemecanique Sensors XS2M30MA250K is an inductive sensor designed for non-contact detection of metal objects. This sensor features a cylindrical design and is suitable for industrial applications. It offers a sensing distance of fifteen millimeters and operates on a voltage range of twenty-four to two hundred and forty volts AC or DC.

• Flush mountable cylindrical sensor.
• Nickel plated brass case for durability.
• Requires a two-wire connection.

Product Highlights

This inductive sensor is ideal for environments where physical contact detection is impractical. It provides a high response rate and is fully encapsulated for protection against harsh conditions.

Product Information

Standard Information

• Brand: Telemecanique Sensors
• Part Number: 95039861

Technical Specifications

• Diameter: 30mm
• Thread Size: M30 x 1.5
• Connector Type: 1/2-20UNF
• Temperature Rating: -25 to 70 °C
• ECCN: EAR99
• Country of Origin: FR - France
• UNSPSC: 39122230
