Telemecanique Sensors XCSDMR790L01M12 Preventa XCSD Series Safety Interlock Switch Plastic/PVC 24V DC 100 mA 1.18 in. Dia. 150 Hz Red 1.54 in. L

Product Description

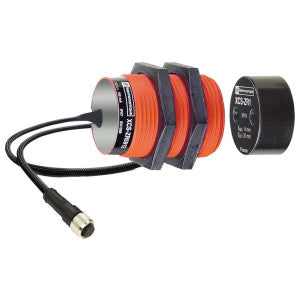

The Telemecanique Sensors XCSDMR790L01M12 is a safety interlock switch designed for use in industrial control applications. This cylindrical coded magnetic switch has a size of 1.18 inches in diameter and 1.54 inches in length. It operates on 24V DC with a current rating of 100 mA, suitable for various safety applications.

• Cylindrical design for space-efficient installation
• Compatible with PVC material for durable applications
• Assured operating distance of 0.31 inches and assured tripping distance of 0.79 inches

Product Highlights

This device meets industry standards for safety and reliability. It is designed for one-directional approach and features a rated insulation voltage of 100V DC.

Product Information

Standard Information

• Brand: Telemecanique Sensors
• Part Number: 25560861
• Min Order Quantity: 1
• Availability: Out of Stock

Technical Specifications

• Diameter: 1.18 in.
• Length: 1.54 in.
• Amperage Rating: 100A
• Contact Operation: 2NC
• Country of Origin: FR - France
• ECCN: EAR99
• Series: Preventa XCS
• UNSPSC: 39122213
