Telemecanique Sensors XCKL115H7 Limit Switch Spdt Nc

Product Description

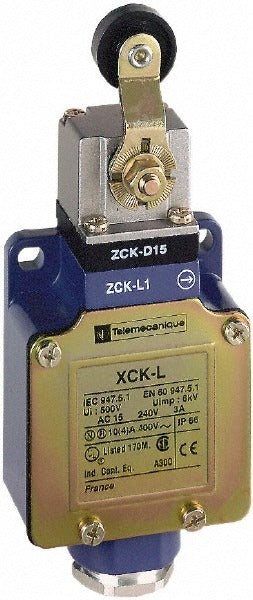

The TELEMECANIQUE SENSORS XCKL115H7 is a general purpose limit switch designed for industrial position sensing and machine control applications. It features a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration and a roller lever actuator mounted at the top of the unit. The metal body construction and IP66 ingress protection rating make it suitable for demanding industrial environments where exposure to dust, debris, and water jets is a concern. Screw terminals with a 1/2 inch NPT conduit connection simplify field wiring. The unit weighs 1.38 pounds and meets a broad set of safety and performance standards including UL Listed and RoHS Compliant.

This limit switch is used in industrial machinery, conveyor systems, automated equipment, and process control panels where reliable position or end-of-travel detection is required. The top-mounted roller lever actuator suits applications where the actuating force approaches from below or at an angle. NEMA ratings of 1, 2, 4, 6, 6P, 12, and 13 cover a wide range of enclosure environments from general indoor use to submersible and oil-tight installations. Operating temperature range spans -13 degrees F to 158 degrees F, supporting both cold storage and elevated-temperature industrial settings.

Key Features

• SPDT contact form with normally closed (NC) configuration for fail-safe position detection
• Top-mounted roller lever actuator for flexible installation orientation
• Metal body construction rated IP66 for dust-tight and high-pressure water jet resistance
• NEMA 1, 2, 4, 6, 6P, 12, and 13 ratings for broad environmental compatibility
• 1/2 inch NPT conduit entry with screw terminal wiring for straightforward field connections
• Compliant with UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and RoHS requirements

Compatibility

Designed as an OEM-style replacement or new-installation limit switch for industrial control panels and machine tool applications requiring a top roller lever actuator, SPDT NC contacts, and 1/2 inch NPT conduit entry.

Installation Notes

Installation should be performed by a qualified electrician or industrial controls technician in accordance with NEC requirements and the equipment manufacturer's wiring diagrams. De-energize and lock out the machine or panel before mounting or wiring the switch. Ensure the conduit fitting and screw terminal connections are properly torqued per standard practice to maintain the IP66 and NEMA 6P sealing ratings. Verify actuator alignment and travel to avoid overtravel damage to the roller lever mechanism.
