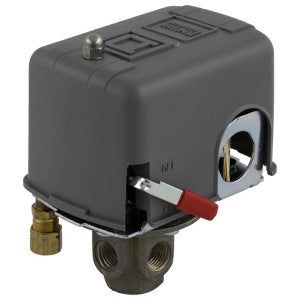

Telemecanique Sensors 9013FHG34J52M1X Square D PumptrolAir Compressor Switch 125 PSI High HP

Product Description

The Telemecanique Sensors 9013FHG34J52M1X is a compressor switch designed for industrial use. This switch is part of the Nema Pressure Switches range and is suitable for various applications. It features two normally closed, snap action, double pole single throw contacts with a fixed setting at 125 psi.

• Adjustable range: 70 psi to 150 psi
• Enclosure material: Polypropylene
• Suitable for monitoring water pumps and compressors

Product Highlights

This compressor switch is engineered for reliable performance in industrial environments, offering easy adjustments and robust construction for longevity.

Product Information

Standard Information

• Brand: Telemecanique Sensors
• Manufacturer: Telemecanique Sensors

Technical Specifications

• MPN: 9013FHG34J52M1X
• Pressure sensor size: 150 psi
• Fixed differential: Approximately 30 psi
• Terminal type: Screw clamp
• Flange size: 0.25 inch 4-way
• Dimensions: 3.1 inches (W) x 3.76 inches (D) x 4.45 inches (H)
• Weight: 1 lb
• Certifications: CE, CSA, UL
• IP Rating: IP20
