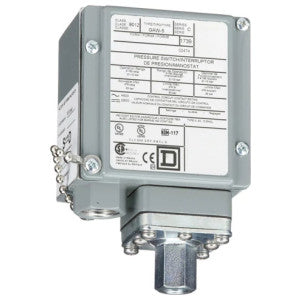

Telemecanique Sensors 9012GAW5 Pressure Switch Adjustable Scale SPDT 480 Vac 10A 2 Thresholds 3 to 150 psig

Product Description

The Telemecanique Sensors 9012GAW5 is a pressure switch designed for monitoring pressure in pneumatic or hydraulic systems. This SPDT switch operates at 10 amps and is rated for 480 volts AC. It features a decreasing pressure range of three to one hundred fifty pounds per square inch gauge (psig).

• Decreasing pressure range from 3 to 150 psig
• Adjustable differential of approximately 6.0 to 30 psig at mid-range
• Maximum allowable pressure of 475 psig

Product Highlights

This pressure switch is suitable for various industrial applications. It allows for precise pressure control and monitoring, essential for maintaining system integrity. The adjustable settings make it versatile for different operational needs.

Product Information

Standard Information

• Brand: Telemecanique Sensors
• Manufacturer: Telemecanique Sensors

Technical Specifications

• MPN: 9012GAW5
• Series: 9012G
• UNSPSC: 39122210
• Amperage Rating: 10A
• Switch Range: 3 to 150 psig (Decreasing Pressure)
• Contact Operation: SPDT
