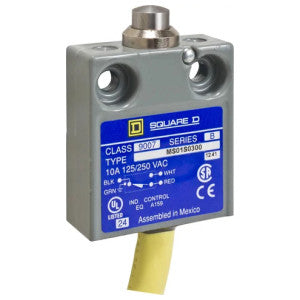

Telemecanique Sensors 9007MS01S0500 Miniature Potted Limit Switch 240Vac 10A 1NO/1NC Snap Action

Product Description

The Telemecanique Sensors 9007MS01S0500 is a miniature potted limit switch designed for operational reliability. This model operates at 240 Vac and a current of 10A. It features 1 normally open and 1 normally closed contact configuration, ideal for various industrial applications.

• Compatible with 240 Vac systems
• 10A current rating for robust electrical function
• Includes an 18-foot SJTO cable for easy installation

Product Highlights

This limit switch employs snap action technology, suitable for both automation and safety applications. The vertical plunger spring return mechanism ensures quick response, enhancing functionality in machinery control.

Product Information

Standard Information

• Brand: Telemecanique Sensors
• Part Number: 9007MS01S0500

Technical Specifications

• Operating Voltage: 240 Vac
• Current Rating: 10A
• Contact Configuration: 1NO/1NC
• Dimensions: 1.56 x 0.620 x 1.750 inches
• Operating Force: 80 oz
• Cable Length: 18 feet SJTO
• ECCN: EAR99
• UNSPSC: 39122213
