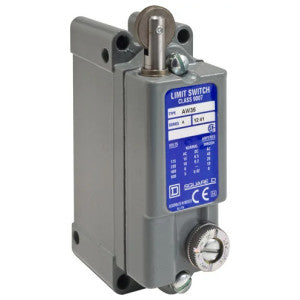

Telemecanique Sensors 9007AW36 HD Limit Switch Surface Mount Plug In 600 Vac 15A 1NO/1NC Roller Plunger Type with Micrometer Adjustment CCW Operation

Product Description

The Telemecanique Sensors 9007AW36 is a heavy-duty limit switch designed for industrial applications. It operates at six hundred volts alternating current and can handle up to fifteen amps. This surface mount plug-in switch features a roller plunger type with micrometer adjustment, allowing precise operation in a counterclockwise direction.

• Durable metal body
• NEMA rated for various environments
• Field convertible to clockwise operation

Product Highlights

This limit switch features oil-tight design, ensuring reliability in demanding environments.

Product Information

Standard Information

• Brand: Telemecanique Sensors
• Part Number: 9007AW36

Technical Specifications

• Voltage Rating: 600 Vac
• Current Rating: 15A
• Contact Configuration: 1NO/1NC
• Enclosure Rating: NEMA 1, 2, 4, 6, 6P, 12, 13
• Adjustment Type: Micrometer
• Operating Temperature: Low temperature operation
• ECCN: EAR99
• UNSPSC: 39122213
