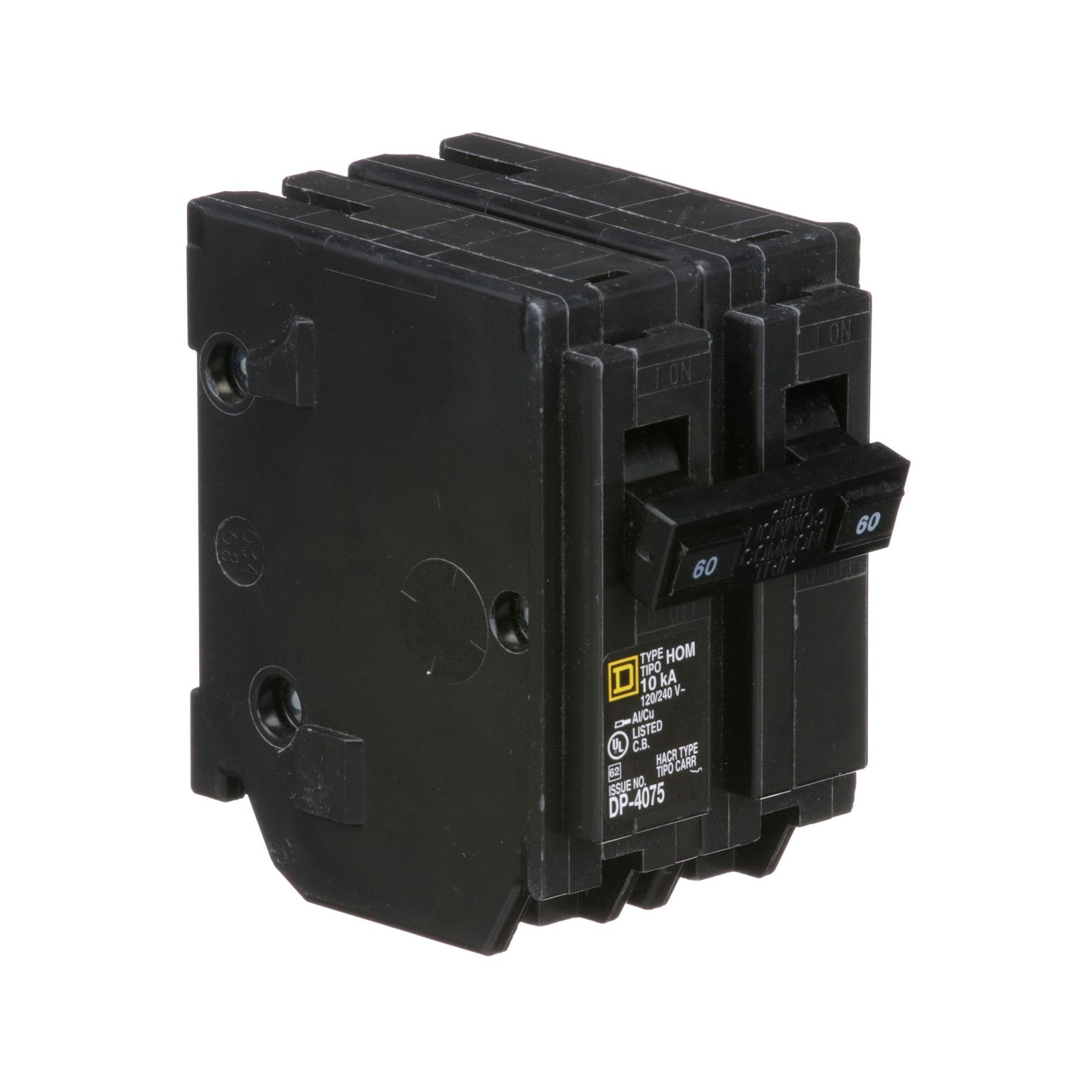

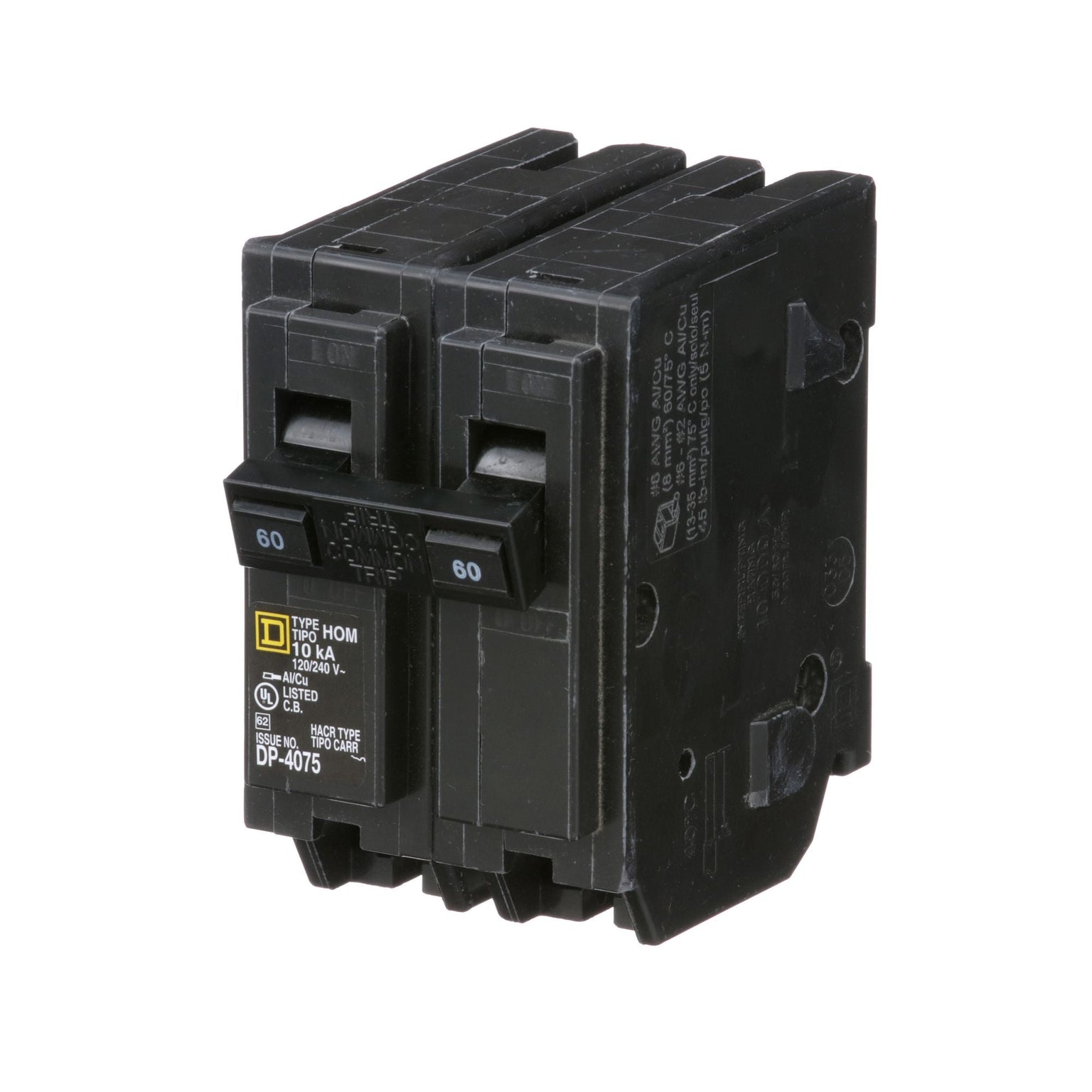

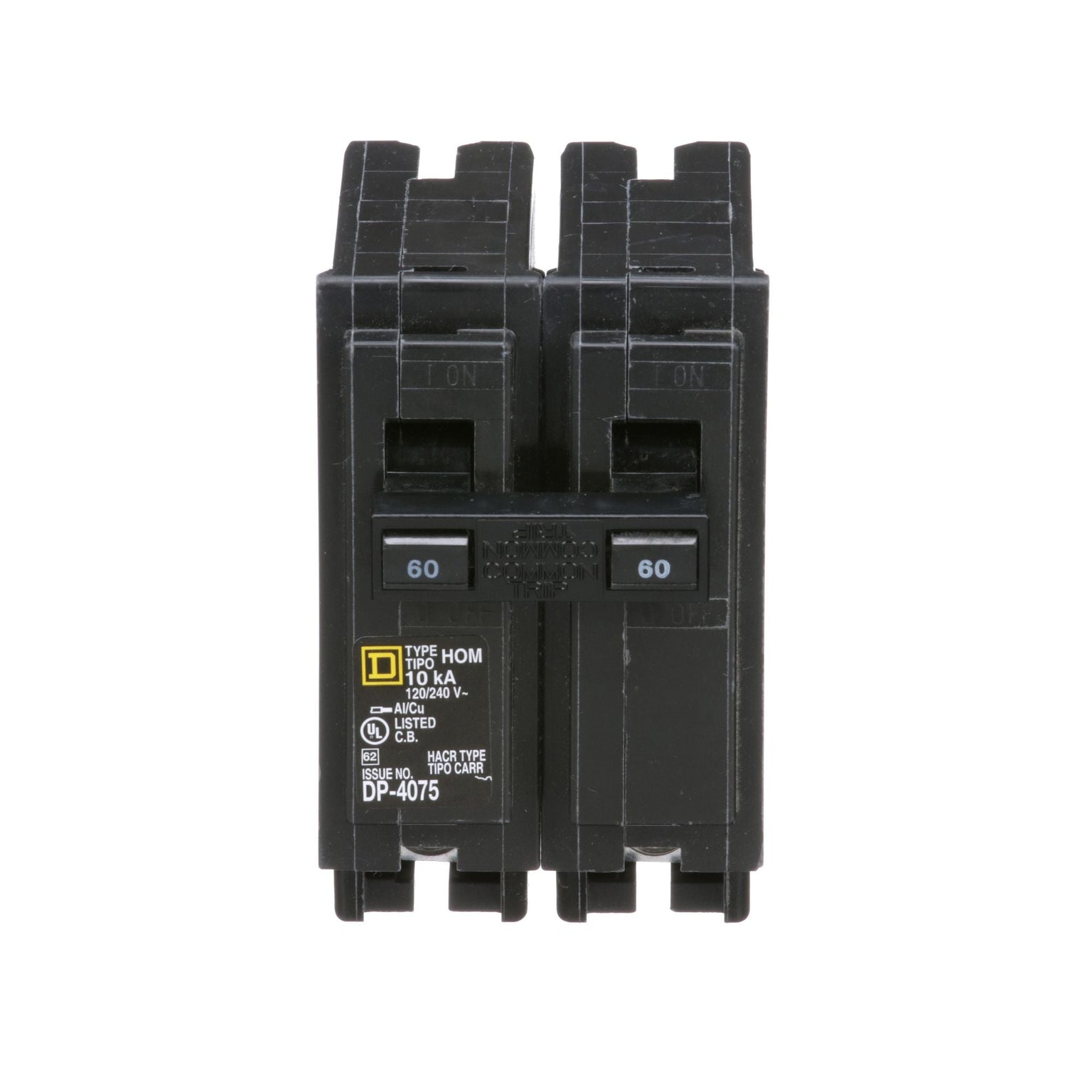

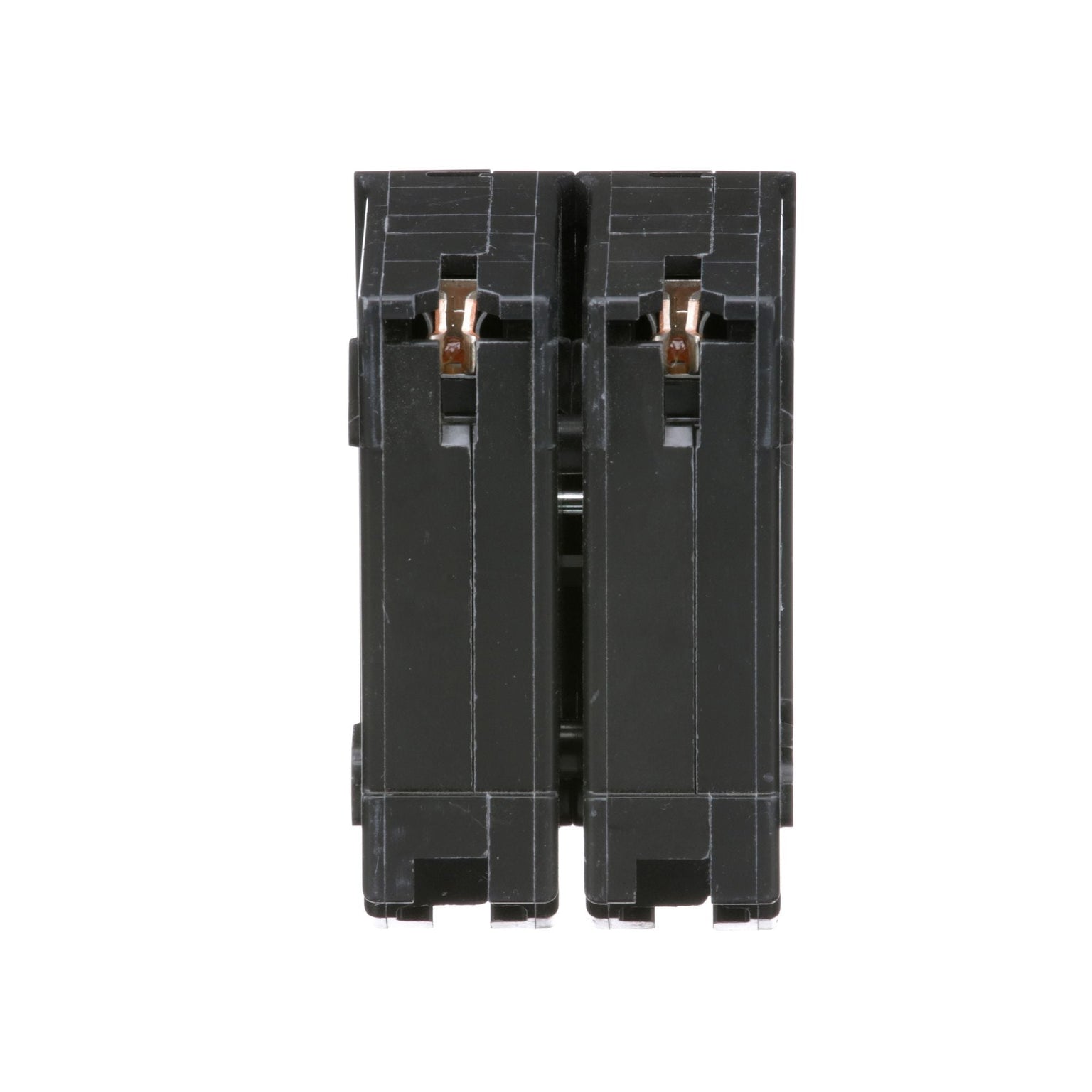

Telemecanique HOM260 Circuit Breaker 60A

Product Description

The Telemecanique HOM260 is a reliable circuit breaker designed for use in Homeline load centers. This two-pole miniature circuit breaker delivers standard thermal-magnetic protection, featuring both long-time and instantaneous trip functions. Rated for sixty amps at 120/240 VAC, it utilizes a plug-in connection that makes installation straightforward.

• Operates at 60A for residential and light commercial use.
• Compatible with copper or aluminum wire sizes between eight and two AWG.
• UL Listed and HACR rated for safety and performance.

Product Highlights

Ideal for protecting circuits in Homeline load centers, ensuring safety against overloads and short circuits.

Product Information

Standard Information

• Part Number: HOM260
• Brand: Telemecanique

Technical Specifications

• Poles: 2
• Amperage: 60 A
• Voltage: 120/240 VAC
• Phase: 1
• Type: HOM
• Functions: Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 10kA@240V
• Wire Size: 8 to 2 AWG (Copper/Aluminum)
• Mounting Type: Plug On
• Dimensions: 3 inches x 2 inches x 3 inches
