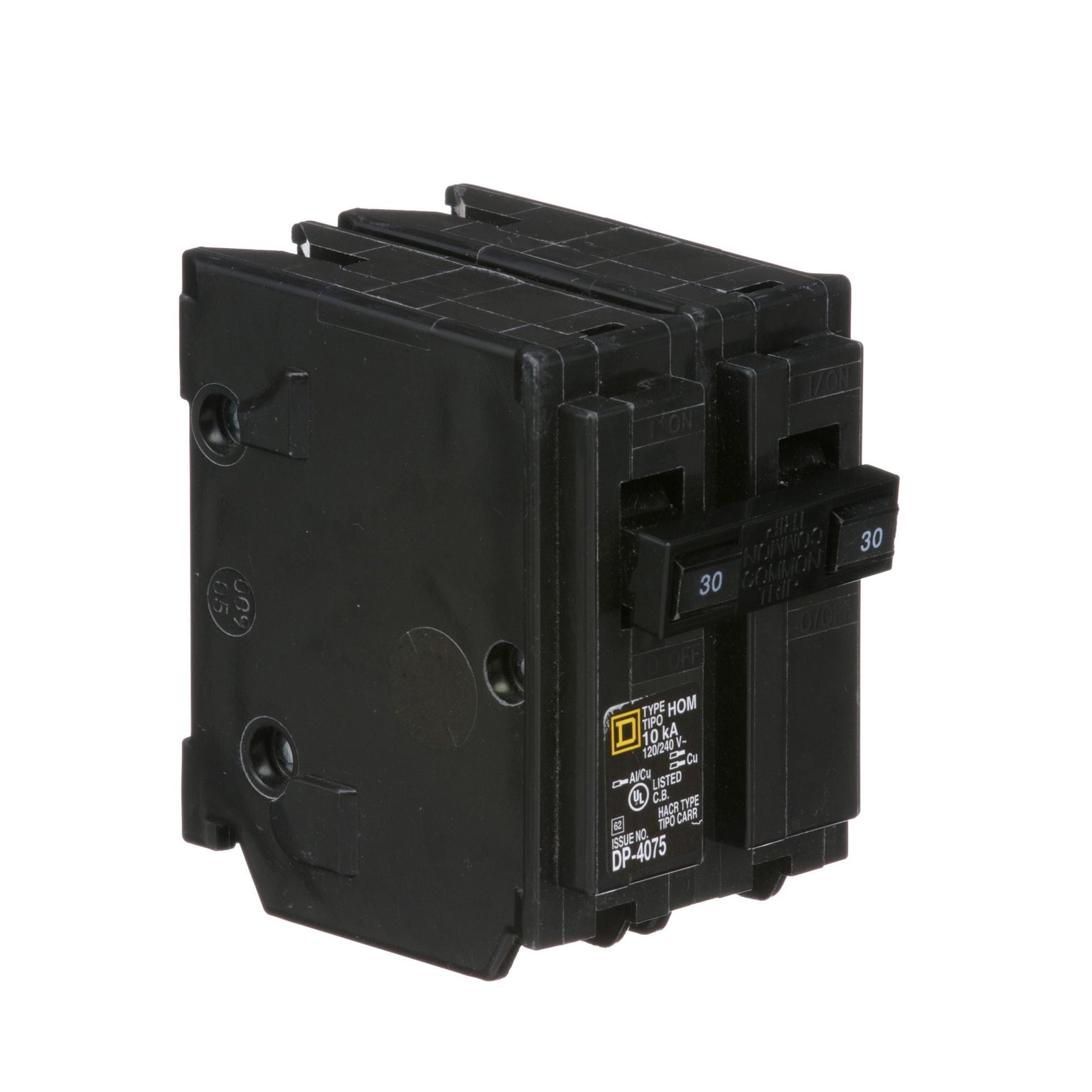

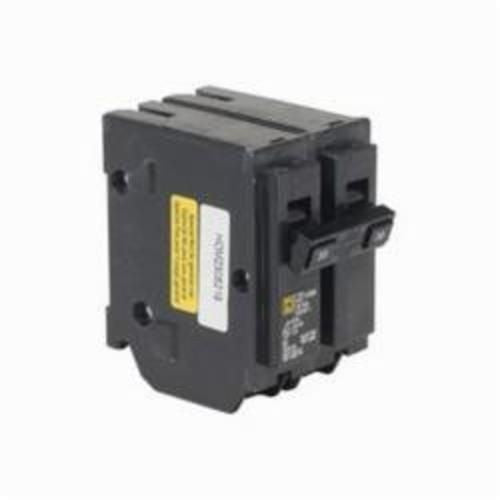

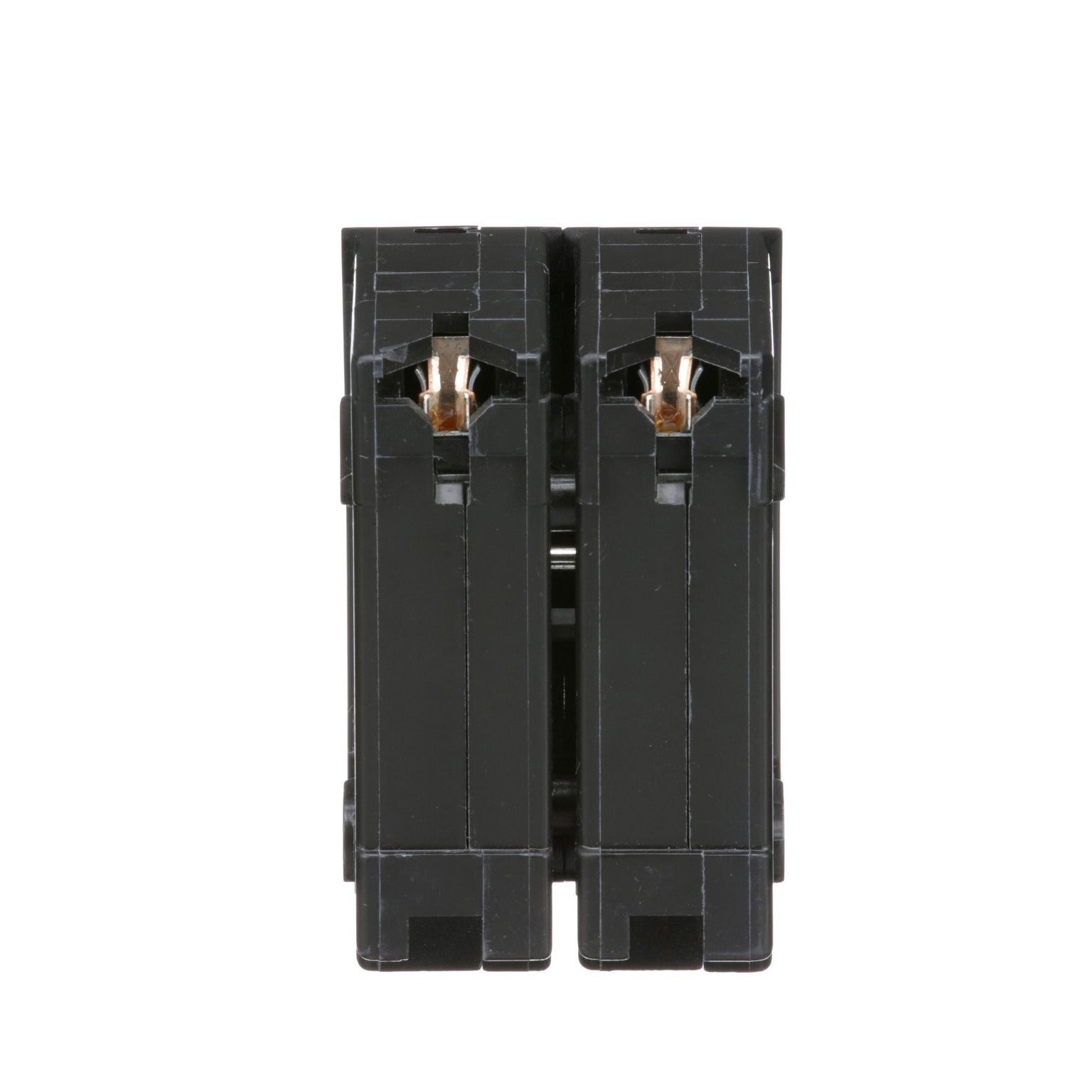

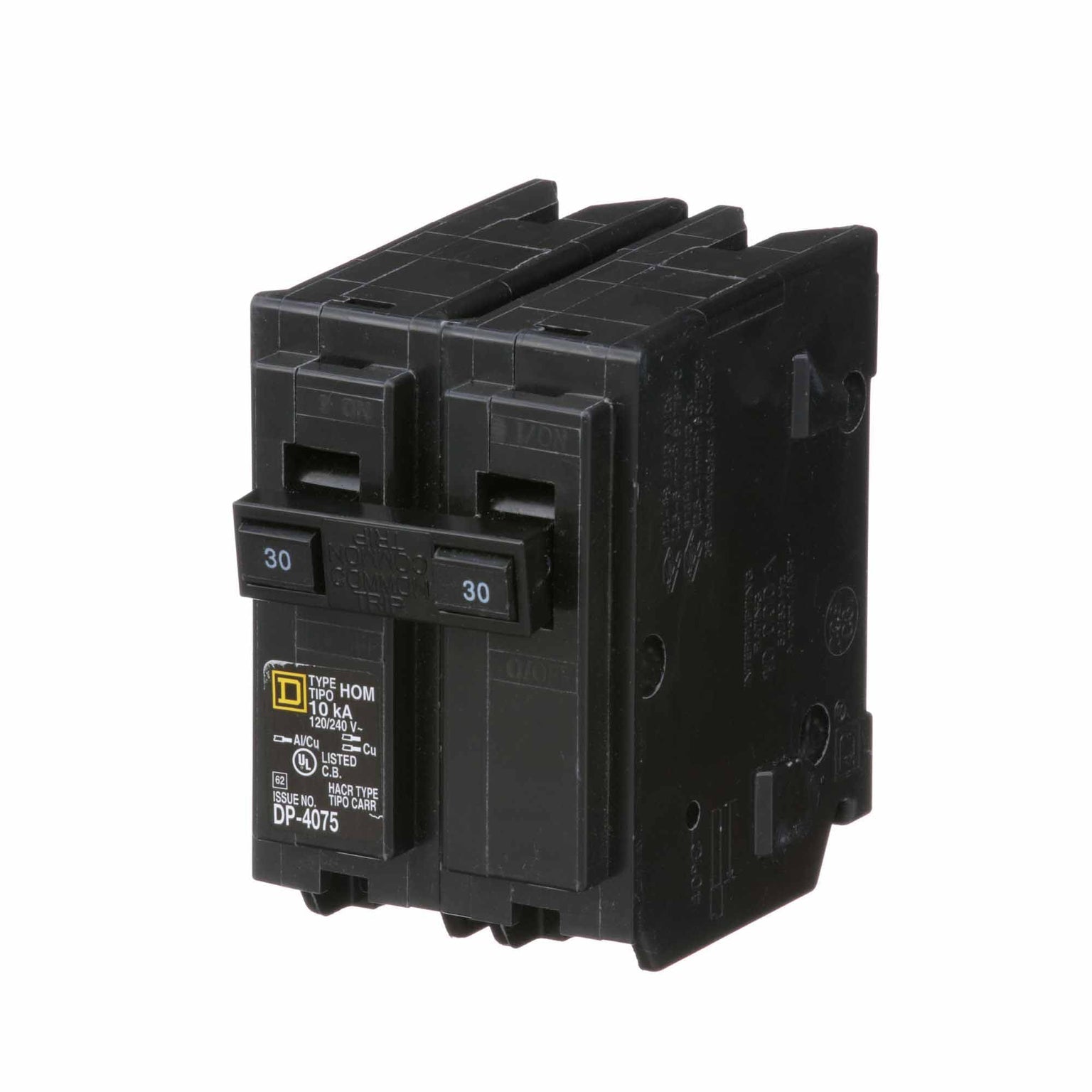

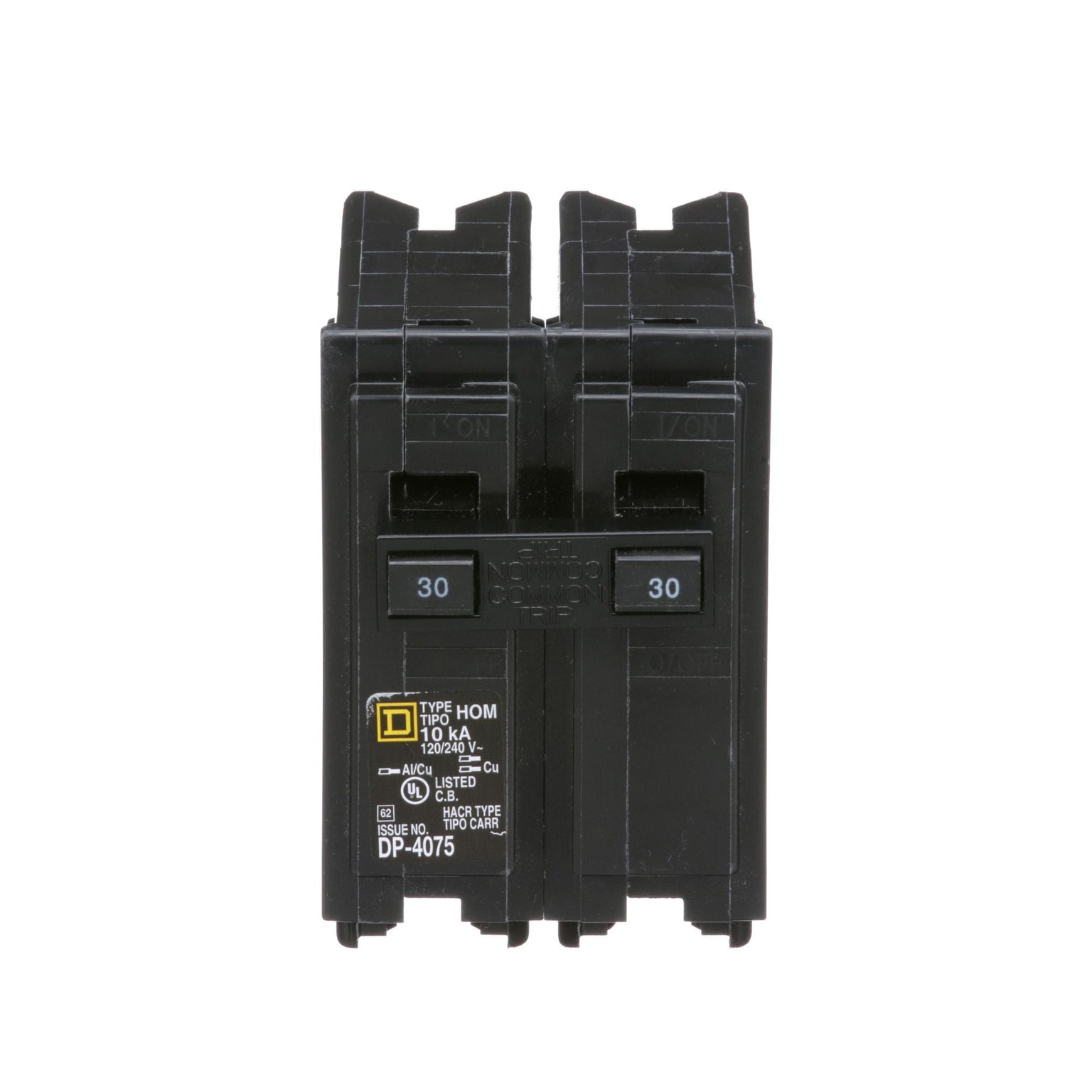

Telemecanique HOM230 Telemecanique Homeline Miniature Circuit Breaker 30A 120/240 VAC

Product Description

The Telemecanique HOM230 is a miniature circuit breaker designed for reliable circuit protection. This device operates as a 2-pole breaker, rated at 30A and suitable for both 120 and 240 VAC applications. It features a breaking capacity of 10 kA, providing optimal safety during overload and short circuit situations.

• Plug-in mounting type for easy installation.
• Rated for 30A at 120/240 VAC.
• Thermal magnetic trip for effective protection.

Product Highlights

The Telemecanique HOM230 is ideal for use in residential and light commercial applications where circuit protection is essential. Its thermal magnetic trip mechanism ensures that your circuits remain safe under overload or short circuit conditions.

Product Information

Standard Information

• Part Number: HOM230
• Manufacturer: Schneider Electric

Technical Specifications

• Type: HOM
• Weight: 0.7 lbs
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 10 kA
• Number Of Poles: 2
• Phase: 1
• Trip Type: Thermal Magnetic
• Voltage Rating: 120/240 VAC
• Wire Size: 14 to 8 AWG
• Application: Overload and short circuit protection
• Standard & Approvals: UL Listed
• Amperage Rating: 30 A
• Dimensions: 2.98 in L x 2 in W x 3.13 in H
• Mounting Type: Plug-In
