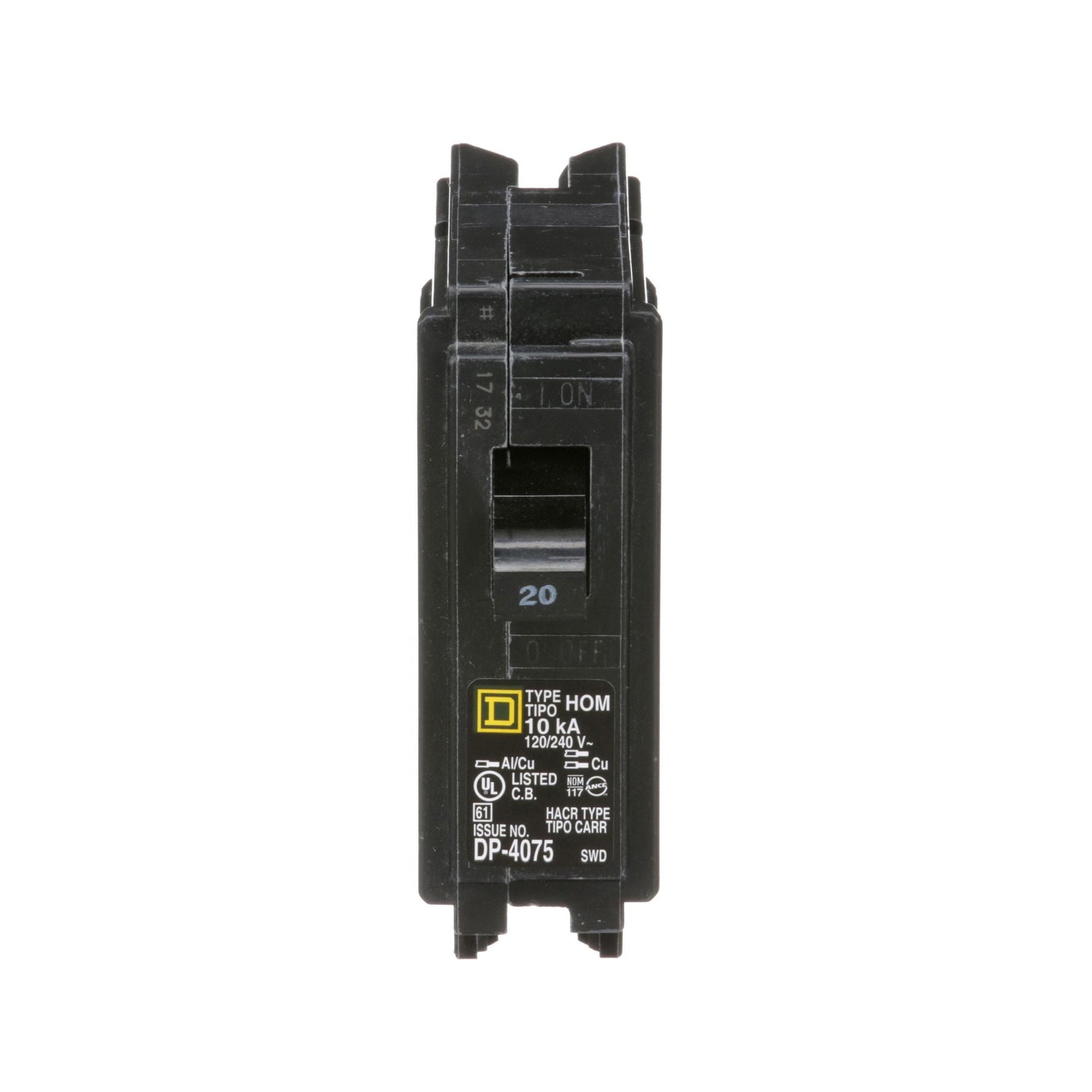

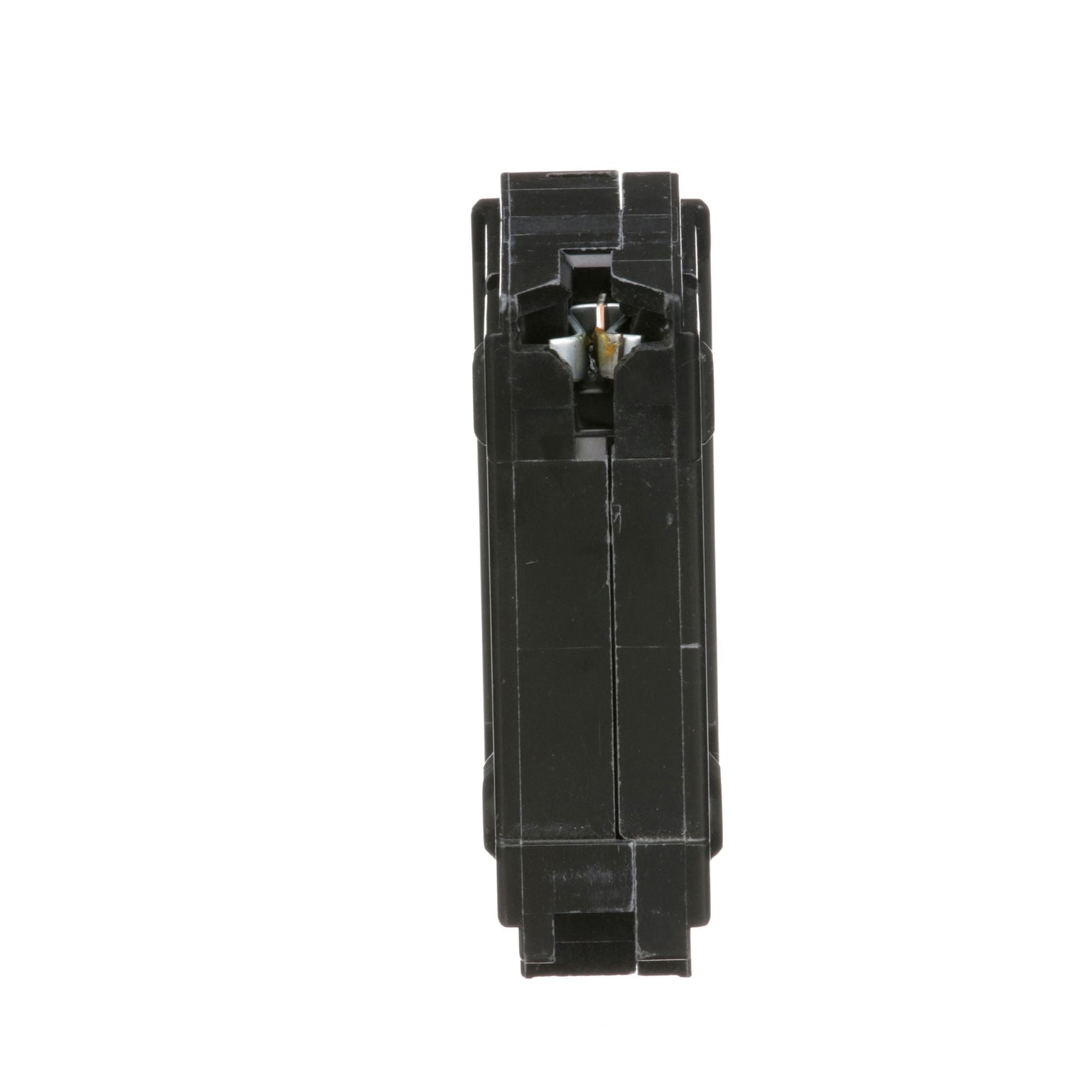

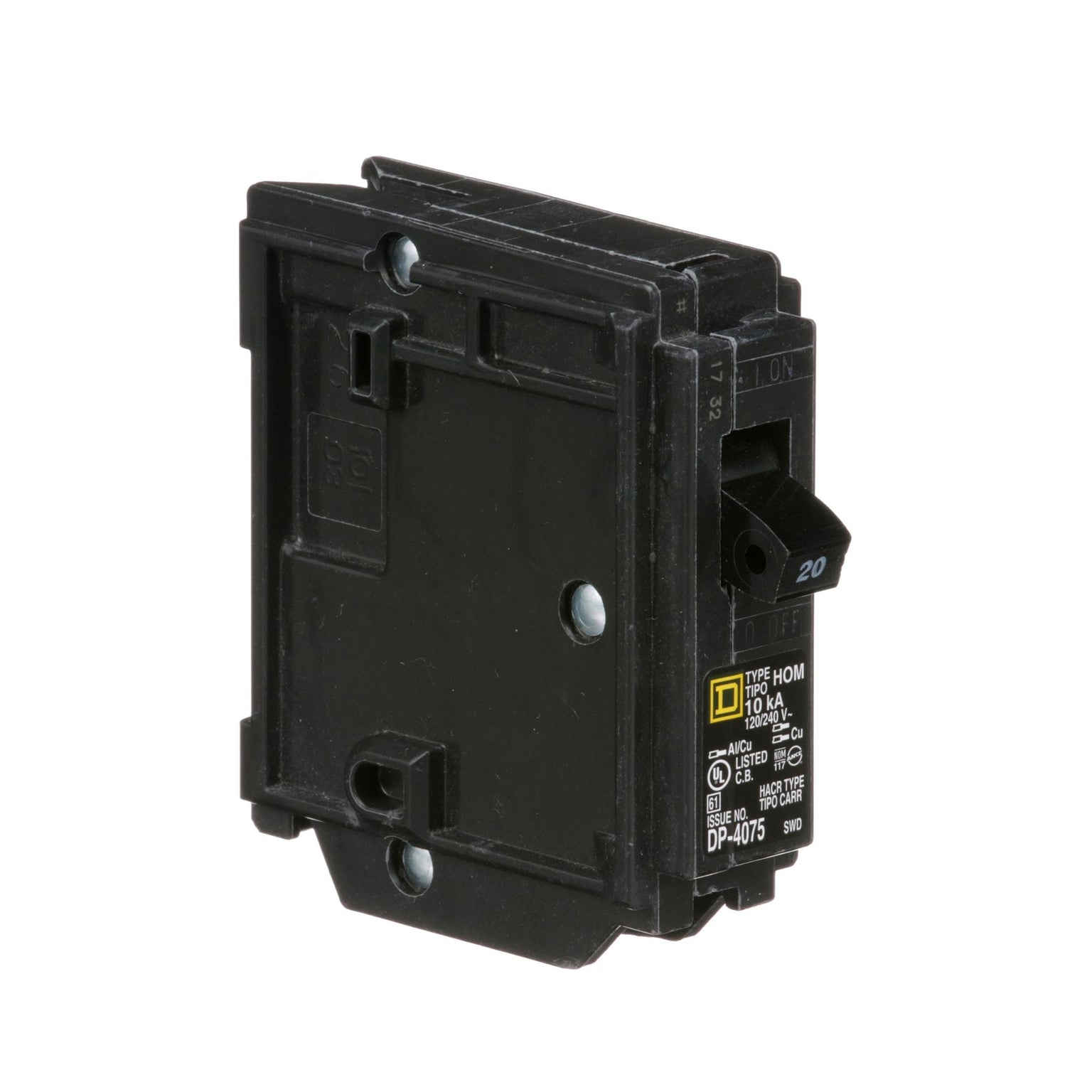

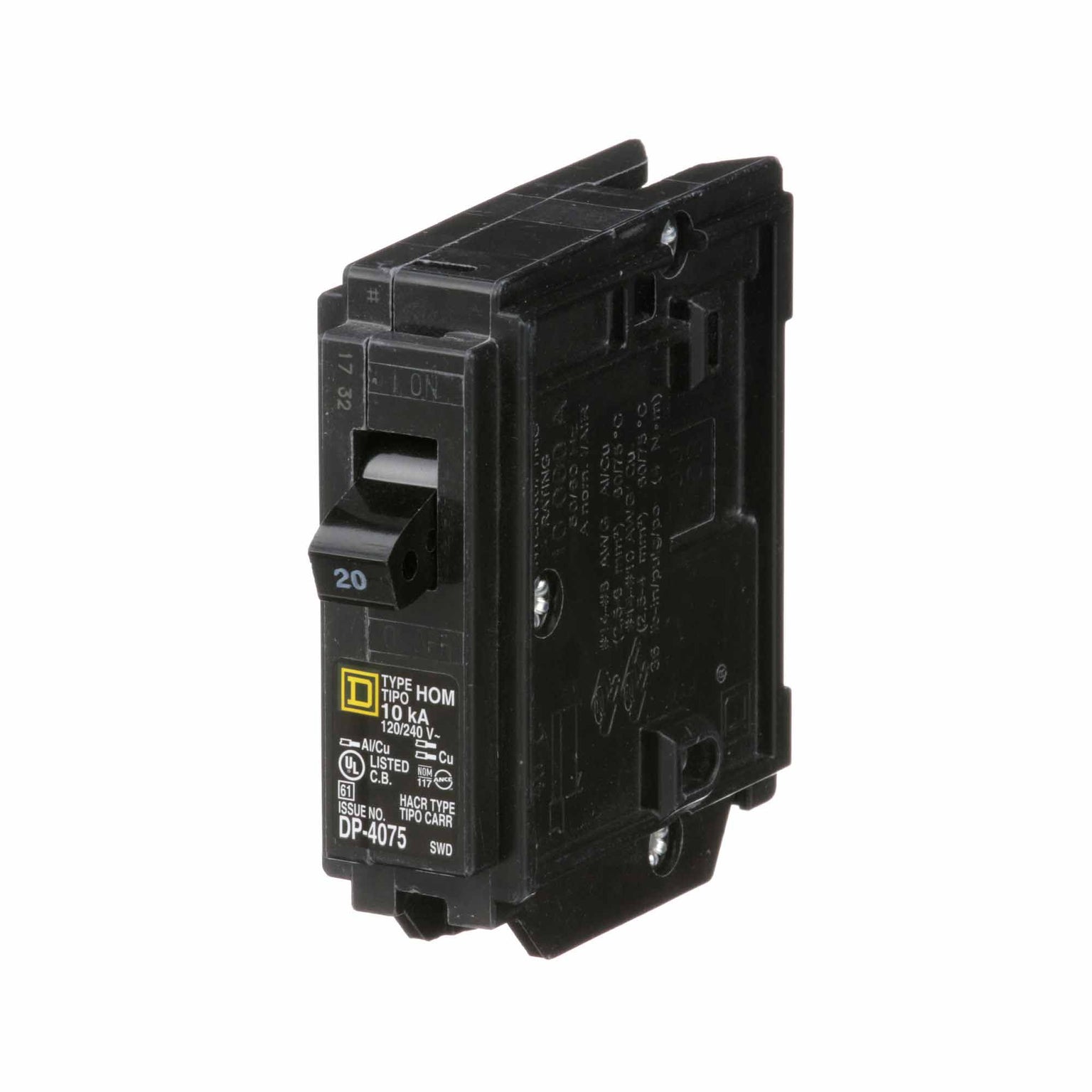

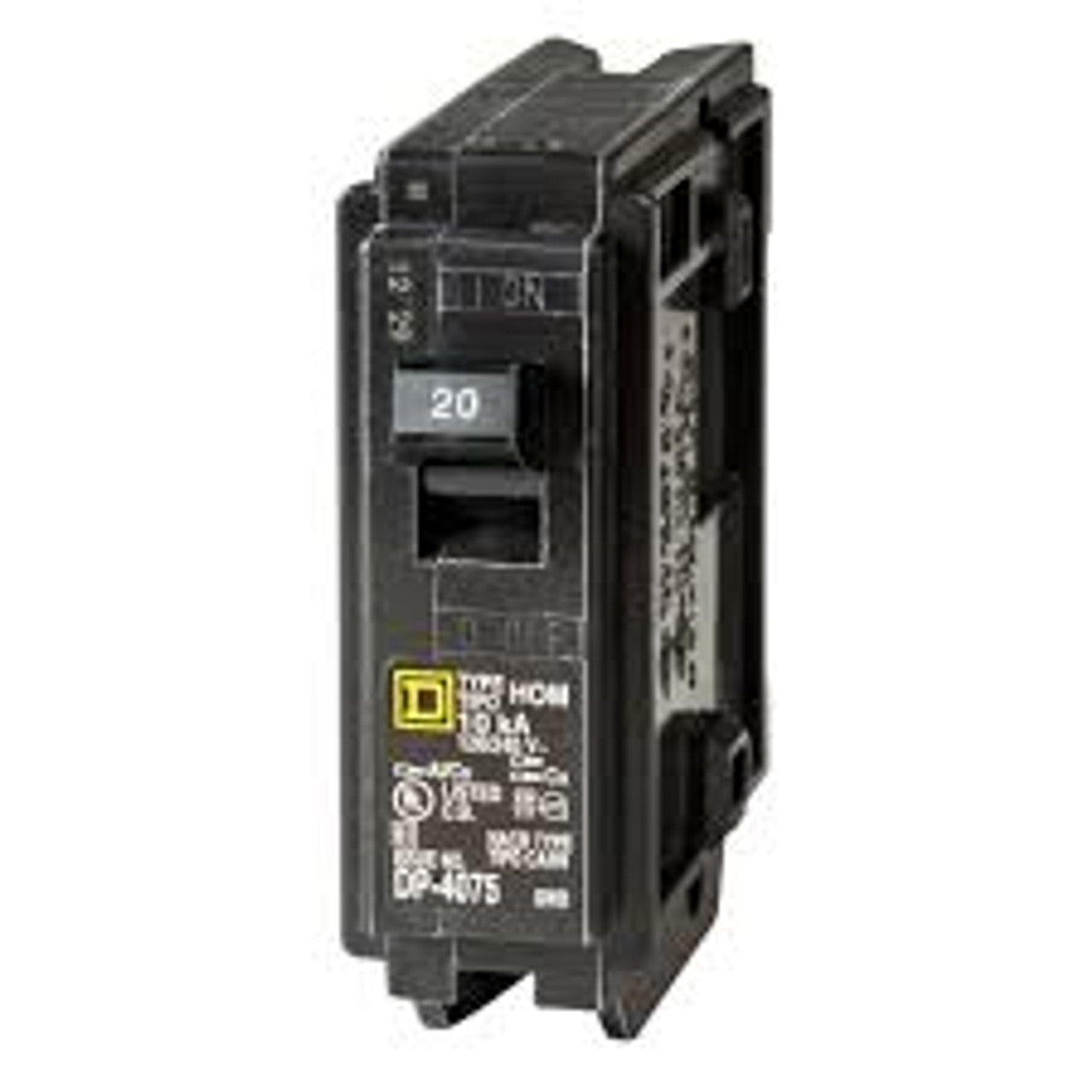

TELEMECANIQUE HOM120 Telemecanique HOM120 Homeline Circuit Breaker

Product Description

The Telemecanique HOM120 is a miniature circuit breaker designed for use in Homeline load centers. This one-pole circuit breaker is suitable for residential circuit protection. It has a secure plug-in connection and a clamp terminal that allows for the connection of two wires, supporting a wire range from fourteen AWG to eight AWG in both copper and aluminum materials.

• Plug-in design compatible with Homeline load centers
• Rated at twenty amps with a voltage of one hundred twenty to two hundred forty VAC
• Thermal-magnetic protection with a breaking capacity of ten kA at one hundred twenty volts AC

Product Highlights

Reliable circuit protection ideal for residential applications, ensuring safety and compliance in electrical installations.

Product Information

Standard Information

• Brand: Telemecanique
• MPN: HOM120

Technical Specifications

• Part Number: HOM120
• Manufacturer: Schneider Electric
• Family: Homeline
• Pole: 1
• Amperage: 20 Amp
• Voltage: 120/240V
• Phase: 1
• Category: Molded Case Circuit Breakers
• Connection: Plug-In
• Type: HOM
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 10kA@120V
• Mounting: Plug-on
• Dimensions (HxWxD): 3 x 1 x 2.5 inches
