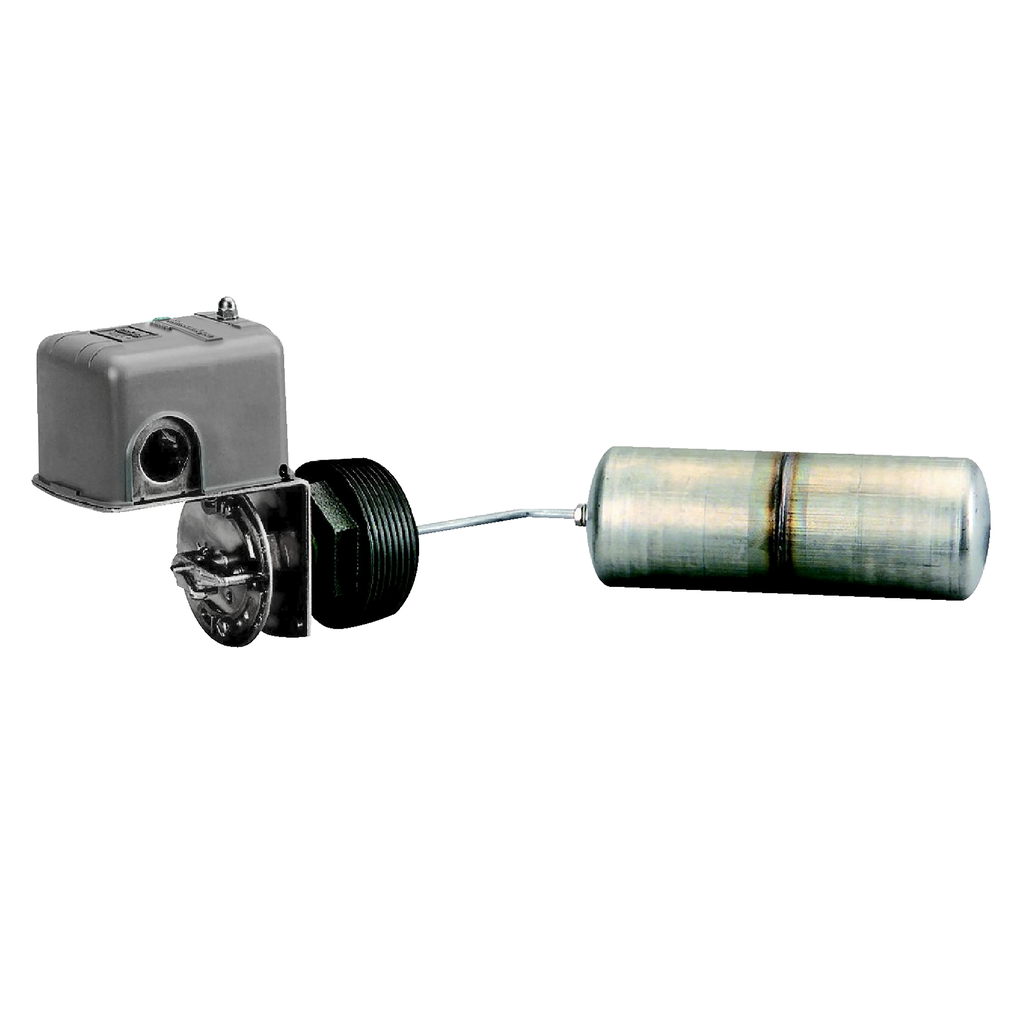

Telemecanique 9037HG32 Square D 575 VAC 5 Hp 2-Pole 2NO Polypropylene NEMA 1 Float Switch

Product Description

The Telemecanique 9037HG32 is a float switch designed for pressure control. This switch features two normally closed contacts with snap action, fitting into various industrial applications. The switch supports a screw-in mounting method and is designed for operation in a left position with an offset float rod angle.

• Electrical durability rated at 100 cycles
• Mechanical durability rated at 300 cycles
• Constructed with a polypropylene enclosure

Product Highlights

This float switch is suitable for monitoring and controlling liquid levels in water pumps, agricultural systems, and industrial equipment. It meets CE, CSA, and UL safety standards, ensuring reliability in operation.

Product Information

Standard Information

• Brand: Telemecanique
• Catalog Number: 9037HG32

Technical Specifications

• Type: Float switch
• Action: Contacts close on liquid rise
• Weight: 4.7 lb
• Voltage: 575 VAC
• Standard: CE, UL 508
• Enclosure: NEMA 1
• Applications: Liquid level control, closed tank
• Mounting Type: Screw-in Bushing
• Connection: 4 terminals
• Country of Origin: Mexico
• Temperature Rating: -22 to 220 Degrees F
