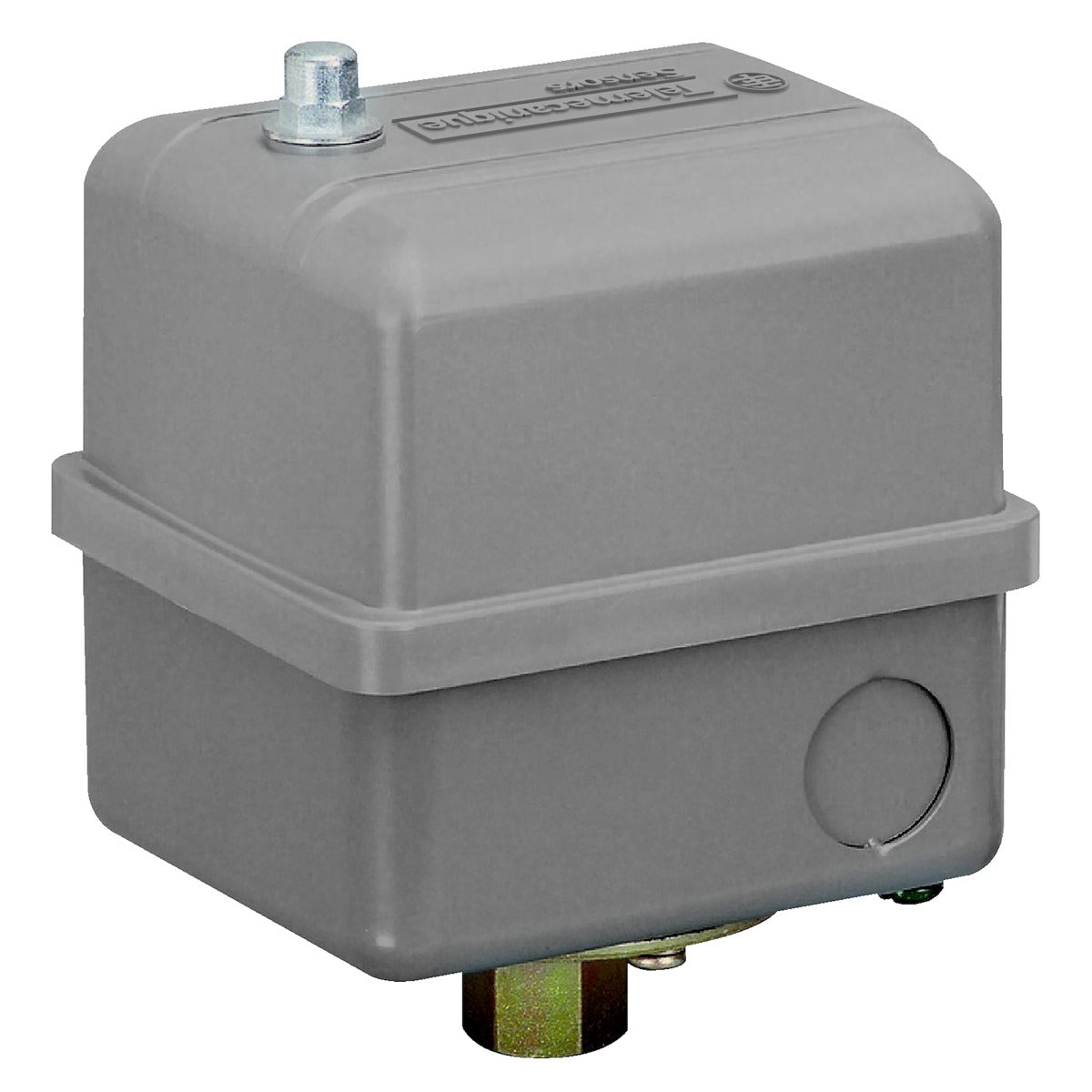

Telemecanique 9013GSG2J20 Pressure Switch 575 VAC DPST 5 to 60 PSIG Adjustable Differential

Product Description

The Telemecanique 9013GSG2J20 is a pressure switch designed for applications such as water pumps and compressors. This product is part of the NEMA Pressure Switch range and features a double pole single throw contact configuration.

• Adjustable differential range of 20 psi to 80 psi.
• Approved to CE, CSA, and UL standards.
• Robust construction offers durability for long-term use.

Product Highlights

This pressure switch allows for precise monitoring and control of pressure conditions in various industrial applications, including agriculture and manufacturing machinery.

Product Information

Standard Information

• Brand: Telemecanique
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Catalog Number: 9013GSG2J20
• Type: Electromechanical pressure switch
• Width: 3.44 inches
• Depth: 3.88 inches
• Height: 5.4 inches
• Weight: 2.25 lb
• Material: Noryl
• Enclosure: NEMA 1 UL 50
• Applications: Control of water pumps and air compressors
• Operating Temperature: -33 to 257 degrees F
• Operating Cycles: 10 cycles per minute
• Warranty Length: 18 months
