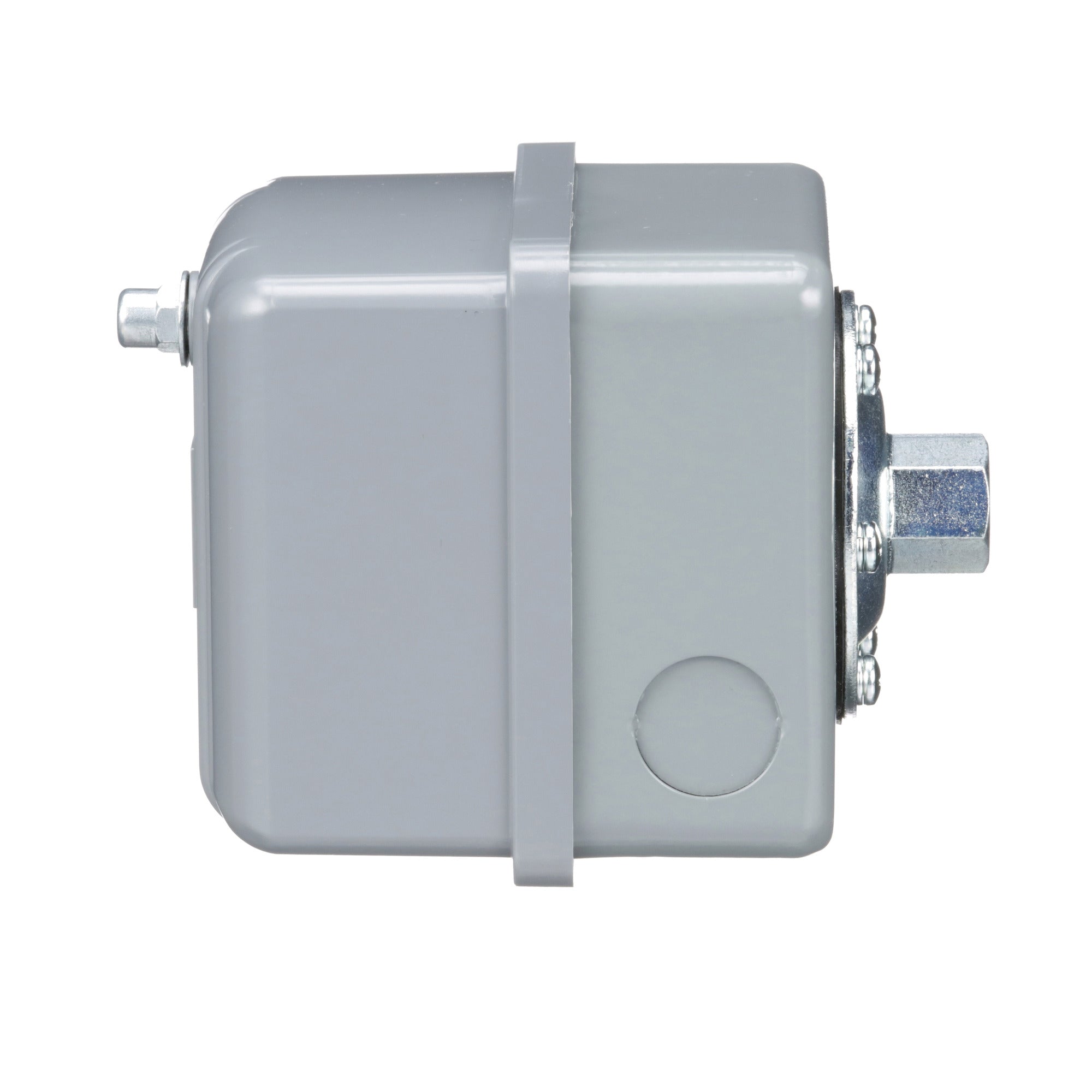

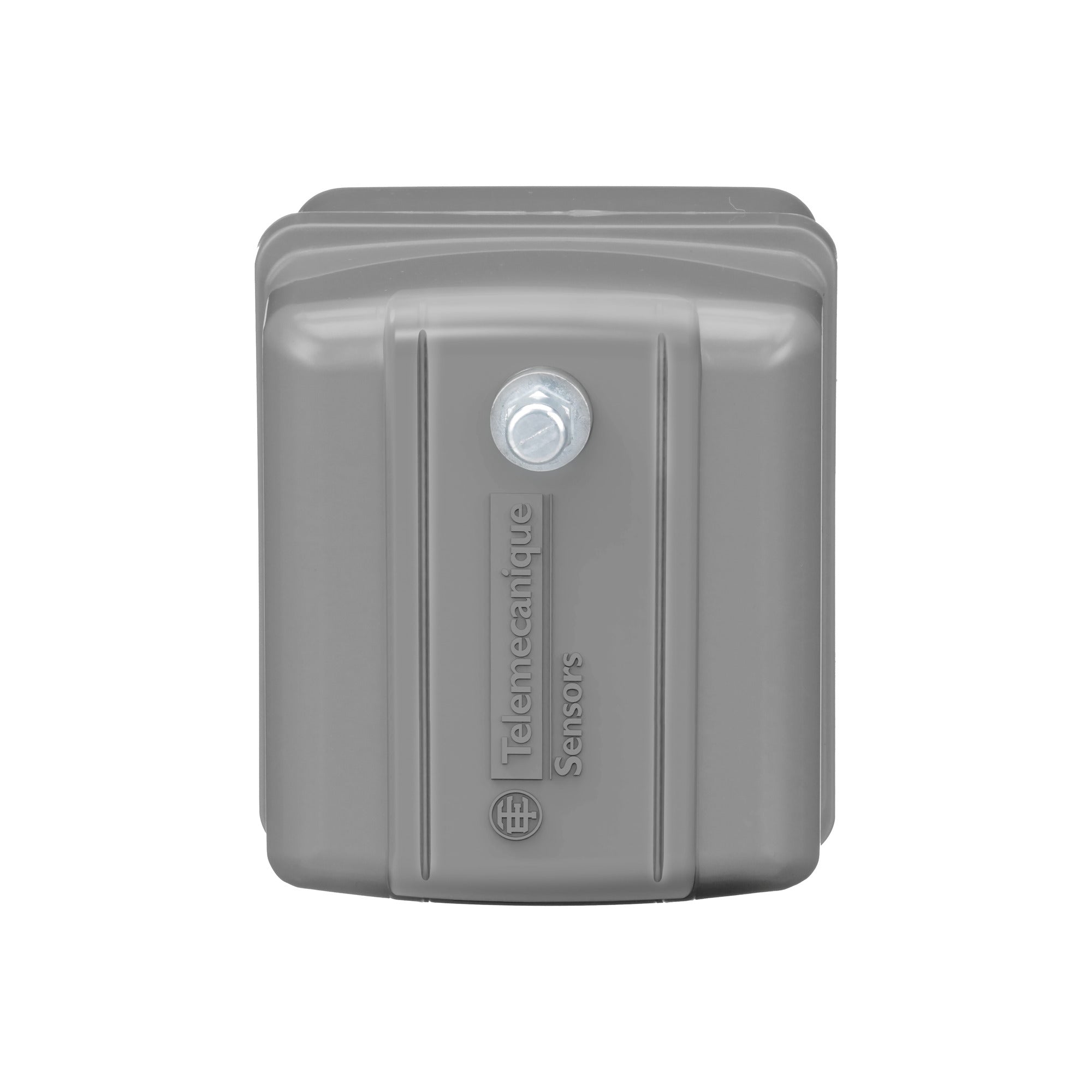

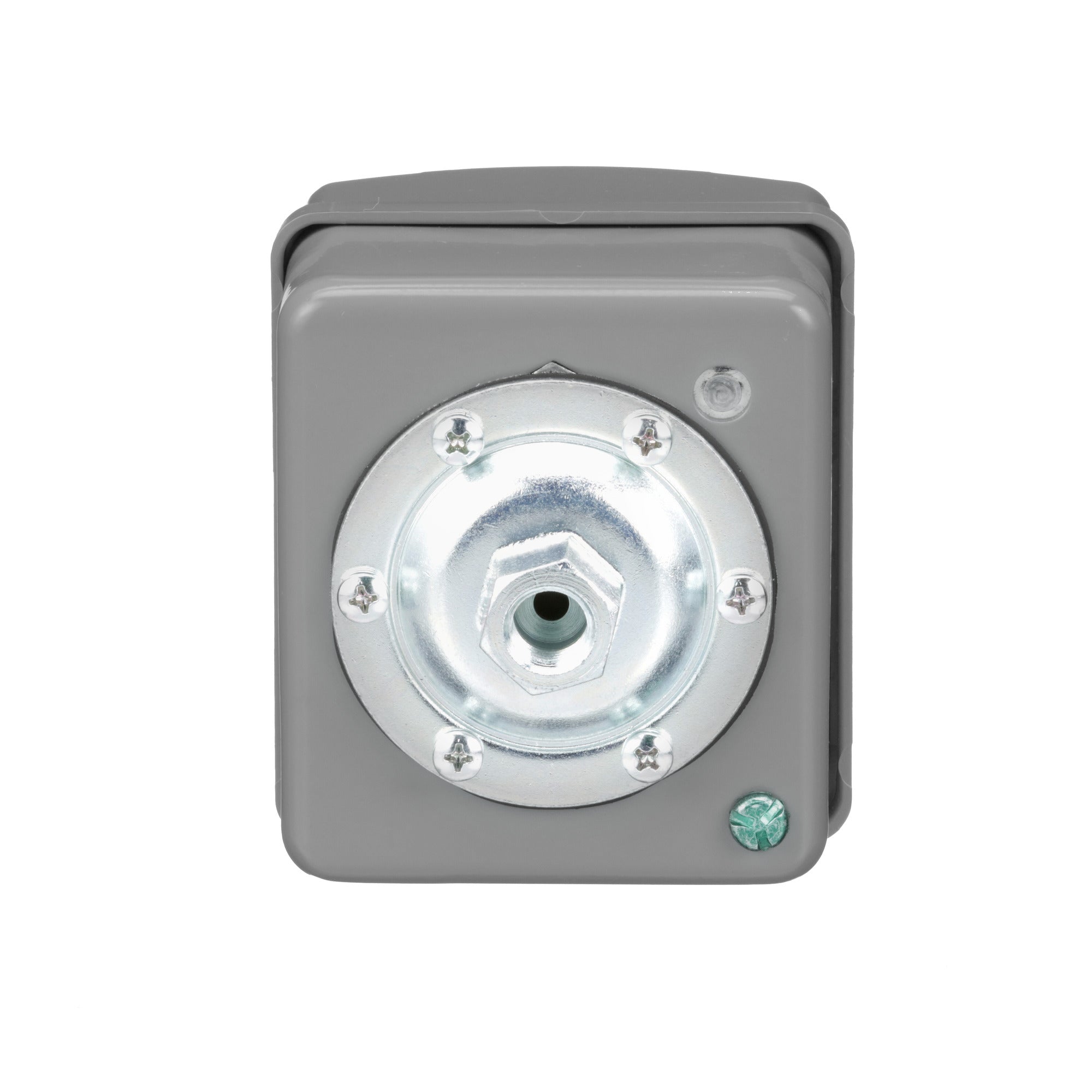

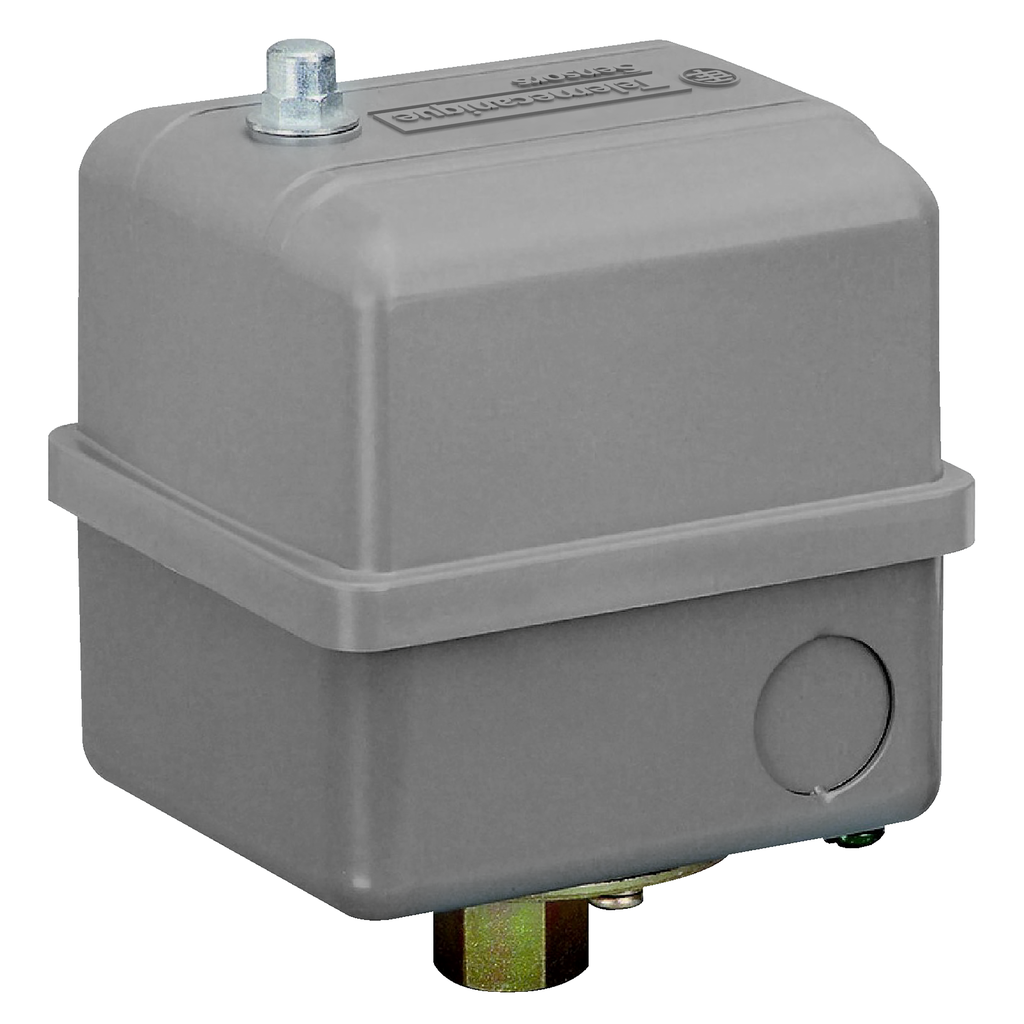

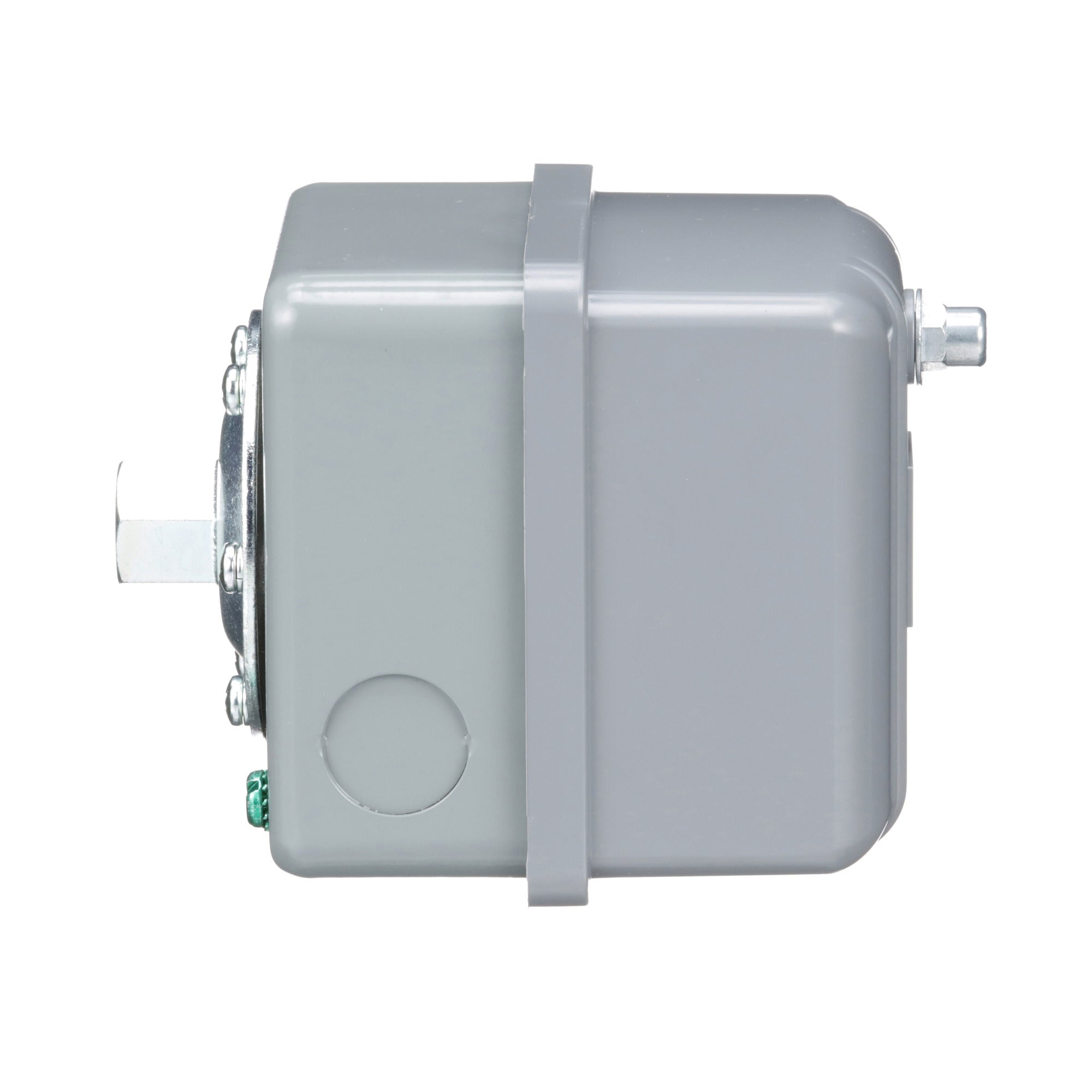

Telemecanique 9013GHG2J63 575 VAC DPST 40 to 170 PSIG Cut-In Adjustable Differential Pressure Switch

Product Description

The Telemecanique 9013GHG2J63 is a reliable pressure switch designed for controlling electrically driven water pumps and air compressors. This pressure switch features higher electrical ratings suitable for direct control of motors in various applications, including pumping and compressor operations.

• Diaphragm actuated with adjustable differential scale
• UL Listed and CSA certified for commercial and light industrial use
• Constructed with durable polypropylene for longevity

Product Highlights

This electromechanical switch monitors pressure conditions efficiently and provides robust performance for industrial and end-user applications.

Product Information

Standard Information

• Brand: Telemecanique
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Catalog Number: 9013GHG2J63
• Type: Electromechanical pressure switch; Adjustable differential
• Weight: 2.25 lb
• Width: 3.44 inch
• Depth: 3.88 inch
• Height: 5.4 inch
• Material: Noryl
• Environmental Conditions: General Purpose (Indoor)
• Operating Temperature: -33 to 257 degrees F
• Country of Origin: Mexico
