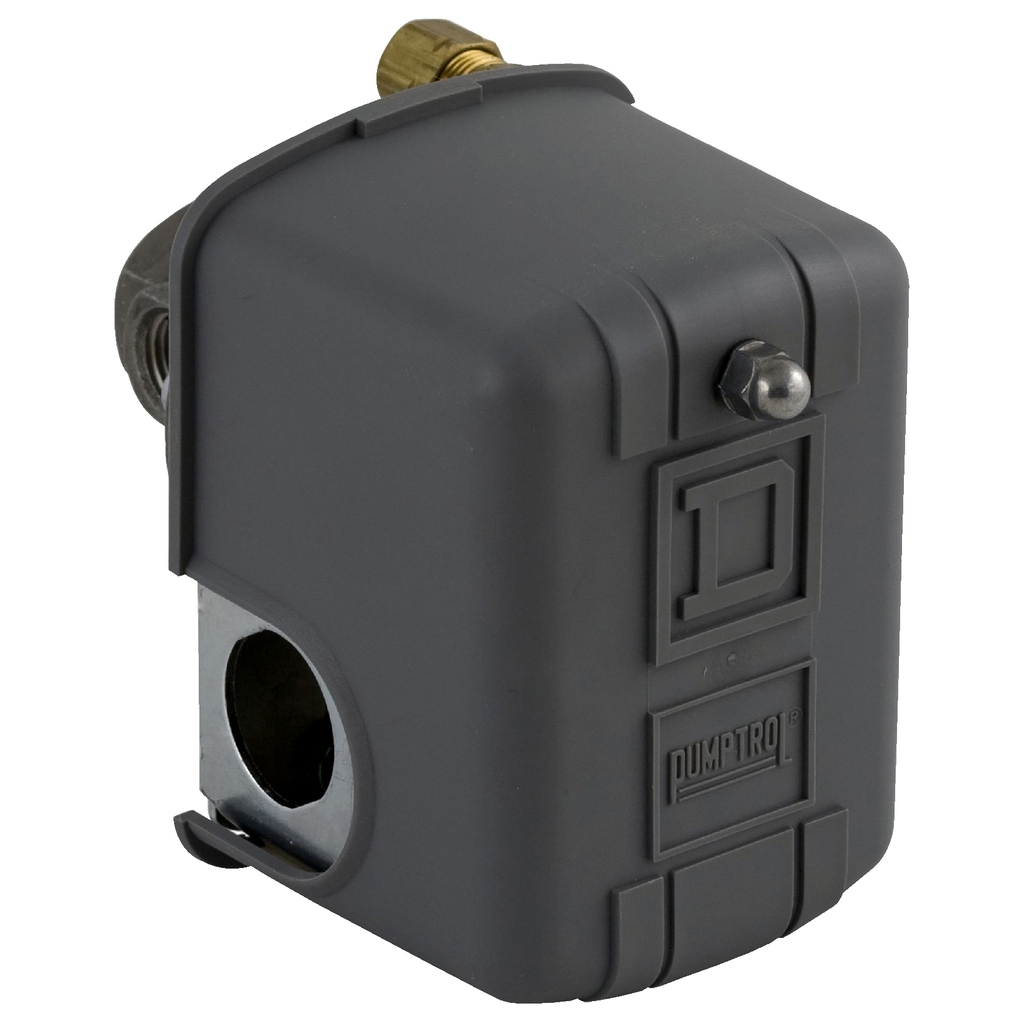

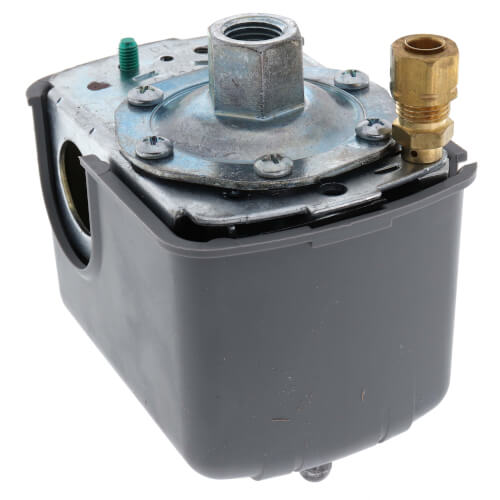

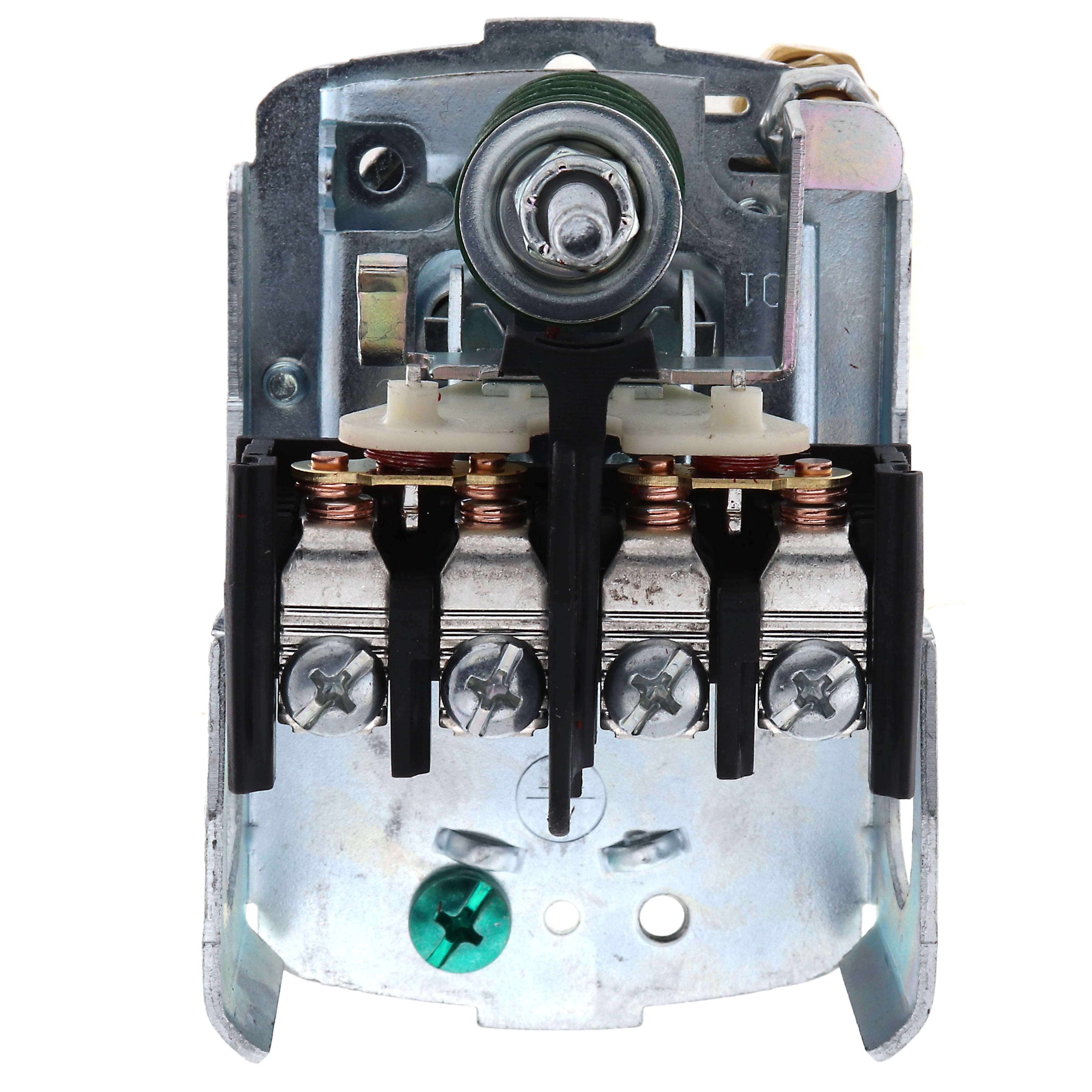

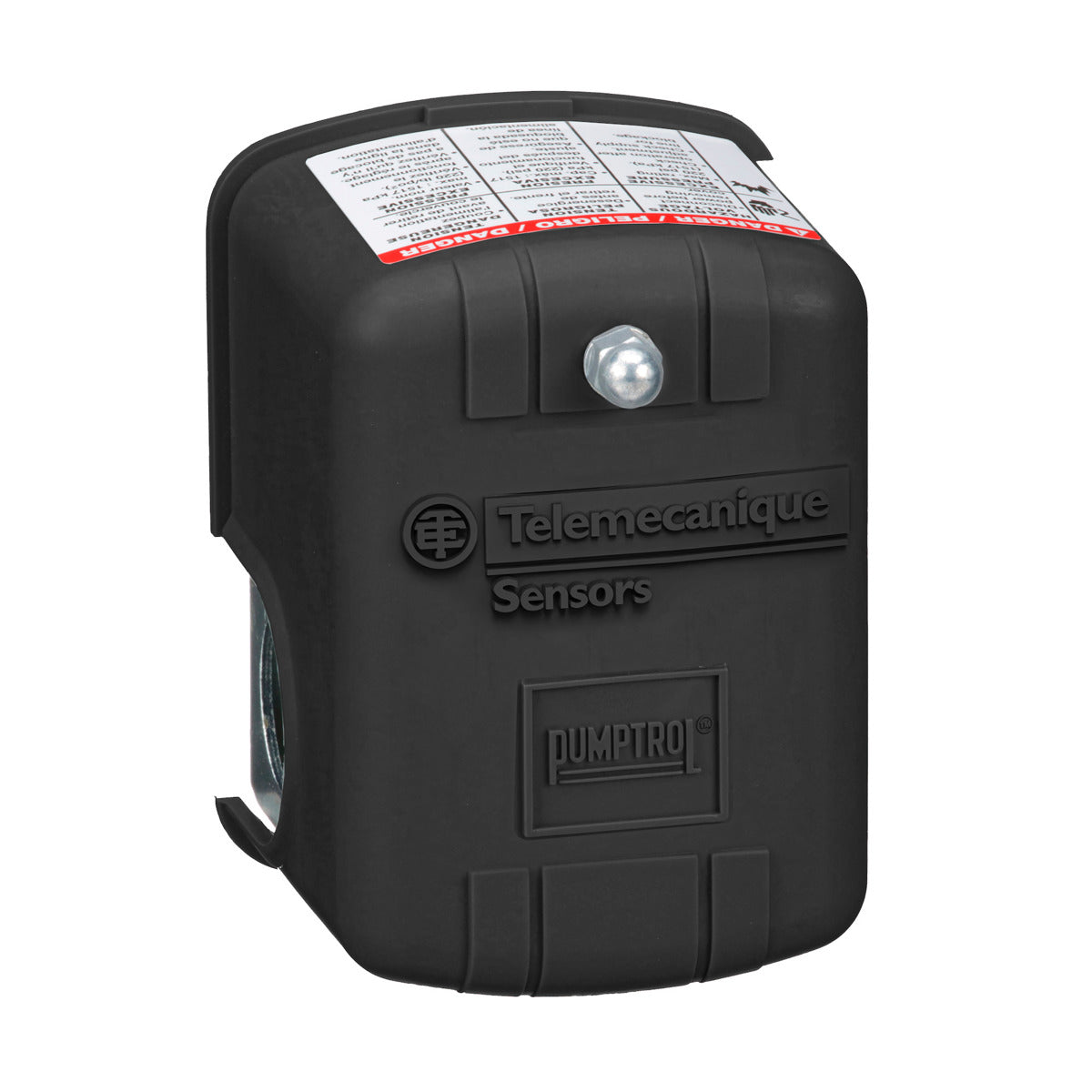

Telemecanique 9013FHG2J27X 575 VAC DPST 40 to 100 PSIG Non-Adjustable Differential Pressure Switch

Product Description

The Telemecanique 9013FHG2J27X is a non-adjustable differential pressure switch, specifically designed for air compressor applications. It features two normally closed, snap action contacts and is rated for operations at 100 PSI. This model is part of the Nema Pressure Switches series.

• Adjustable pressure range from forty to one hundred PSI
• Fixed differential approximately twenty PSI
• Robust polypropylene enclosure

Product Highlights

This switch is suitable for various applications, including monitoring and controlling pressure for water pumps, compressors, and irrigation systems. The enclosure is rated IP20 and NEMA 1, ensuring protection for indoor applications.

Product Information

Standard Information

• Brand: Telemecanique
• Catalog Number: 9013FHG2J27X

Technical Specifications

• Height: 2.8 inches
• Width: 2.78 inches
• Depth: 3.76 inches
• Weight: 1 pound
• Material: Polypropylene
• Enclosure Rating: NEMA 1 UL 50
• Country of Origin: Mexico
• Operating Temperature: -33 to 257 degrees Fahrenheit
