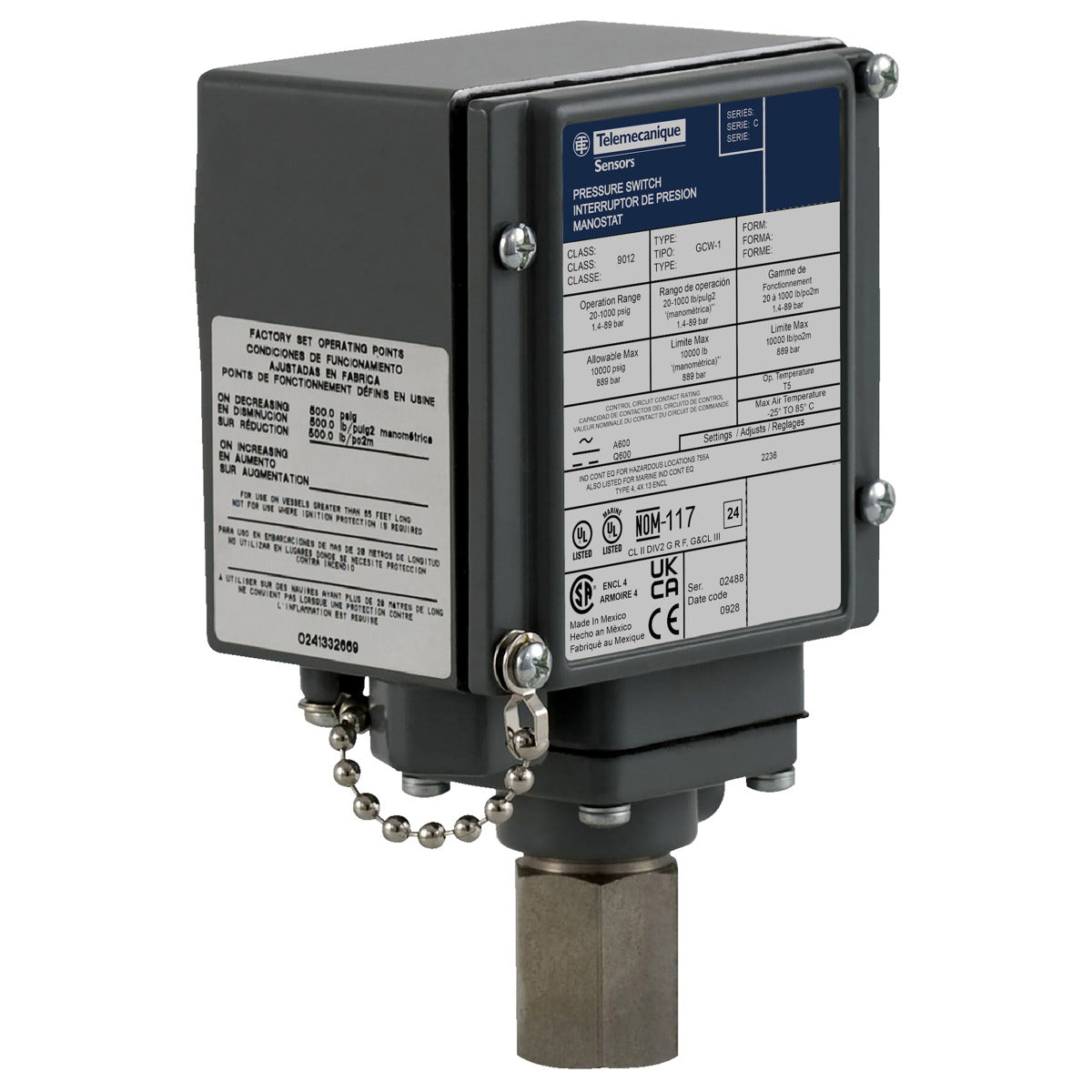

Telemecanique 9012GCW21 Pressure Switch 480 Vac DPDT 4-Circuit 20 to 1000 Psig Adjustable Differential Pressure Switch

Product Description

The Telemecanique 9012GCW21 is a versatile electromechanical pressure switch designed for a variety of industrial applications. This switch operates on a 480 Vac supply and features DPDT (double pole double throw) contacts for reliable performance. The adjustable differential allows for precise control of pressure settings, ranging from twenty to one thousand psig.

• Operating pressure range: 20 to 1000 psig
• Mechanical durability: Approximately five million cycles
• Enclosure rating: NEMA 4/4X/13

Product Highlights

This pressure switch is ideal for controlling and monitoring pressures in hydraulic and pneumatic systems. Its construction includes die cast aluminum and screw-clamp terminals for secure connections.

Product Information

Standard Information

• Brand: Telemecanique
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Catalog Number: 9012GCW21
• Width: 3.5 inches
• Depth: 2.63 inches
• Height: 6.37 inches
• Weight: 3 lb
• Operating Temperature: -10 to 185 degrees F
• Contact Configuration: DPDT-DB, form ZZ, snap action
• Process Connection: 0.25 inch 18 NPTF
• Warranty: 18 months
• Country of Origin: France
• Certifications: UL, CSA, CE
