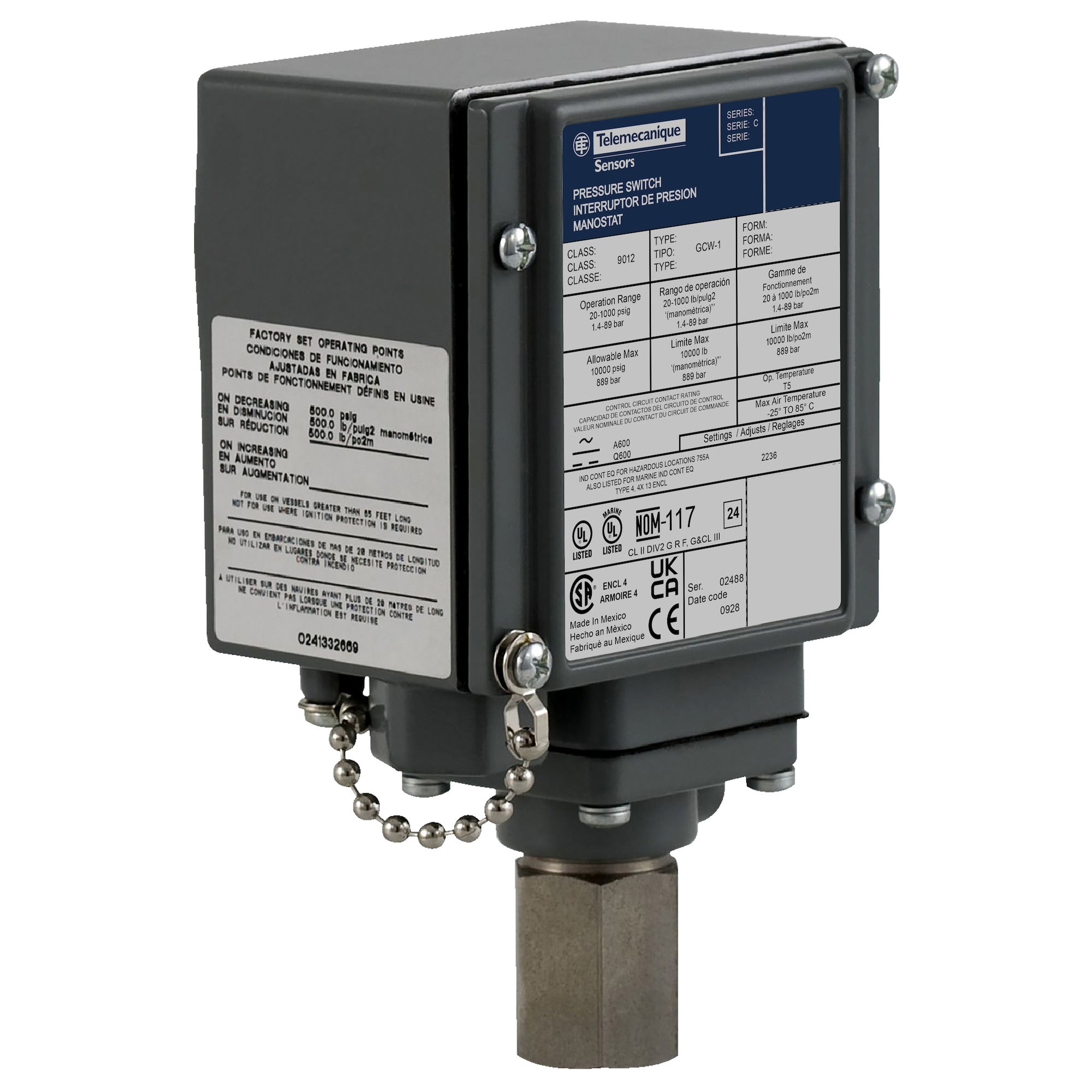

Telemecanique 9012GCW1 Pressure Switch 480 VAC SPDT 20 to 1000 PSIG

Product Description

This product is a part of the Telemecanique 9012GCW1 series, designed for pressure monitoring and control. The electromechanical pressure switch features SPDT-DB contact configuration and operates within a pressure range of twenty to one thousand PSIG. It includes adjustable differentials of approximately fifty-nine to two hundred PSIG.

• Compatible with various fluids using a 0.25 inch NPTF connection
• Enclosure made of durable die cast aluminum for enhanced durability
• NEMA 4/4X/13 rated for environmental protection

Product Highlights

This pressure switch is suitable for applications in pumps, compressors, and agricultural systems. It offers reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Telemecanique
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Catalog Number: 9012GCW1
• Operating Cycles: 120 cyc/mn
• Enclosure Material: Die cast aluminum alloy 380
• Contact Configuration: NC-NO, SPDT-DB, Form Z
• Environmental Conditions: Water tight, dust tight, oil tight
• Operating Temperature: -10 to 185 degrees F
• Weight: 3 lb
• Dimensions: 3.5 inches (W) x 2.63 inches (D) x 6.37 inches (H)
