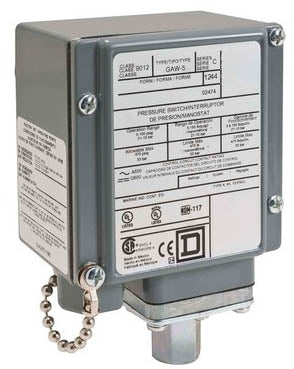

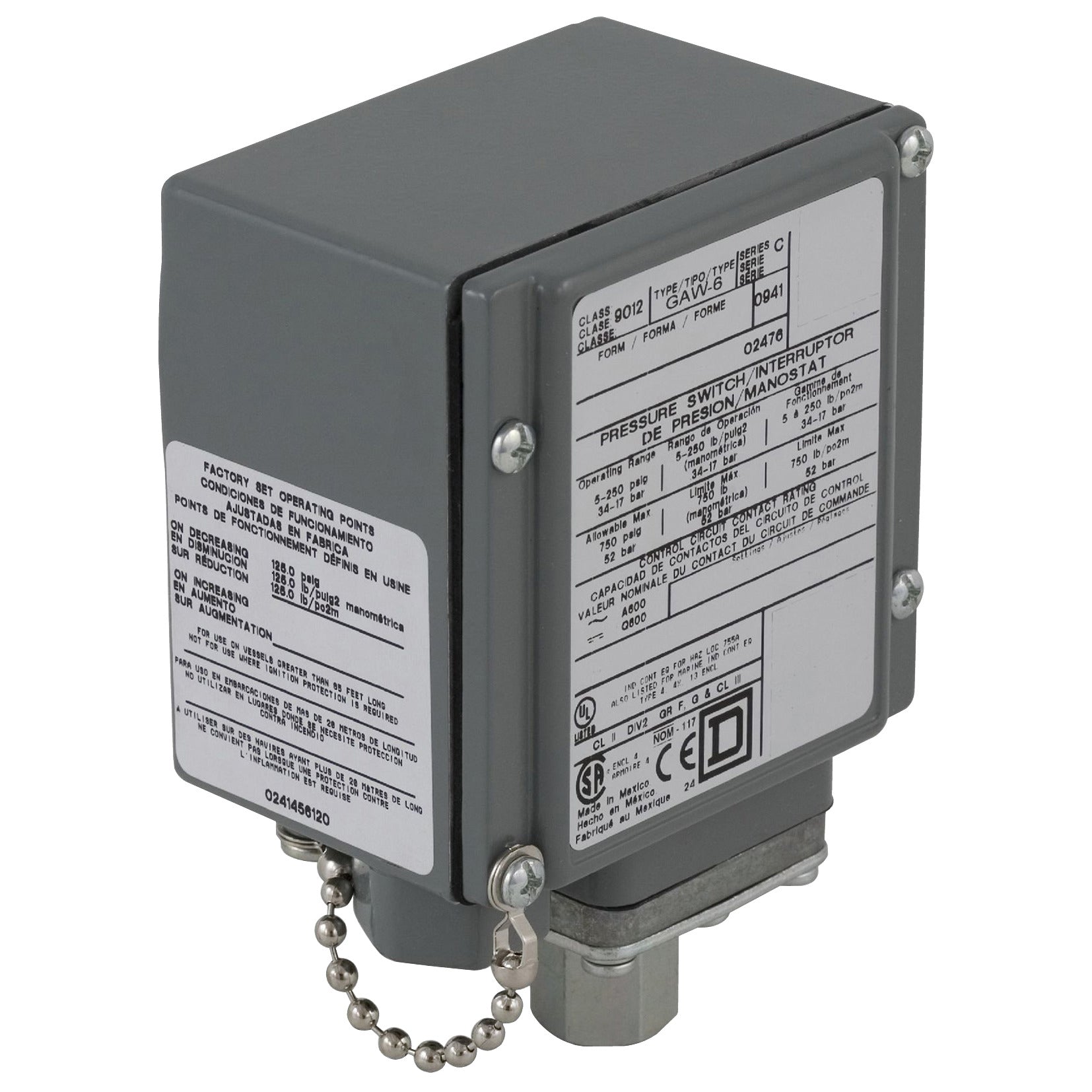

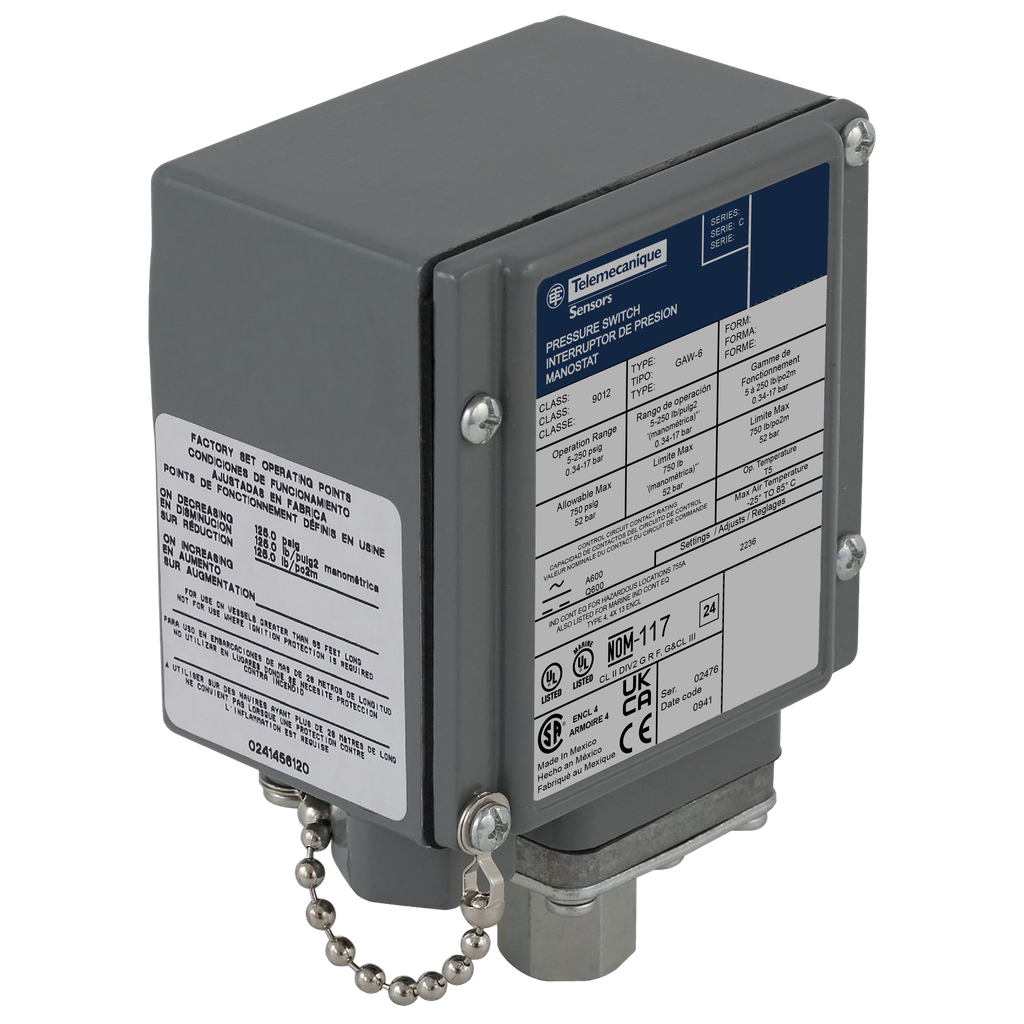

Telemecanique 9012GAW2 Pressure Switch 480 VAC SPDT 2-Circuit 1 to 40 PSIG Adjustable Differential Pressure Switch

Product Description

This product is part of the Telemecanique Nema Pressure Switches range. The Telemecanique 9012GAW2 is an electromechanical pressure switch with a single pole double throw configuration. It features a range of decreasing pressure from one psi to forty psi. The adjustable differential is approximately zero point six psi to two psi at mid-range, with a maximum pressure rating of one hundred psi. Designed for reliable performance, it uses screw clamp terminals for electrical connections and a quarter-inch NPTF connection for fluid.

• Adjustable differential scale for two internal thresholds.
• Durable design with an operational life of up to five million cycles.
• Suitable for various applications including water pumps and compressors.

Product Highlights

The Telemecanique 9012GAW2 pressure switch is ideal for controlling and monitoring system pressure in various industrial applications. With features to protect equipment in hydraulic and pneumatic systems, it maintains accuracy and reliability.

Product Information

Standard Information

• Brand: Telemecanique
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Catalog Number: 9012GAW2
• Weight: 3 lb
• Width: 3.5 inches
• Depth: 2.63 inches
• Height: 6.24 inches
• Amperage: 3 Amp
• Operating Temperature: -10 to 185 degrees F
• Contact Configuration: NC-NO, SPDT-DB
