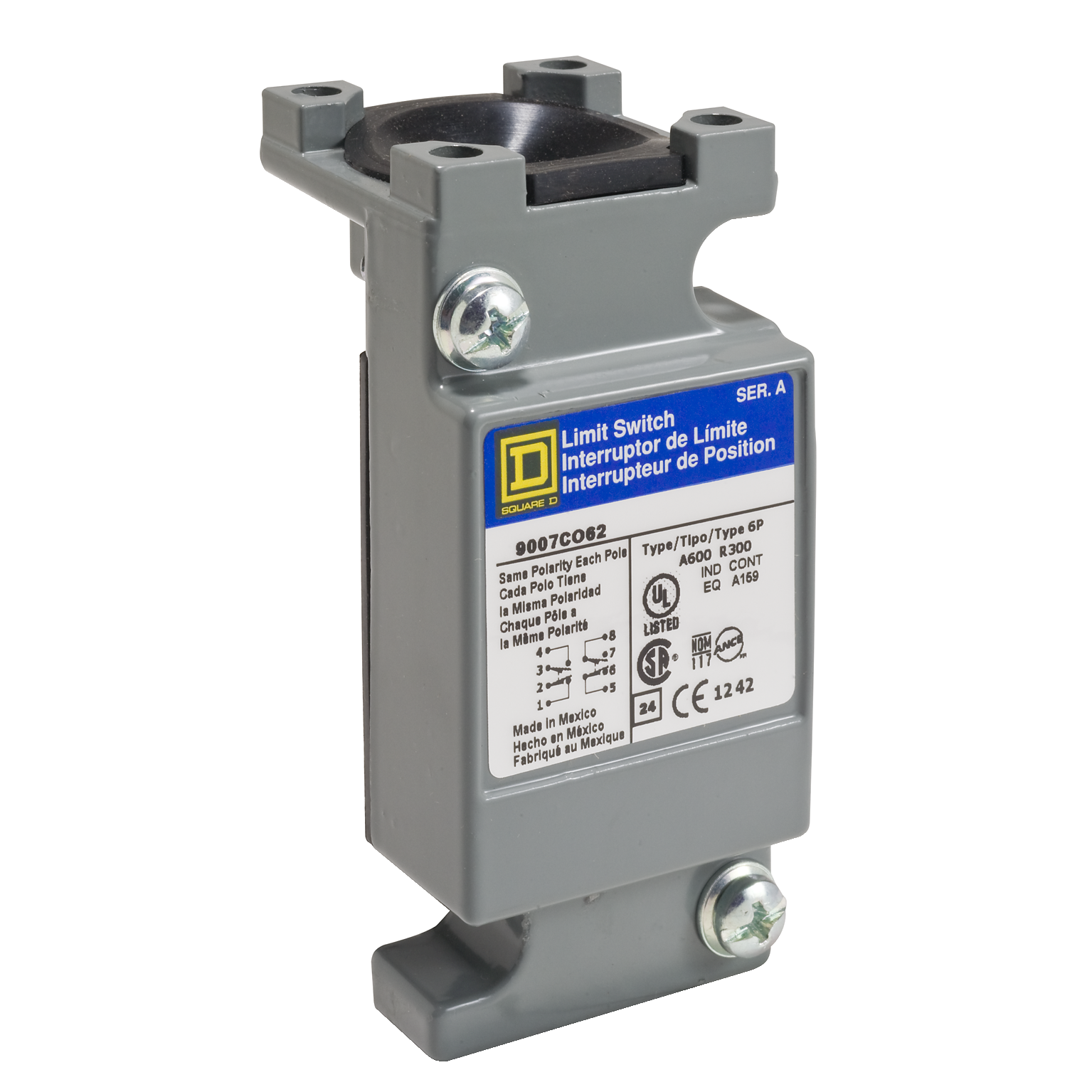

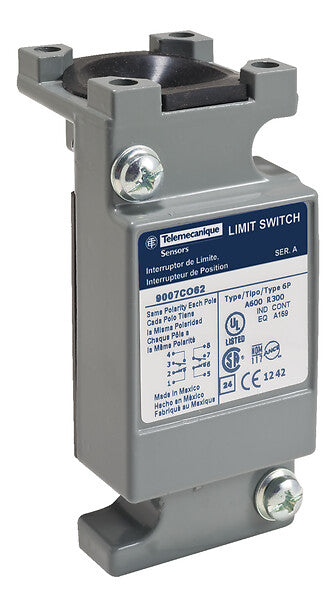

Telemecanique 9007CO62 Limit Switch Plug In Unit 10 Amp

Brand: TELEMECANIQUE
SKU: 9007CO62
Availability: Out Of Stock
$248.74
$248.74
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The TELEMECANIQUE 9007CO62 is part of the Nema Limit Switches range, a limit switch plug-in body. This safety switch plug-in unit has 2 normally closed + 2 normally opened, DPDT-DB form ZZ, snap action contacts. Rated to IP67 and NEMA 1/2/4/6/6P/12/13, it offers mechanical durability of about 10 million operating cycles and electrical durability of about 1 million operating cycles.

  • Part of the Nema Limit Switches range
  • Plug-in body is an accessory of limit switch
  • IP67 and NEMA 1/2/4/6/6P/12/13 rated

Product Highlights

The 9007CO62 limit switch is made of zinc with epoxy powder coat finish and certified by UL, CSA and CE. Complies with UL 508, NEMA 250 and C22-2-14 standards.

Product Information

Standard Information

  • Brand: TELEMECANIQUE
  • Manufacturer Part Number: 9007CO62
  • Country of Origin: Mexico
Technical Specifications
GTIN
00785901500858
Size
1.79 in
Type
Heavy Duty, Plug-In
Brand
Telemecanique Sensors
Depth
1.79 Inch
Width
7.1120 in
Action
Snap action
Height
3.14-3.14 Inch
Weight
1.25 lb
Voltage
1.2 A 600 Volt AC, A600 NEMA RATING DESIGNATION-1.5 A 480 Volt AC, A600 NEMA RATING DESIGNATION-3 A 240 Volt AC, A600 NEMA RATING DESIGNATION-6 A 120 Volt AC, A600 NEMA RATING DESIGNATION-0.11 A 250 Volt DC, R300 NEMA RATING DESIGNATION-0.55 A 125 Volt DC, R300 NEMA RATING DESIGNATION
Amperage
10 Amp
Body Type
Standard plug-in
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Sub Brand
9007C
Net Weight
1.25 lb
Product UPC
78590150085
12-Digit UPC
785901500858
Applications
9007C
Body Material
Zinc
Contact Rating
10 A at 600 VAC, 2.5 A at 600 VDC
Number of Poles
2 Pole
Number of Steps
1
Warranty Length
18 mth
Contact Material
Silver
Operating Cycles
1M
CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Storage Temperature
-20-185 degrees F
Contact Configuration
2(NC-NO)
Operating Temperature
-20-185 Adegrees F STANDARD ENVIRONMENT
Environmental Conditions
Standard environment
Catalog Number
9007CO62
Manufacturer
Telemecanique Sensors
Warranty Description
Contractual Warranty:18 months
Made in USA
No
Amperage Rating
10 A
Application
9007C
Special Features
-,STANDARD PLUG-IN
Standard
25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
RoHS URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=376489&lang=en-us
UPC
785901500858
Item Type
Limit switch plug-in unit
Voltage Rating
1.2 A 600 V AC, A600 NEMA RATING DESIGNATION-1.5 A 480 V AC, A600 NEMA RATING DESIGNATION-3 A 240 V AC, A600 NEMA RATING DESIGNATION-6 A 120 V AC, A600 NEMA RATING DESIGNATION-0.11 A 250 V DC, R300 NEMA RATING DESIGNATION-0.55 A 125 V DC, R300 NEMA RATING DESIGNATION
Actuator/Head Type
Plunger/Rotary
Operation Type
Snap Action
Approval
UL, CSA, CE
Used On
9007C Series Limit Switch
Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch plug-in unit
Device short name
9007C
Product compatibility
9007C
Local display
Without
Contacts type and composition
2(NC-NO)
Contact operation
Snap action
Positive opening
Without
Function available
Not applicable
Switch function
DPDT-DB
Contact form
Form ZZ
Terminals description ISO n°1
(1-2)NC (3-4)NO (5-6)NC (7-8)NO
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Protective treatment
Epoxy powder coat
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.318 CENTIMETER
Package 1 width
7.112 CENTIMETER
Package 1 length
10.668 CENTIMETER
Package 1 weight
566.991 GRAM
Indivisible sale quantity
1
Alternate Catalog Number
9007CO62
ARRA Compliant
N
Buy American Compliant
N
Connection Type
Plug-In
Currency
USD
Dimensions
3.14 in H x 1.55 in W x 1.79 in D
Enclosure Type
NEMA 1/2/4/6/6P/12/13
EU RoHS Indicator
Y
Gross Volume Per Pack
19.99
Gross Volume per Pack Metric
327.61
Gross Volume UOM
CI
Gross Volume UOM Metric
cm3
Gross Weight Per Pack
1.2500 lb
Gross Weight per Pack Metric
566.99
Gross Weight UOM Metric
g
Harmonization Tariff Schedule Code
8536509055
Height [Metric]
4.3180 cm
Item Group
21499
Length
10.6680 in
Length [Metric]
10.6680 cm
Material
Zinc Alloy
Material Composition Declaration
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=376489&lang=en-us
Number Of Poles
2
Temperature Rating
-20 to 185 °F
UNSPSC
39122213
UPC 11
78590150085
UPC 12
785901500858
Suitable For Use With
9007C Series Limit Switch
Stock Status
NONSTOCK
Returnable
Y
Width [Metric]
7.1120 cm
(Instrument-Sensor) Number of Poles
2 Pole
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Temperature Range
-29 - 85 °C
ECCN
EAR99
