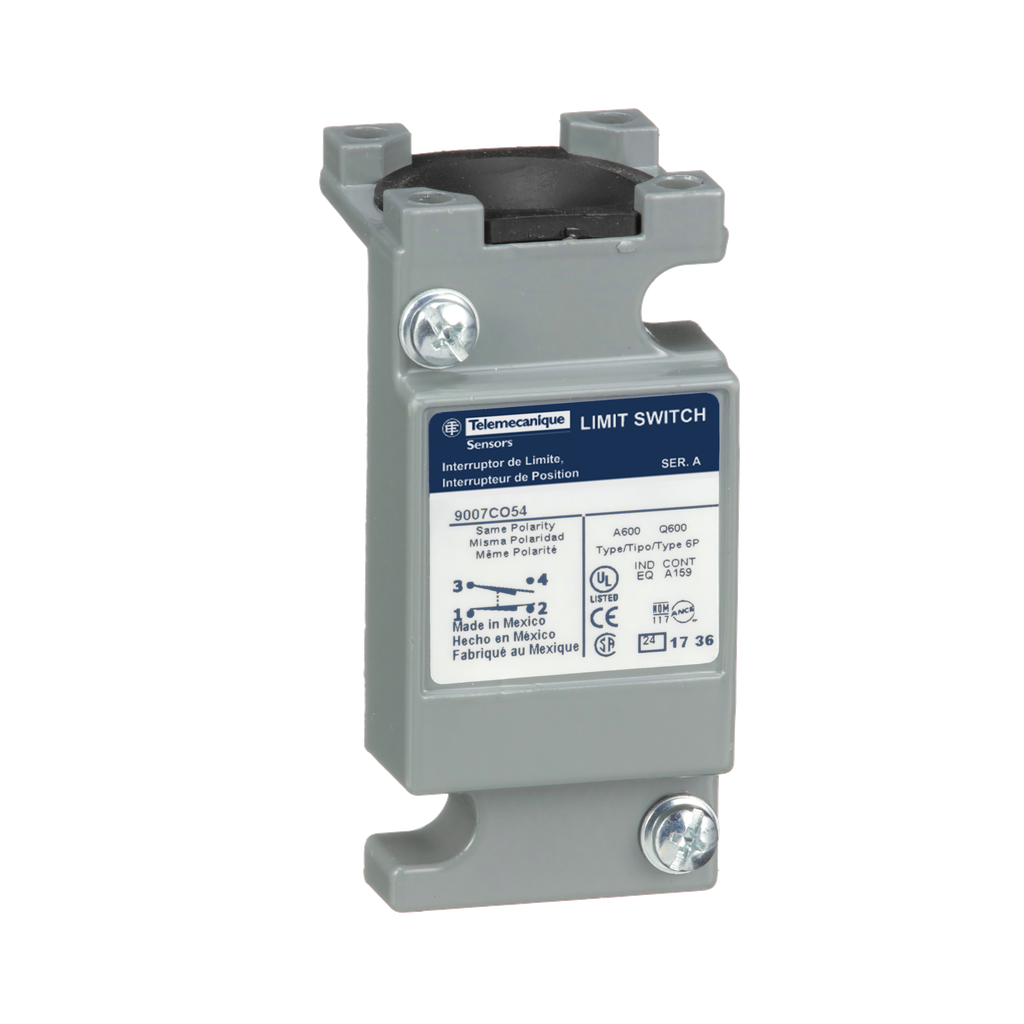

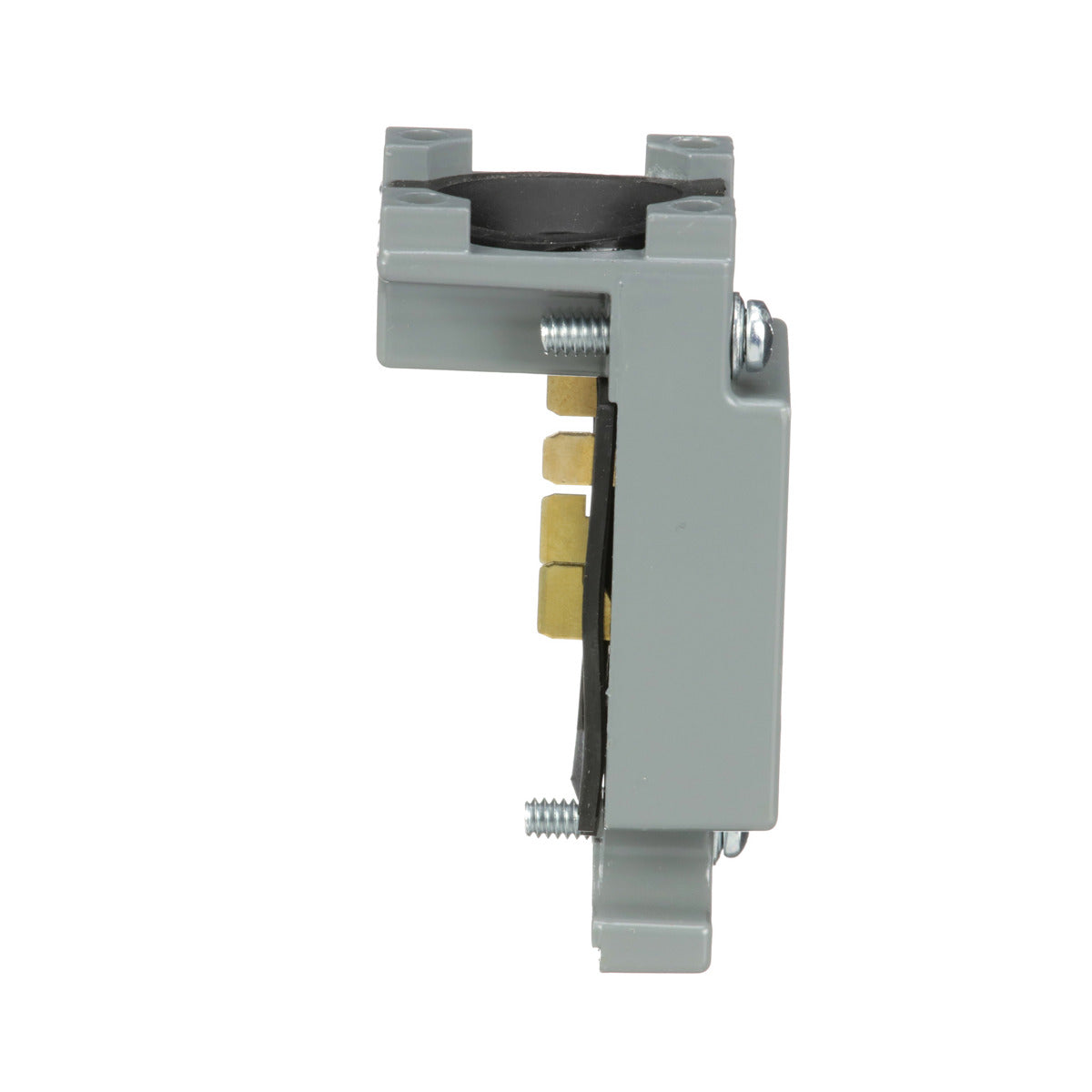

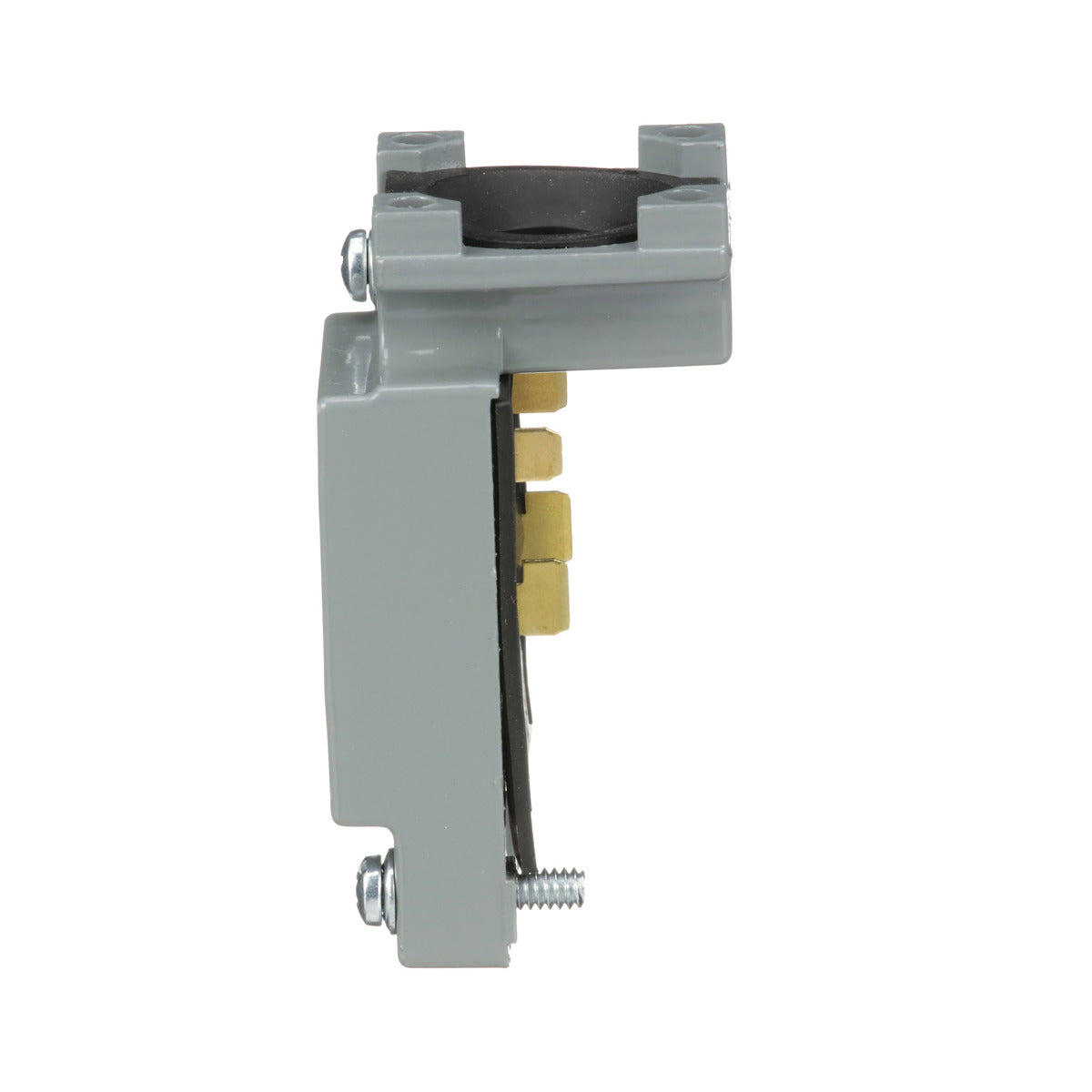

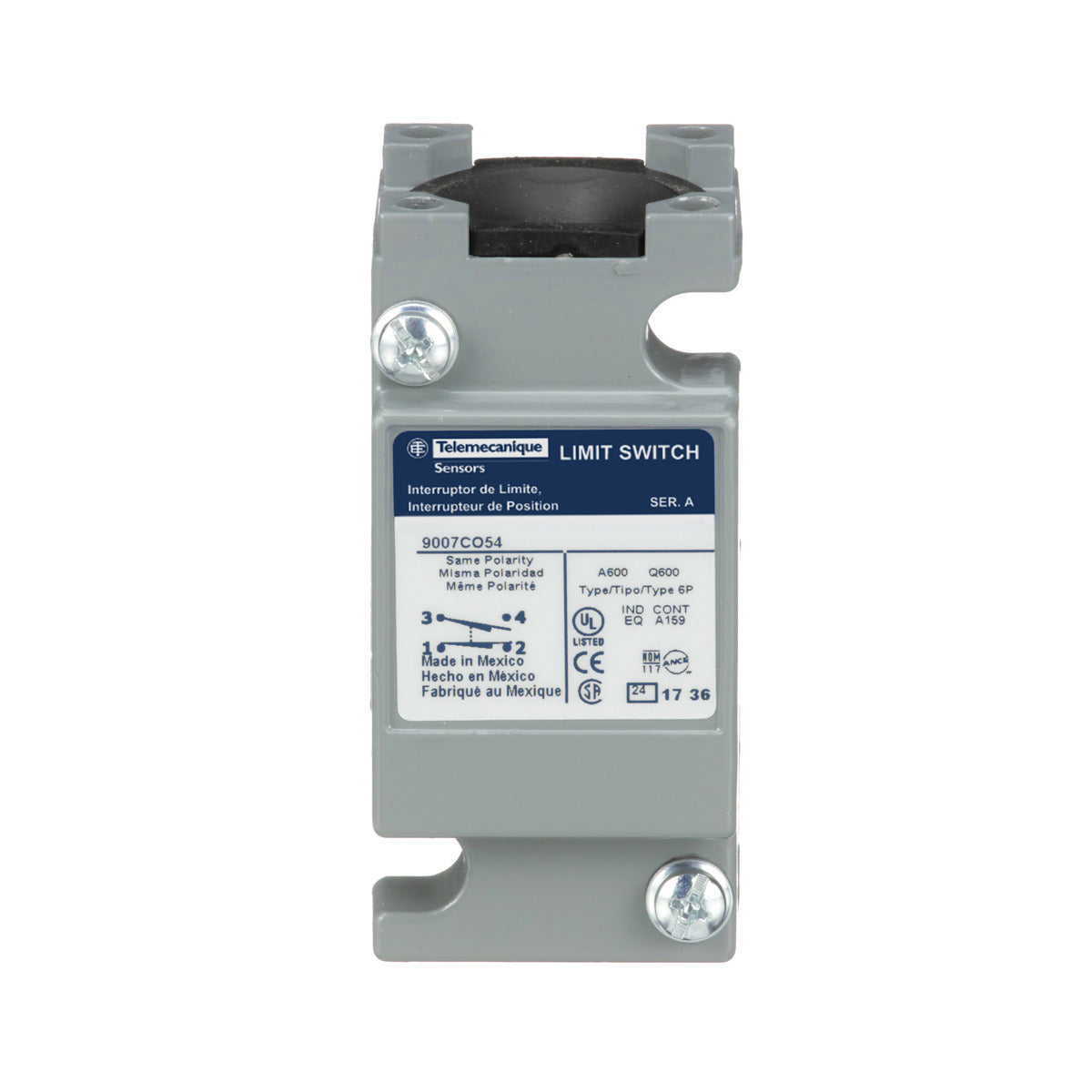

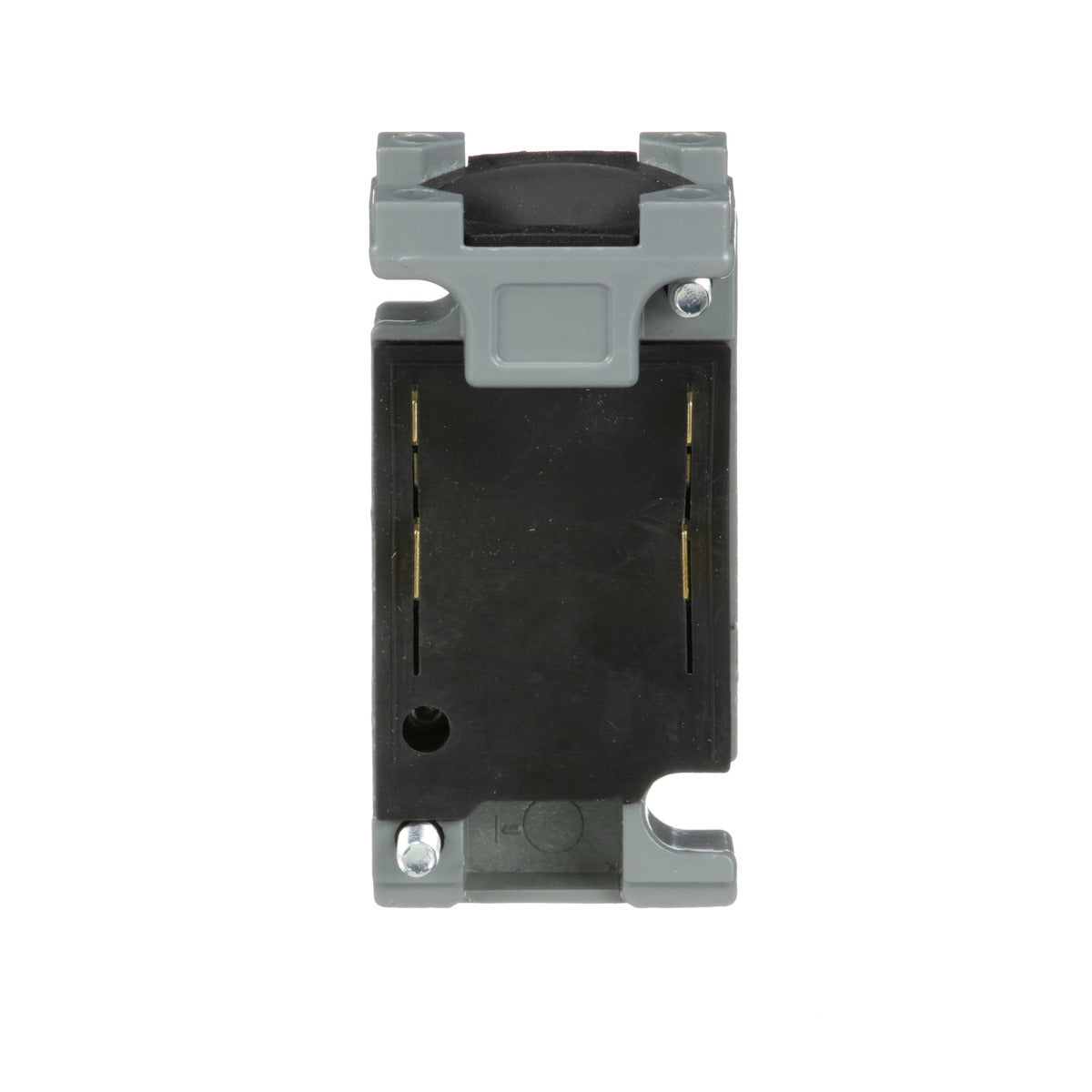

Telemecanique 9007CO54 Heavy Duty Limit Switch 10 Amp 600 Volt SPDT

Product Description

The Telemecanique 9007CO54 is a heavy-duty limit switch designed for industrial applications. This model supports a snap action mechanism and can handle up to ten amps at six hundred volts. It features a robust metal body suitable for harsh environments. Use this switch in various applications including material handling, packaging, and construction.

• Rated for NEMA 1, 2, 4, 6, 6P, 12, and 13 environments
• Mechanical durability of approximately 10 million cycles
• IP67 rated for water and dust ingress protection

Product Highlights

This limit switch is built to withstand challenging operational conditions, maintaining high reliability across diverse industries.

Product Information

Standard Information

• Catalog Number: 9007CO54
• Brand: Telemecanique

Technical Specifications

• Amperage: 10 Amp
• Voltage: 600 Volt AC
• Body Type: Standard Plug-in
• Contact Rating: NEMA A600/Q600
• Height: 3.14 inches
• Width: 1.55 inches
• Depth: 1.79 inches
• Weight: 1.25 lb
