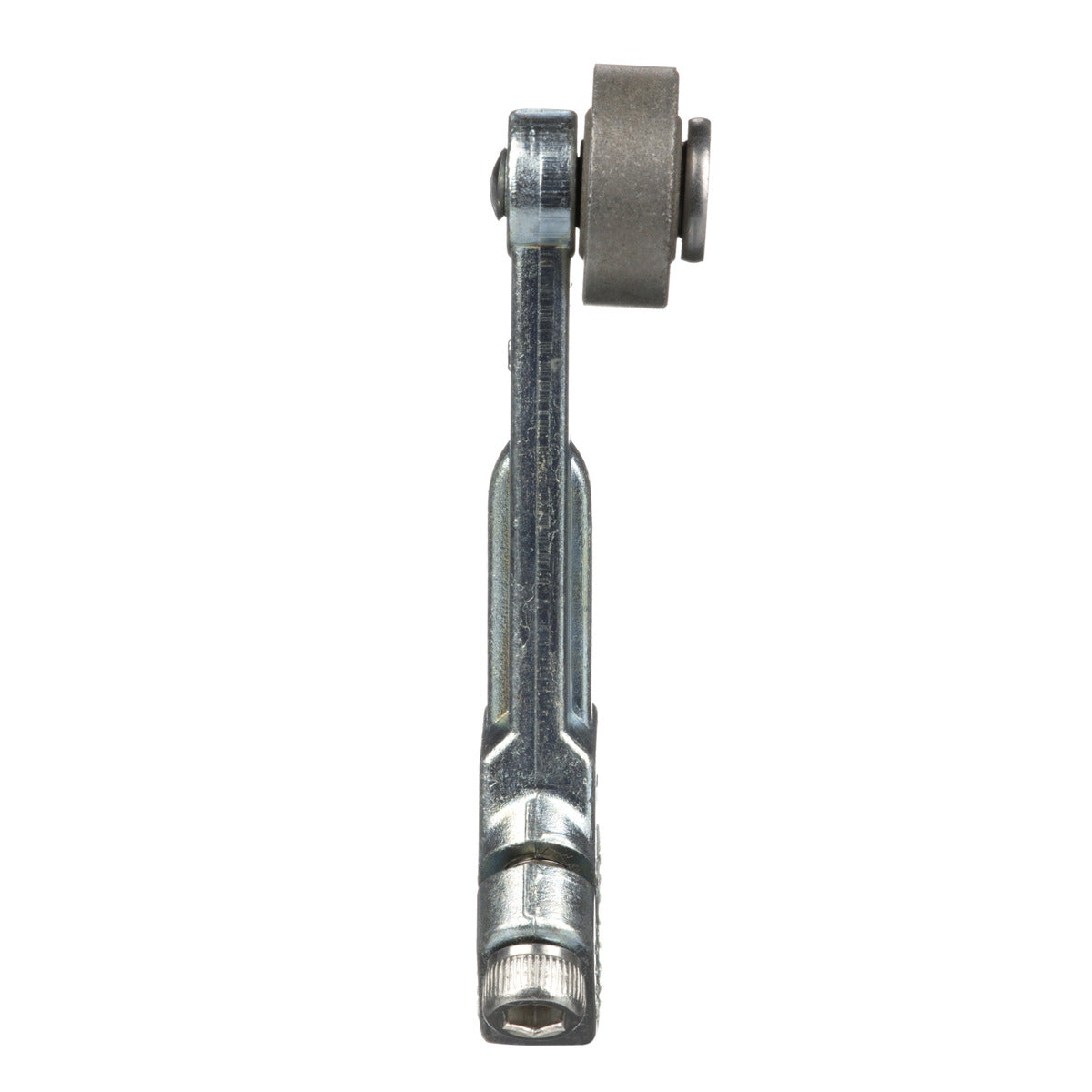

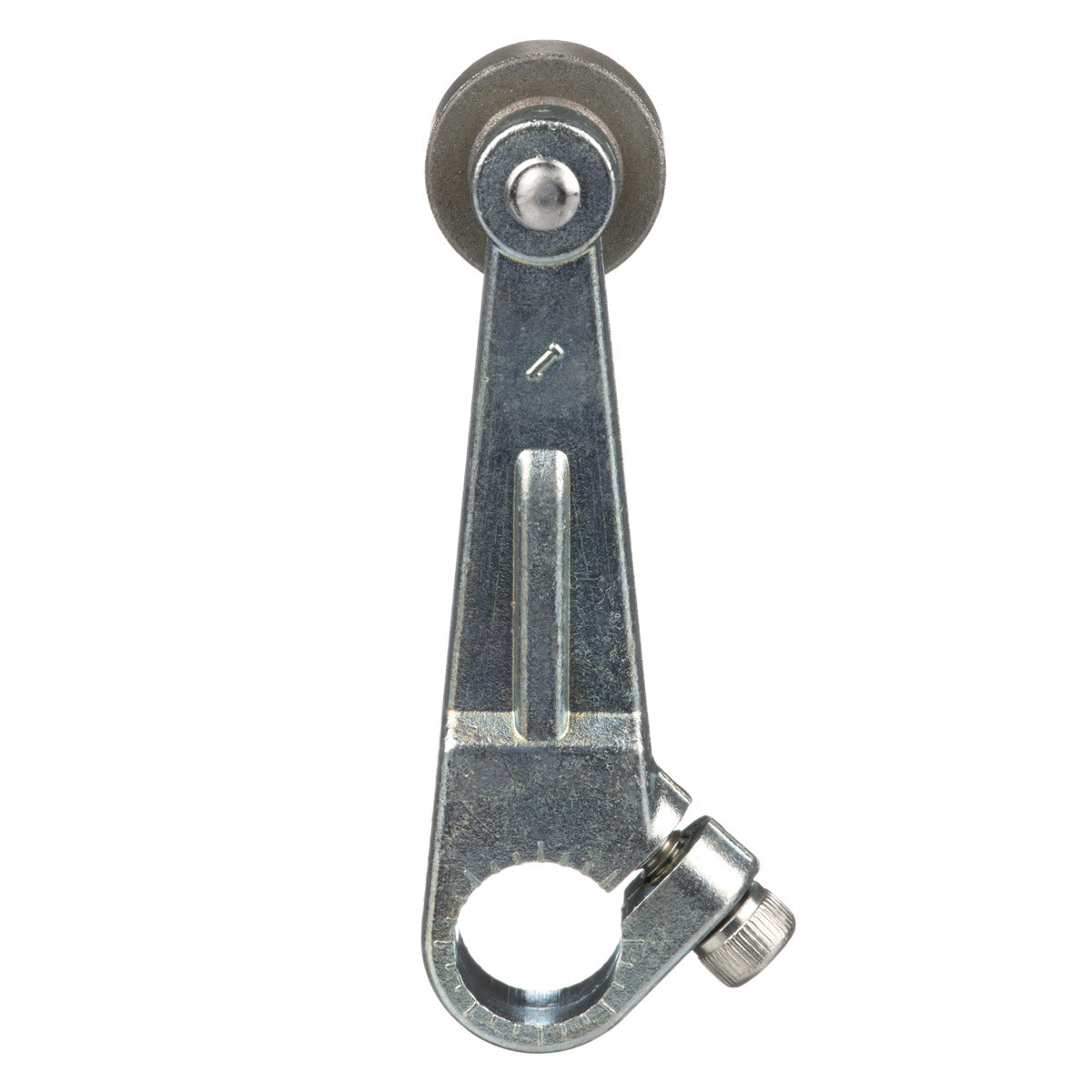

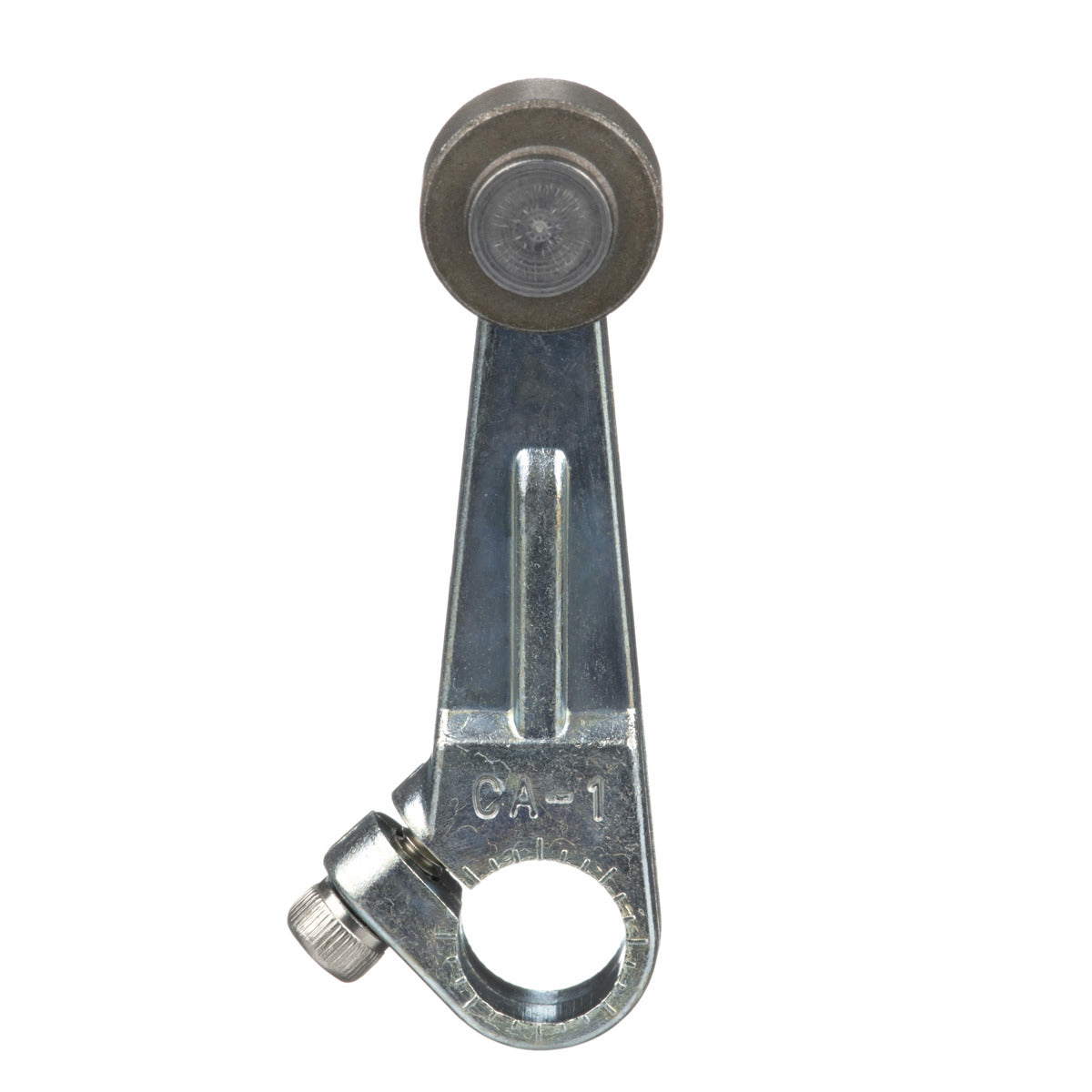

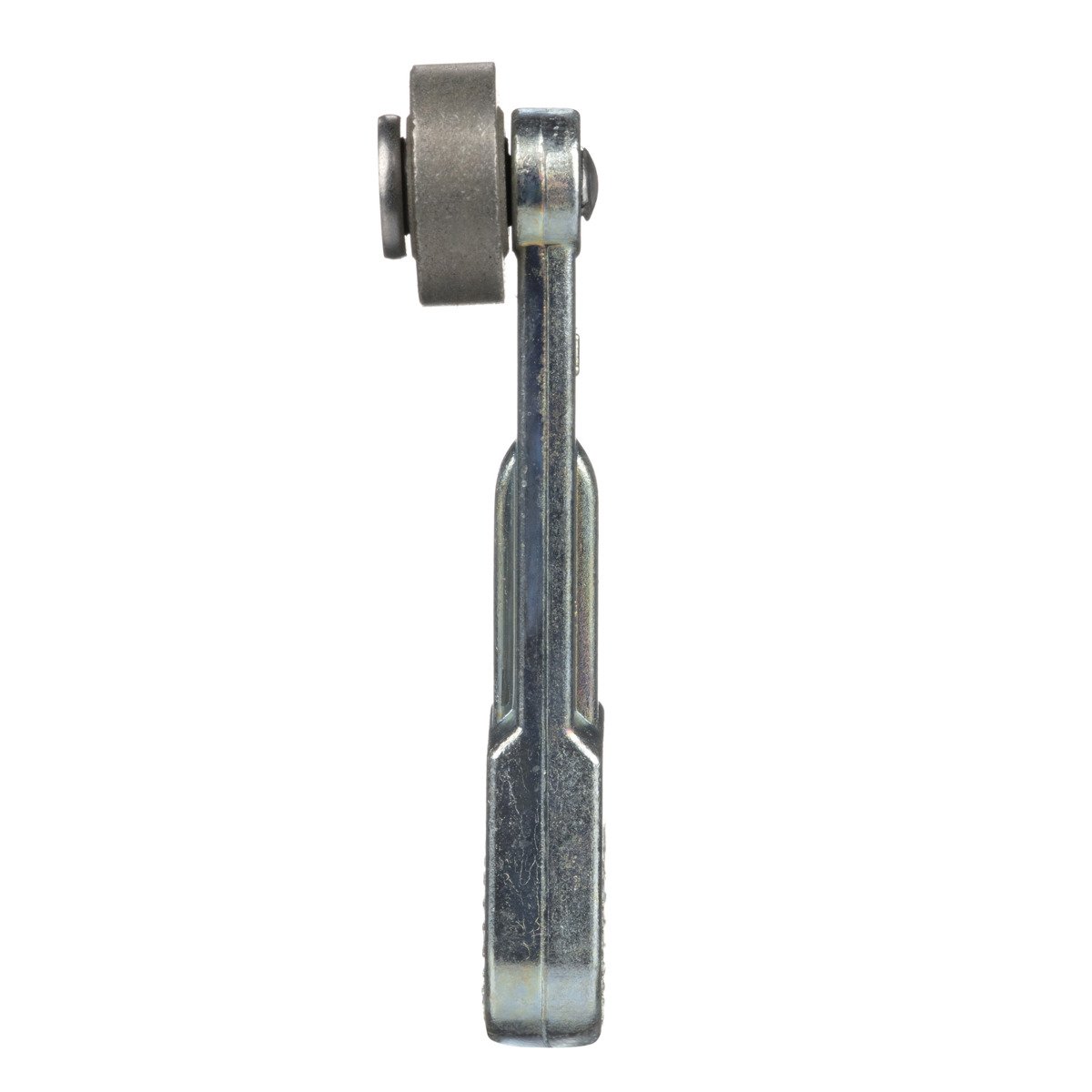

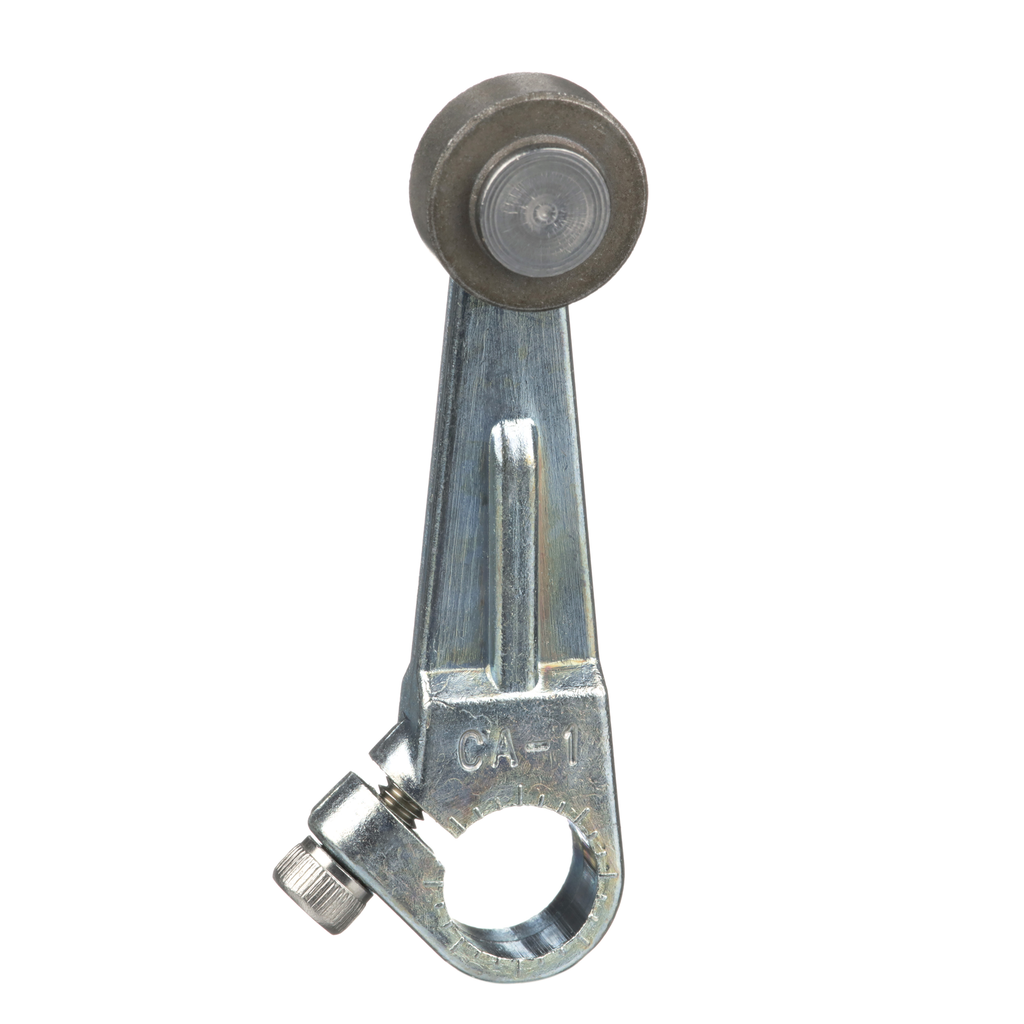

Telemecanique 9007CA1 Square D 9007CA1 2 Inch Arm 0.63 Inch Steel Roller Limit Switch Lever Arm

Product Description

The Telemecanique 9007CA1 is a limit switch lever arm designed for heavy-duty applications. This component meets both domestic and international standards. It features a robust metal body that can endure harsh industrial conditions.

• Compatible with various limit switch heads including 9007T5, 9007C, and 9007N.
• Constructed from durable cast zinc with a steel outside roller to ensure longevity.
• Dimensions include a length of two inches and an outer roller diameter of zero point six three inches.

Product Highlights

This product is well-suited for various applications such as material handling, packaging, and construction. The modular design allows for the use of multiple head types and lever arms, making it versatile and effective in different environments.

Product Information

Standard Information

• Catalog Number: 9007CA1
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Type: Limit switch lever
• Size: 2.00 inches
• Actuator: Cast zinc spring return roller lever
• Weight: 0.1 lb
• Action: Lateral approach by 30 degrees cam
• Temperature Range: -20 to 185 degrees F
• Applications: Suitable for heavy-duty operations
• Country of Origin: Mexico
