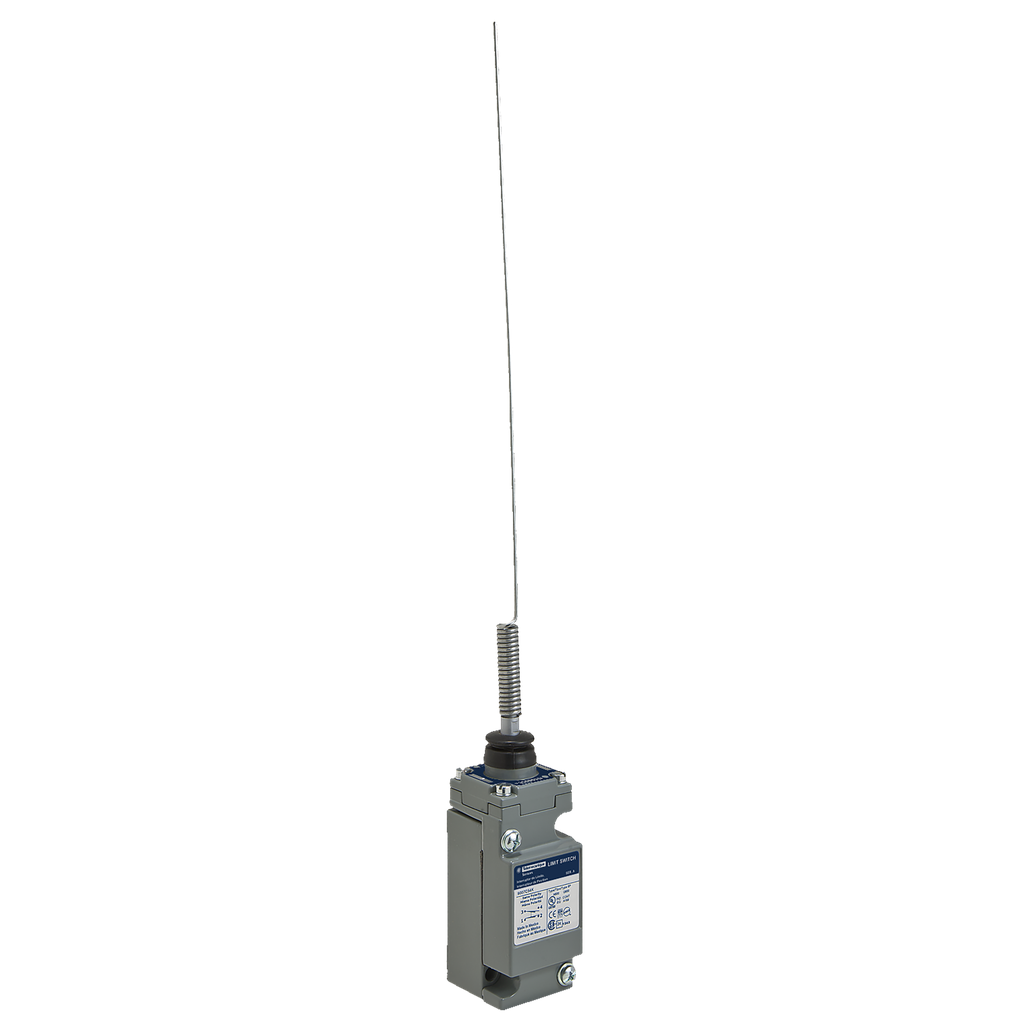

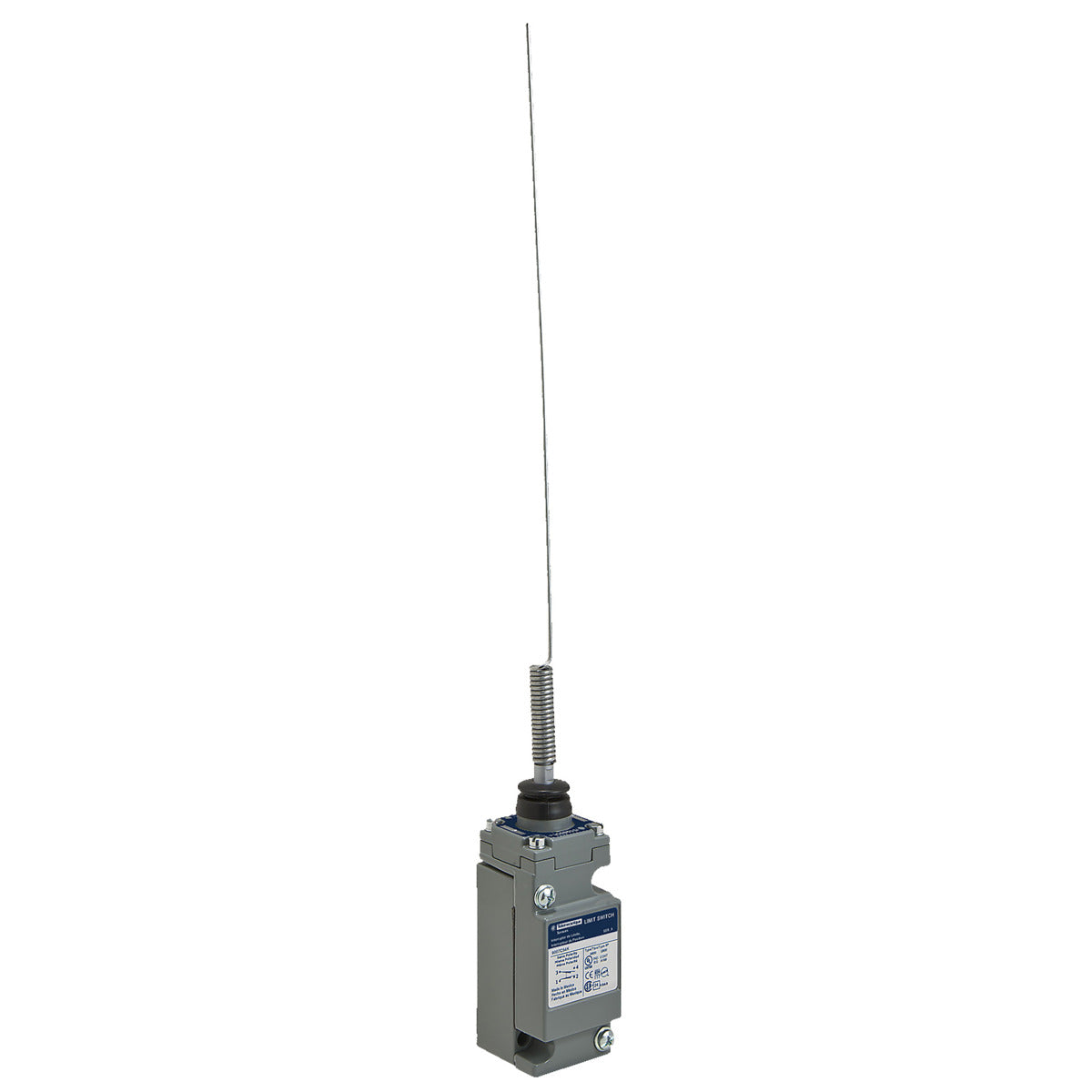

Telemecanique 9007C54KC Limit Switch 600 Volt 10 Amp 1NO 1NC Wobble Stick Plug-In Heavy Duty

Product Description

The Telemecanique 9007C54KC is a limit switch designed for heavy-duty applications. This switch converts mechanical movement into an electrical control signal. It features a single pole with double throw action, consisting of one normally closed and one normally open contact. The steel spring return wobble stick allows for multidirectional actuation, making it versatile for many applications.

• Durable construction with an estimated mechanical life of 10 million cycles
• IP67 rated and suitable for harsh environments
• Meets numerous safety and compliance standards including UL, CSA, and CE

Product Highlights

This limit switch is certified for use in various sectors like manufacturing, printing, and more, ensuring reliable operation in critical conditions.

Product Information

Standard Information

• Brand: Telemecanique
• MPN: 9007C54KC

Technical Specifications

• Voltage Rating: 1.2 A at 600 Volt AC, 0.1 A at 600 Volt DC
• Amperage Rating: 10 Amp
• Dimensions: 1.55 inches (width) x 1.79 inches (depth) x 8.14 inches (height)
• Weight: 1.25 lb
• Enclosure Rating: NEMA 1, 2, 4, 12, 13
• Operating Temperature: -20 to 185 degrees F
• Mechanical Durability: 10 million cycles
• Electrical Durability: 1 million cycles
