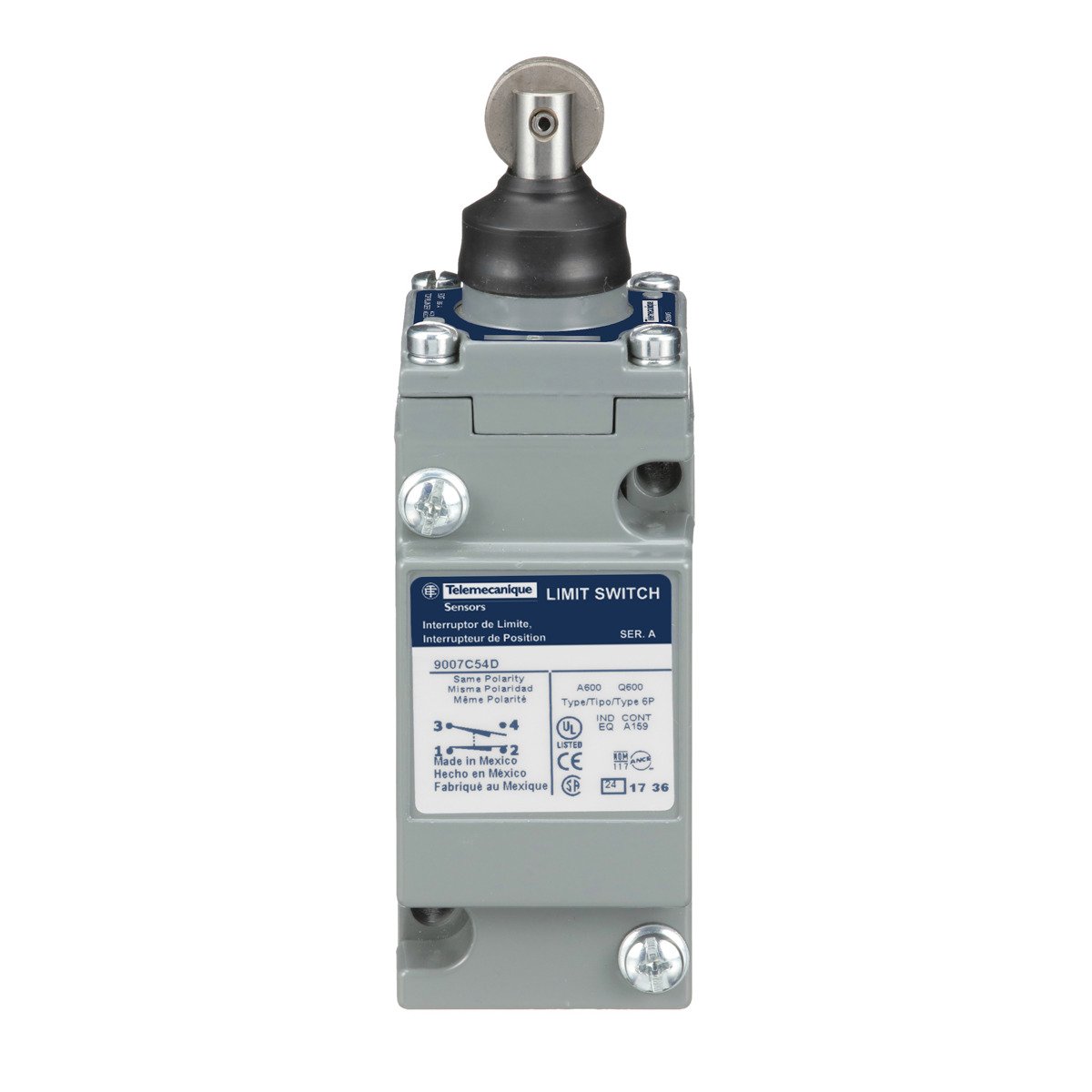

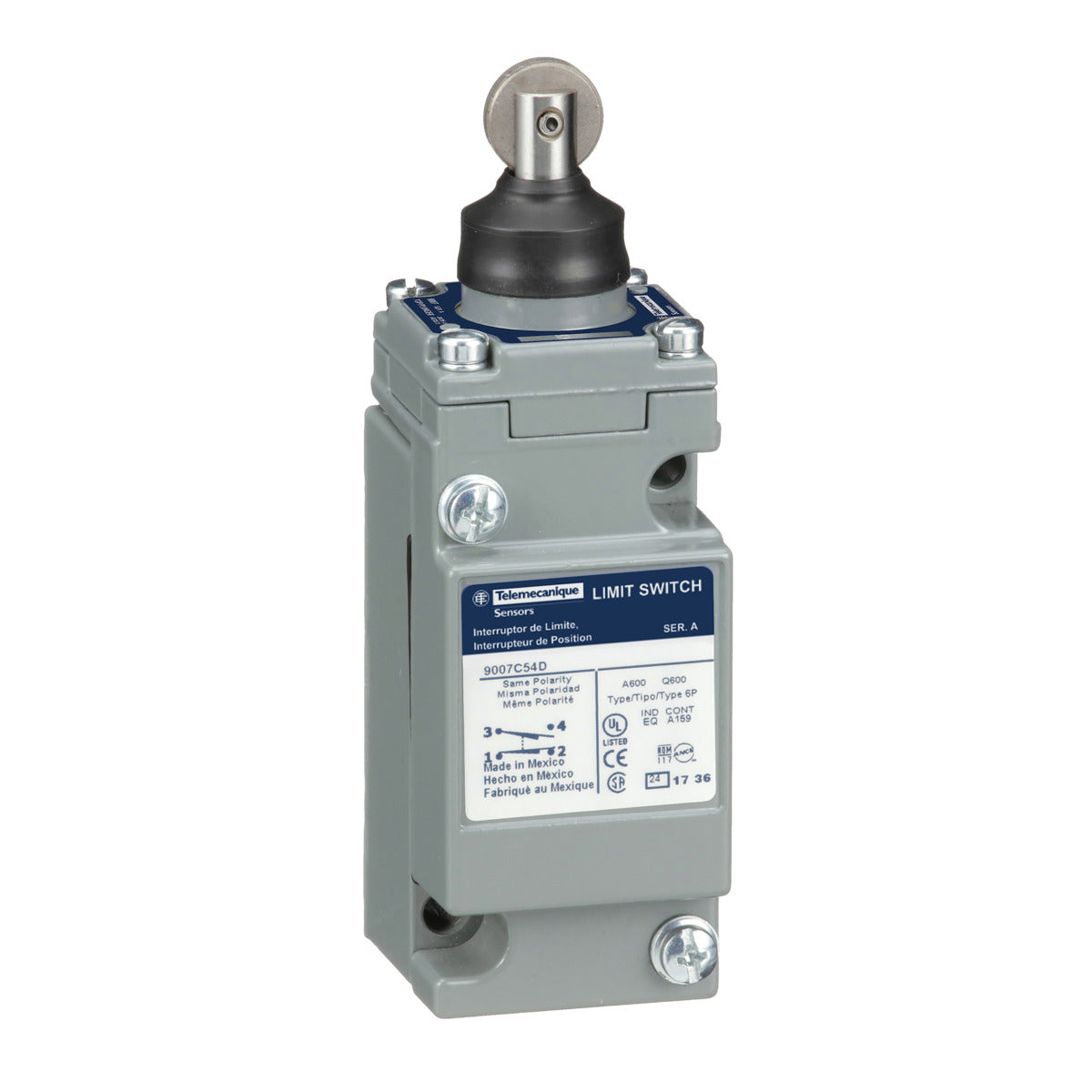

Telemecanique 9007C54D Limit Switch 600 Volt 10 Amp 1NO 1NC Wobble Stick Delrin Plug-In Heavy Duty

Product Description

The TELEMECANIQUE 9007C54D is a NEMA heavy-duty industrial limit switch designed to meet domestic and international standards. The metal body withstands heavy industry impact. This modular limit switch line features five body types and multiple head and lever arm options. It is UL Listed and CSA certified, suitable for applications like material handling, packaging, and conveying.

• Metal body withstands heavy industry impact
• Screw clamp terminals for electrical connection
• IP67 and NEMA 1/2/4/12/13 rated

Product Highlights

This limit switch offers mechanical durability of about 10 million operating cycles and electrical durability of about 1 million operating cycles.

Product Information

Standard Information

• Brand: TELEMECANIQUE
• Manufacturer Part Number: 9007C54D
• Country of Origin: Mexico

Technical Specifications

• Type: Limit switch
• Brand: Telemecanique
• Action: Snap action;By 30? cam
• Voltage Rating: 1.2 A 600 Volt AC, A600 NEMA-0.1 A 600 Volt DC, Q600 NEMA
• Actuator Type: Roller Plunger
• Amperage: 10 Amp
• Material: Metal
• Body Type: Plug-in
• Enclosure: NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
• Head Type: Plunger head
• Sub Brand: 9007C
• Cable Entry: 1 entry for 1/2" - 14 NPT ANSI B1.20.1
• Applications: Standard box
• Body Material: Zinc
• TC Connection: SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
• Contact Rating: NEMA A600/Q600
• Number of Poles: 1 Pole
• Contact Material: Silver
• Operating Cycles: 1M
• Country of Origin: Mexico
• Storage Temperature: -20-185 degrees F
• Contact Configuration: NC-NO
• Operating Temperature: -20-185 Adegrees F STANDARD ENVIRONMENT
• Environmental Conditions: STANDARD ENVIRONMENT
• Actuator: Steel spring return roller plunger -)
• Amperage Rating: 10
• Application: Standard box
• Connection: Screw-clamp terminals AWG 22...AWG 12), 1-2
• Mounting: By The Body
• Special Features: without
• Standard: 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
• Item Type: Limit switch
• Voltage: 600 V
• Series: 9007C Series
• Termination: screw
• AC Contact Rating: 10 A @ 600 V
• Actuator Length: 0.95 in
• Actuator Location: Top
• Actuator Style: Roller Plunger
• Body Configuration: Plug-In
• Body Depth: 1.14 in
• Body Height: 2.5 in
• Body Material Type: Metallic
• Body Width: 0.83 in
• Boot Sealed Actuator: No Boot
• DC Contact Rating: 10 A @ 600 V
• Directional Movement: Linear
• Electrical Connection: Screw Clamp Terminals
• IP Rating: IP67
• Mounting Hole Diameter - NEW: 0.2 in
• Mounting Hole Horizontal Center to Center Distance: 30 mm
• Mounting Hole Vertical Center to Center Distance: 60 mm
• Mounting Style: Surface
• NEMA Enclosure Rating: 1; 2; 4; 6; 6P; 12; 13
• Number of Mounting Holes: 2
• Operating Temperature - Maximum: 185 °F
• Operating Temperature - Minimum: -20 °F
• Operating Torque - Maximum: 4 in-lb
• Overall Depth: 1.79 in
• Overall Height: 4.98 in
• Overall Width: 1.55 in
• Pretravel: 0.08 in
• Resistance Properties: Shock Resistant; Vibration Resistant
• Roller Diameter: 0.63 in
• Roller Material: Steel
• Roller Width: 0.12 in
• Standards: C22-2-14-95; CE; CSA; EN 60947-1; EN 60947-5-1; IEC 60947; NEMA 250; UL 508; UL Listed
• UNSPSC: 39121509
• Range of product: 9007
• Series name: Heavy duty
• Product or component type: Limit switch
• Product specific application: Standard box
• Device short name: 9007C
• Fixing mode: By the body
• Movement of operating head: Linear
• Type of operator: Steel spring return roller plunger (-)
• Switch actuation: By 30° cam
• Type of approach: Lateral approach, 2 directions
• Electrical connection: Screw-clamp terminals (AWG 22...AWG 12), 1-2
• Contacts type and composition: NC-NO
• Contact operation: Snap action
• Positive opening: Without
• Head material: Zinc
• Function available: Not applicable
• Switch function: SPDT-DB
• Contact form: Form Z
• Terminals description ISO n°1: (1-2)NC (3-4)NO
• Repeat accuracy: +/- 0.001 in linear travel of cam
• Local signalling: without
• Shock resistance: 60 gn for 9 ms conforming to IEC 60068-2-27
• Vibration resistance: 25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
• NEMA degree of protection: NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
• IP degree of protection: IP67 conforming to IEC 60529
• Electrical shock protection class: Class 0 conforming to IEC 61140
• Protective treatment: Epoxy powder coat
• Model: 9007C54D
