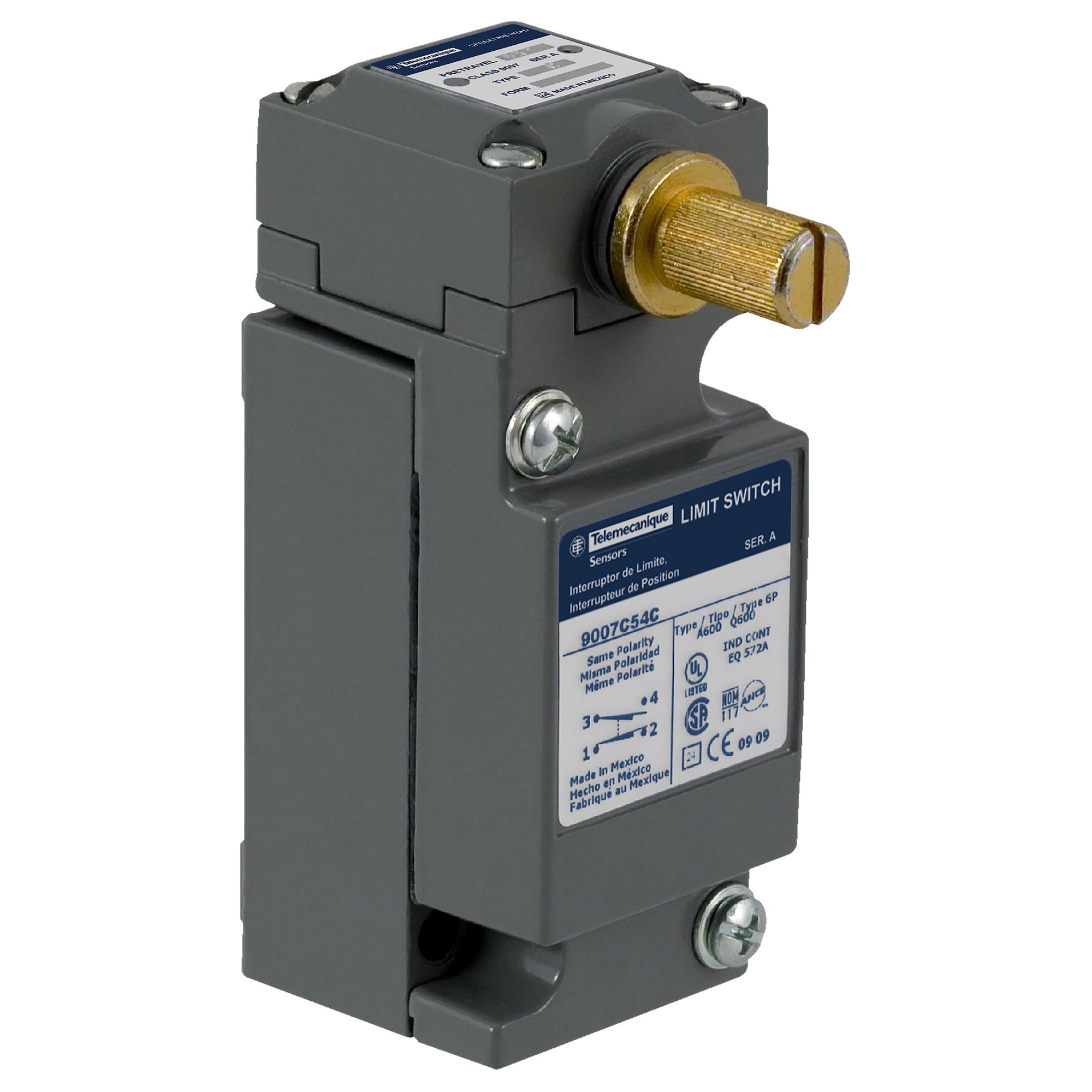

Telemecanique 9007C54C Limit Switch 600 VAC 10 Amp 1NO 1NC Rotary Lever Arm Plug-In

Product Description

The Telemecanique 9007C54C is a limit switch designed for heavy duty applications. This product is built to translate mechanical motion into an electrical control signal. It features one normally closed and one normally open contact, using a single pole double throw design. The switch includes snap action contacts and a zinc stay-put mechanism which allows for a lateral approach. It can actuate in clockwise and counterclockwise directions.

• Rated for 600 VAC and 10 Amperes
• Durable with a mechanical lifespan of 10 million cycles
• IP67 rated for dust and water resistance

Product Highlights

This limit switch is suitable for various industrial applications, including use in machinery for plastic, rubber, molding, and textile processes. It is a trusted component certified by UL, CSA, and CE, meeting several international standards.

Product Information

Standard Information

• Catalog Number: 9007C54C
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Voltage Rating: 1.2 A at 600 V AC
• Amperage Rating: 10 Amp
• Body Type: Plug-in
• Enclosure Rating: NEMA 1, 2, 4, 12, 13
• Operating Temperature: -20 to 185 degrees F
• Actuator Type: Zinc stay put without operating lever
• Contact Configuration: NC-NO; Form Z
• Number of Poles: 1
