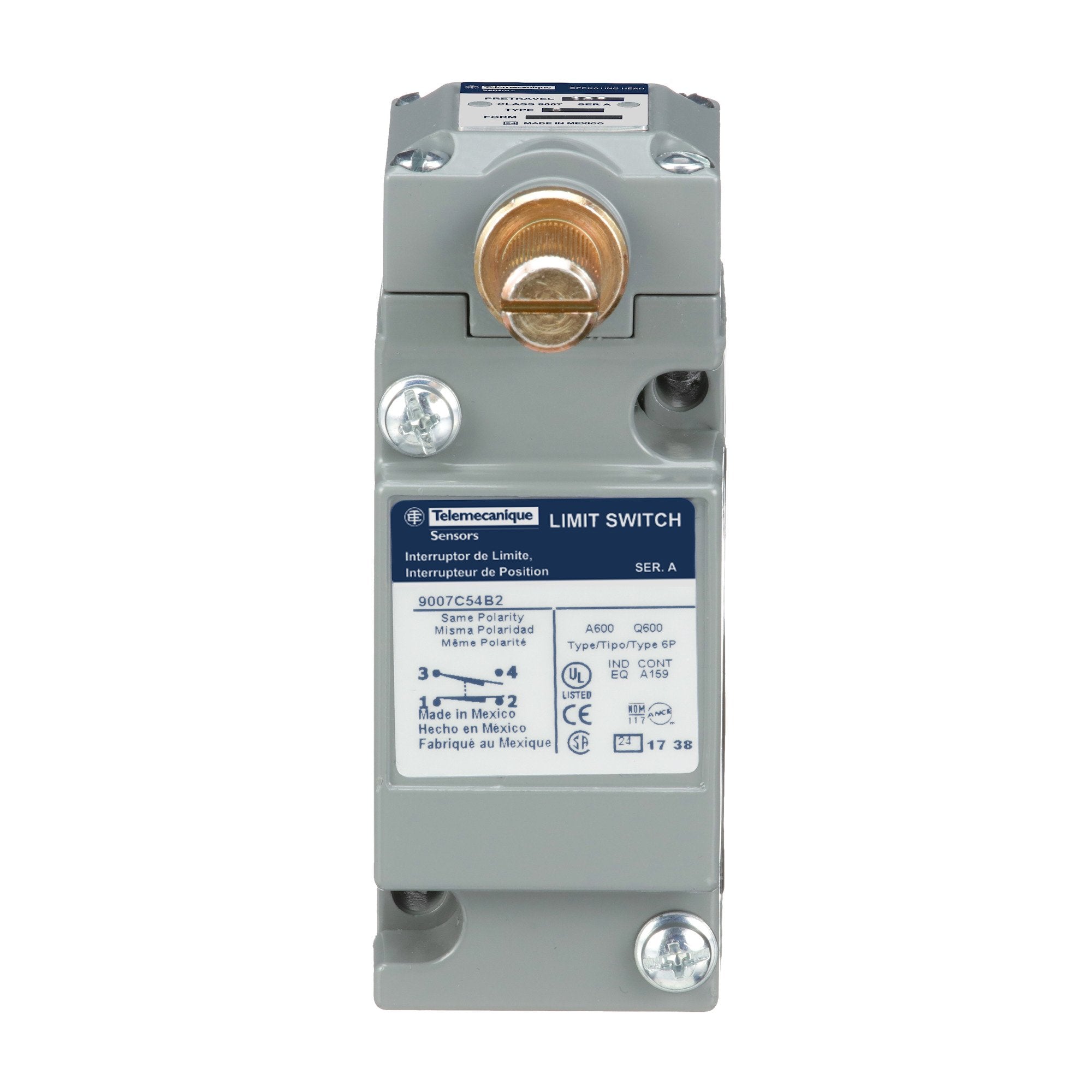

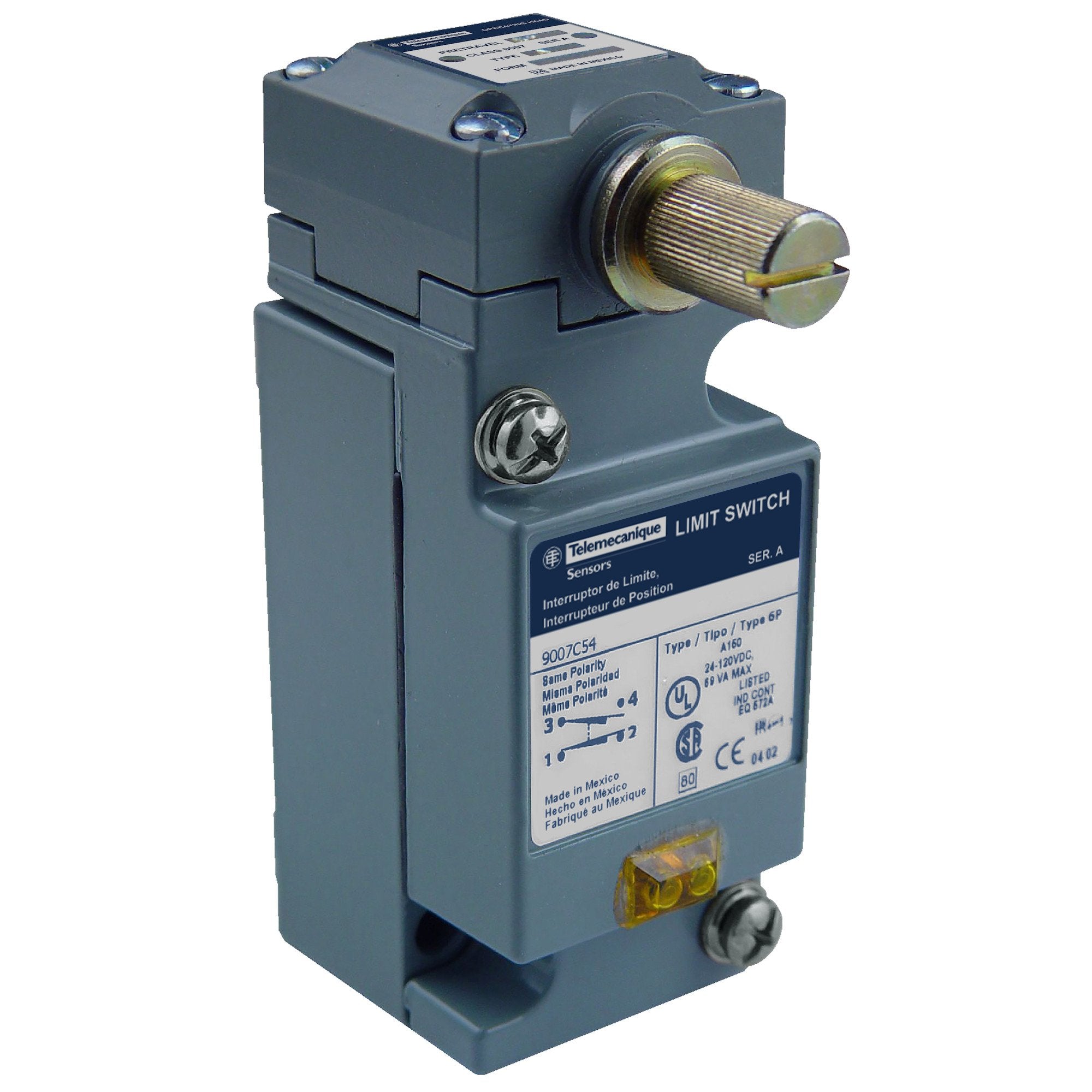

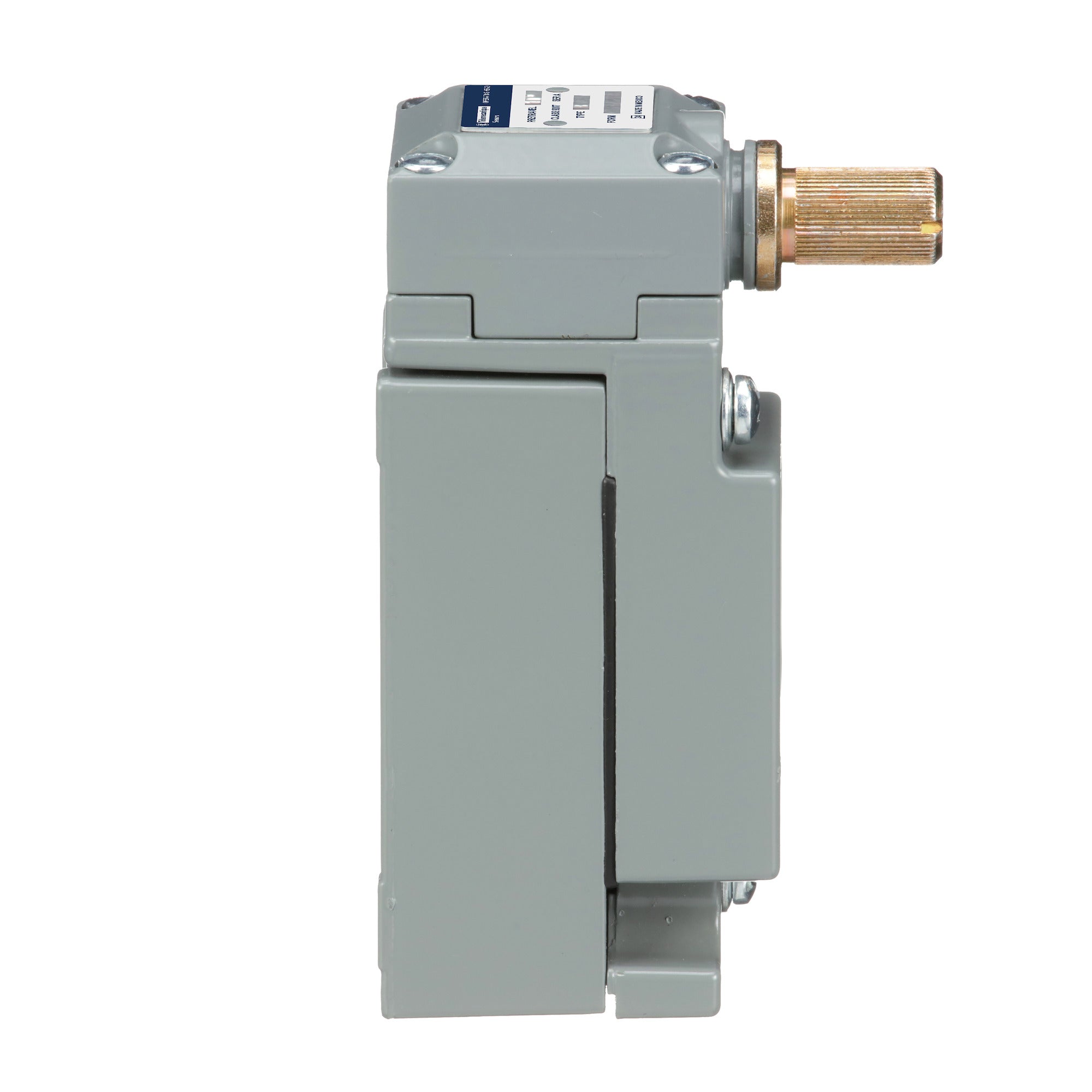

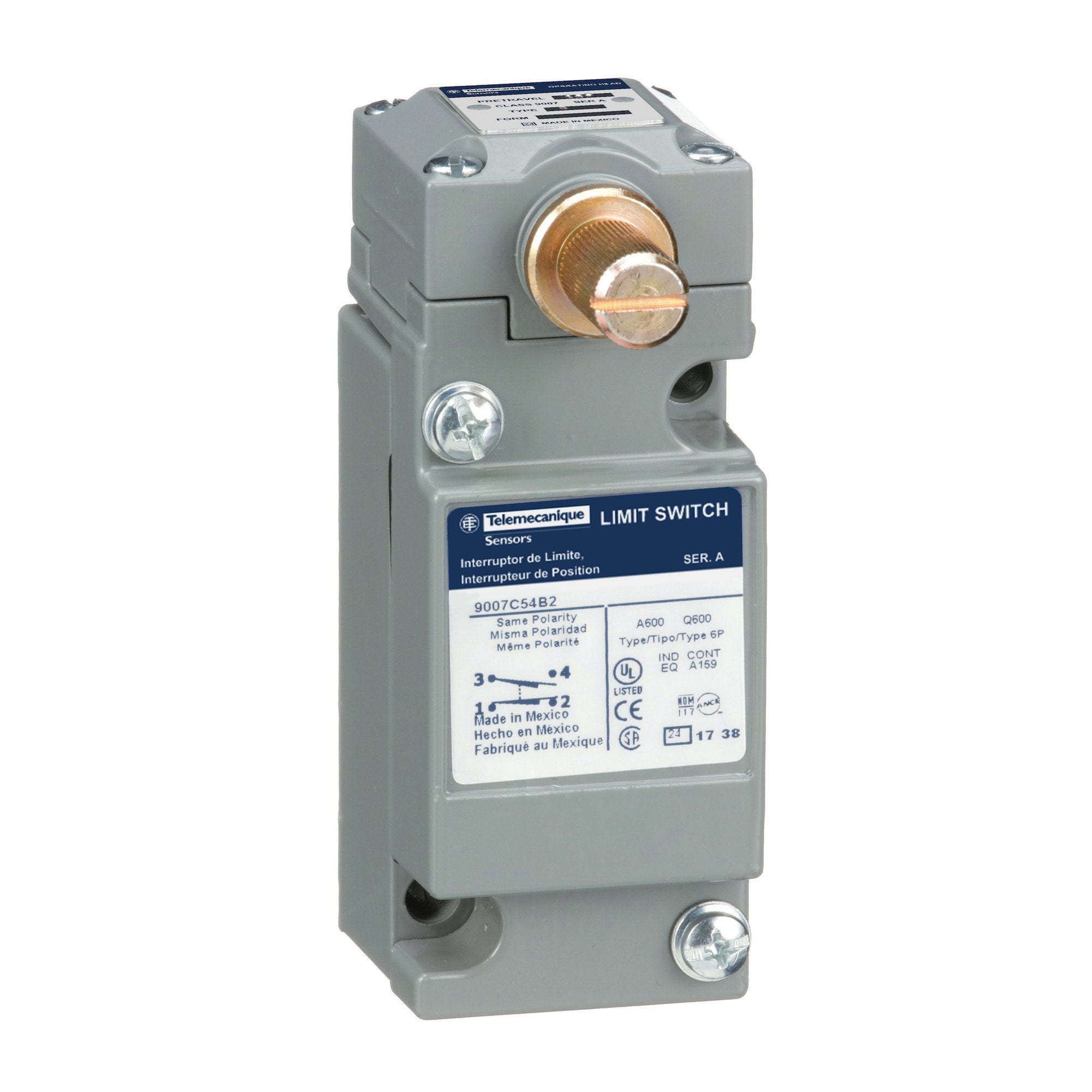

Telemecanique 9007C54B2 Heavy Duty Limit Switch 600 VAC 10 Amp 1NO 1NC

Product Description

The Telemecanique 9007C54B2 is a heavy duty limit switch designed for industrial applications. This limit switch has a rotary lever arm and operates at 600 volts AC and DC. The device includes one normally open and one normally closed contact. It features snap action contacts, providing reliable performance in demanding environments. This switch is ideal for various uses including machine tools and automation systems.

• NEMA rated for durability and protection
• Compatible with different cable sizes for easy installation
• Designed for use in challenging industrial conditions

Product Highlights

The 9007C54B2 is built with a robust metal body, rated for an operational temperature range of negative twenty to one hundred eighty-five degrees Fahrenheit. It has a mechanical durability of ten million cycles.

Product Information

Standard Information

• Catalog Number: 9007C54B2
• Brand: Telemecanique

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 10 A
• Contact Configuration: 1NO-1NC
• Contact Rating: NEMA A600/Q600
• Operating Cycles: 1 million
• Weight: 1.25 lb
• Material: Metal
• Enclosure Rating: NEMA 1/2/4/6/6P/12/13
