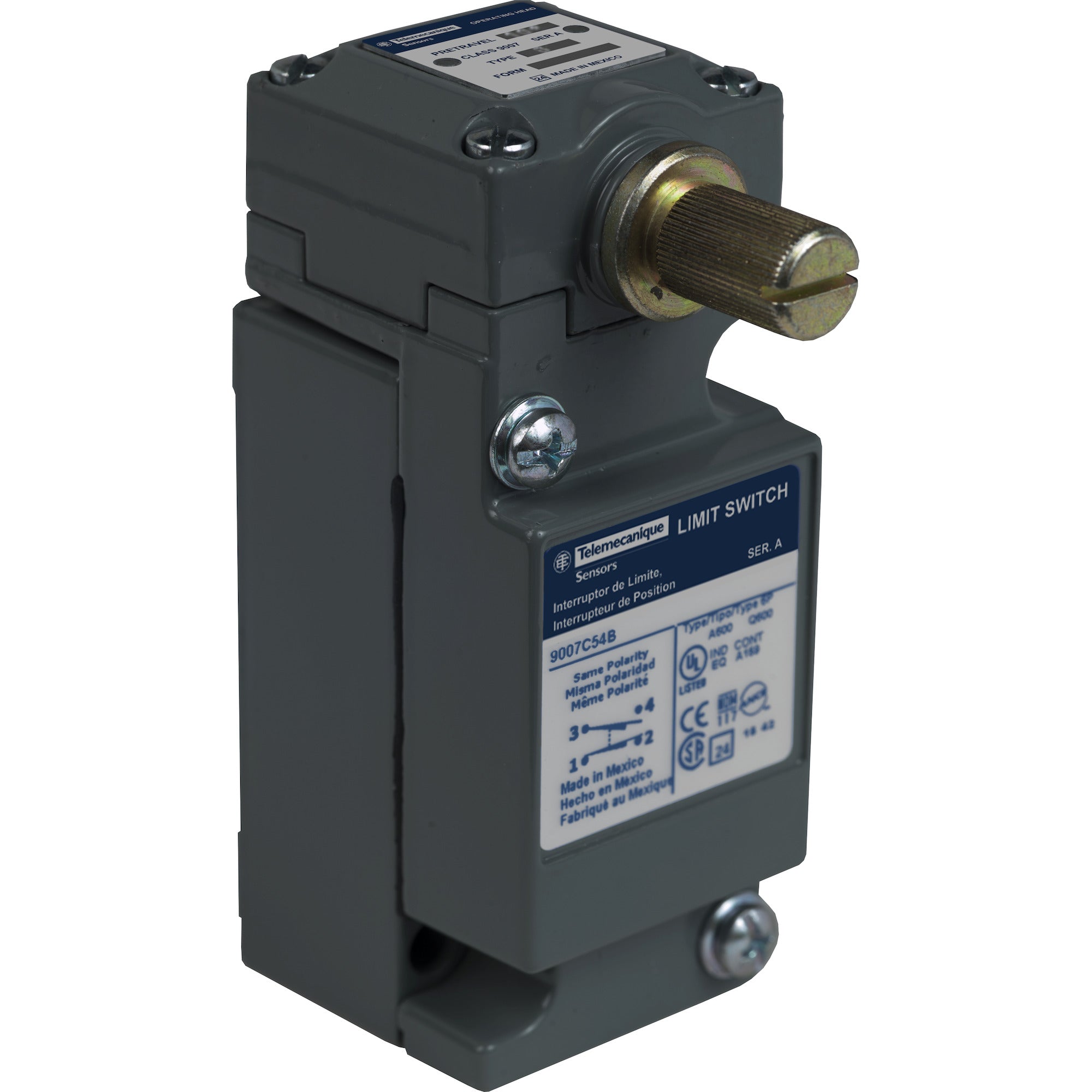

Telemecanique 9007C54B Rotary Lever Arm Heavy Duty Limit Switch 10 Amp 600 VAC

Product Description

The Telemecanique 9007C54B is a heavy-duty limit switch designed for robust industrial applications. This limit switch operates at 600 VAC and can handle up to 10 amperes. It includes one normally open and one normally closed contact, ensuring versatility in operation. The lever head features a large diameter shaft and is equipped with a Viton Quadring shaft seal, providing dust and watertight integrity. The standard body design allows it to fit into a variety of installations.

• Heavy-duty design for industrial use
• NEMA rated for various environments including IP67
• 0.50 inch conduit entry with 14 NPT

Product Highlights

This switch is ideal for applications that require high reliability in harsh environments. It features a differential of four degrees of travel and utilizes snap-action contacts for dependable performance.

Product Information

Standard Information

• Catalog Number: 9007C54B
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Type: Rotary Head
• Amperage Rating: 10 Amp
• Voltage Rating: A600/Q600
• Connection: 0.5 inch NPT conduit entrance
• Contact Configuration: 1 NO/1 NC
• Operating Temperature: -20F to 185F
• Country of Origin: France
• Warranty Length: 18 months
