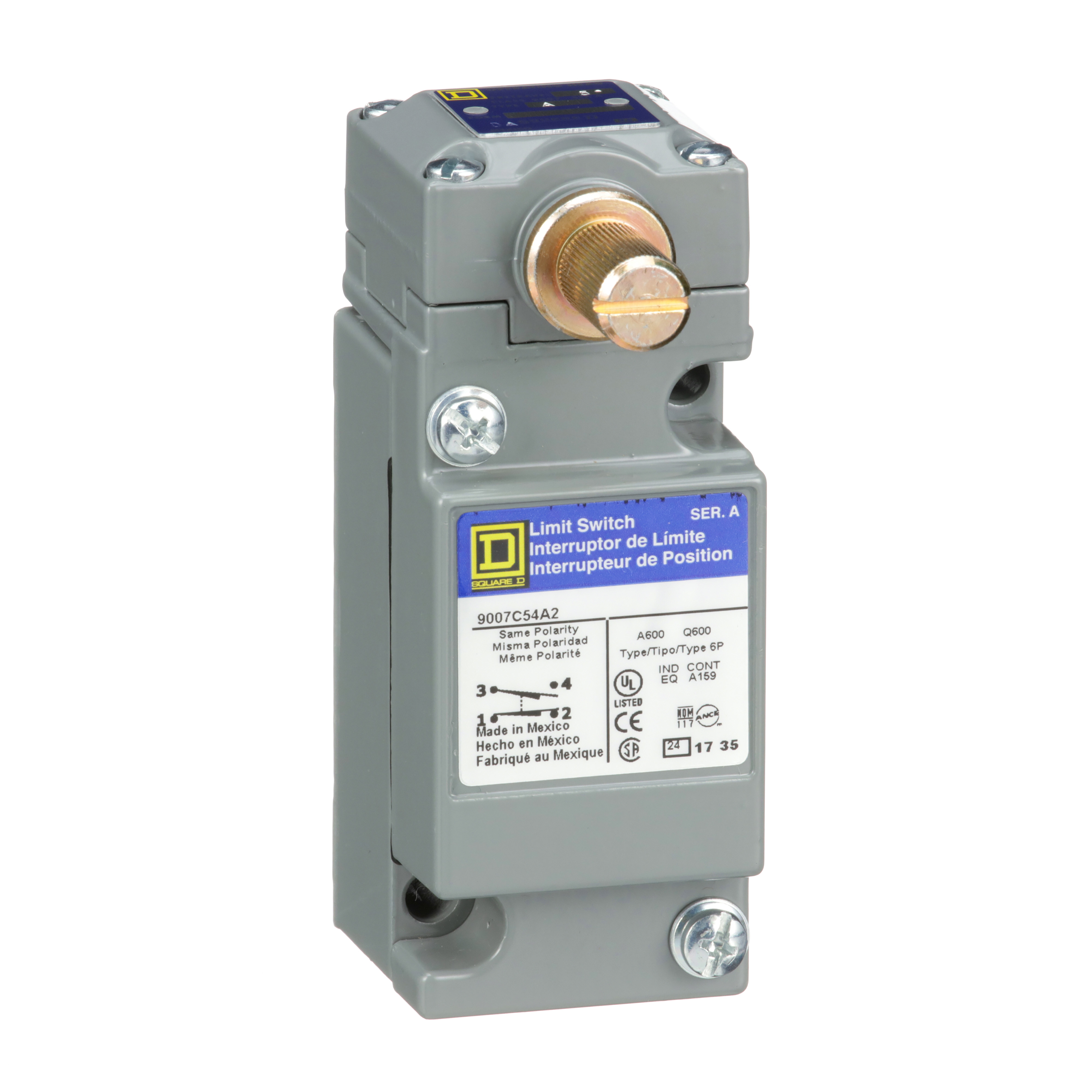

Telemecanique 9007C54A2 Square D Limit Switch 600 VAC 10 Amp

Brand: TELEMECANIQUE
SKU: 9007C54A2
Availability: Out Of Stock
$345.43
$345.43
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The TELEMECANIQUE 9007C54A2 Square D limit switch is a NEMA heavy-duty industrial limit switch designed to meet domestic and international standards. The metal body withstands heavy industry impact. It is furnished with screw clamp terminals for electrical connection. This safety switch has a rated operating current of 1.2A at 600V AC and 0.1A at 600V DC and a conventional enclosed thermal current of 10A.

  • Metal body withstands heavy industry impact
  • Screw clamp terminals for electrical connection
  • IP67 and NEMA 1/2/4/6/6P/12/13 rated

Product Highlights

This modular limit switch is UL Listed, CSA certified and CE certified. Suitable for machine tools, plastic, rubber, moulding, printing, textile, pulp, paper and wood applications.

Product Information

Standard Information

  • Brand: TELEMECANIQUE
  • Manufacturer Part Number: 9007C54A2
  • Country of Origin: Mexico
Technical Specifications
GTIN
00785901500728
Type
Limit switch
Brand
Telemecanique
Depth
2-1/2 Inch
Action
Snap
Height
4.02-4.02 Inch
Actuator
ZINC SPRING RETURN WITHOUT OPERATING LEVER LOW DIFFERENTIAL)9007C LEVER
Amperage
10 Amp
Material
Metal
Body Type
Plug-in
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Head Type
Rotary head
Sub Brand
9007C
Cable Entry
1 entry for 1/2" - 14 NPT ANSI B1.20.1
Product UPC
78590150072
12-Digit UPC
785901500728
Applications
Standard box
Body Material
Zinc
TC Connection
SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
Contact Rating
NEMA A600/Q600
Number of Poles
1 Pole
Contact Material
Silver
Operating Cycles
1000000
Country of Origin
Mexico
Storage Temperature
-20-185 degrees F
Contact Configuration
NC-NO
Operating Temperature
-20-185 Adegrees F STANDARD ENVIRONMENT
Environmental Conditions
STANDARD ENVIRONMENT
Amperage Rating
10 A
Connection
Screw-clamp terminals AWG 22...AWG 12), 1-2
Mounting
By The Body
Special Features
without
Standard
25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
Item Type
Limit switch
Voltage Rating
600 VAC
Series
9007
Mounting Type
Surface
Approval
UL, CSA, CE, EN, IEC
Terminal Connection
Screw Clamp
Nema Rating
1, 2, 4, 6, 6P, 12, 13
Length (in)
2.5
Height (in)
4.02
Wire Gauge
AWG 22 to AWG 12
Temperature Rating
-20 to 185 °F
Duty Rating
Heavy Duty
Actuator Type
Rotary Head
Poles
1
AC Contact Rating
10 A @ 600 V
Actuator Location
Side
Body Configuration
Plug-In
Body Depth
1.14 in
Body Height
2.5 in
Body Style
X
Body Width
0.83 in
Boot Sealed Actuator
No Boot
Included
No Boot
DC Contact Rating
10 A @ 600 V
Directional Movement
CCW/CW
Electrical Connection
Screw Clamp Terminals
IP Rating
IP67
Includes Actuator
No Actuator Included
Mounting Hole Diameter
0.2 in
Mounting Hole Horizontal Center to Center Distance
30 mm
Mounting Hole Vertical Center to Center Distance
60 mm
Operating Temperature - Maximum
185 °F
Operating Temperature - Minimum
-20 °F
Operating Torque - Maximum
4 in-lb
Overall Depth
2.5 in
Overall Height
4.02 in
Overall Width
1.55 in
Pretravel
5°
Resistance Properties
Shock Resistant; Vibration Resistant
Standards
C22-2-14-95; CE; CSA; EN 60947-1; EN 60947-5-1; IEC 60947; NEMA 250; UL 508; UL Listed
Total Travel
90°
UNSPSC
39121509
Contact Operation
Snap action
Head Material
Zinc
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Electrical shock protection class
Class 0 conforming to IEC 61140
Protective treatment
Epoxy powder coat
Alternate Catalog Number
9007C54A2
Application
Standard box
Connection Type
Screw Clamp
Enclosure Type
NEMA 2/4/6/6P/12/13/IP67
Finish
Epoxy Powder Coated
Voltage
1.2 A 600 Volt AC, A600 NEMA-0.1 A 600 Volt DC, Q600 NEMA
