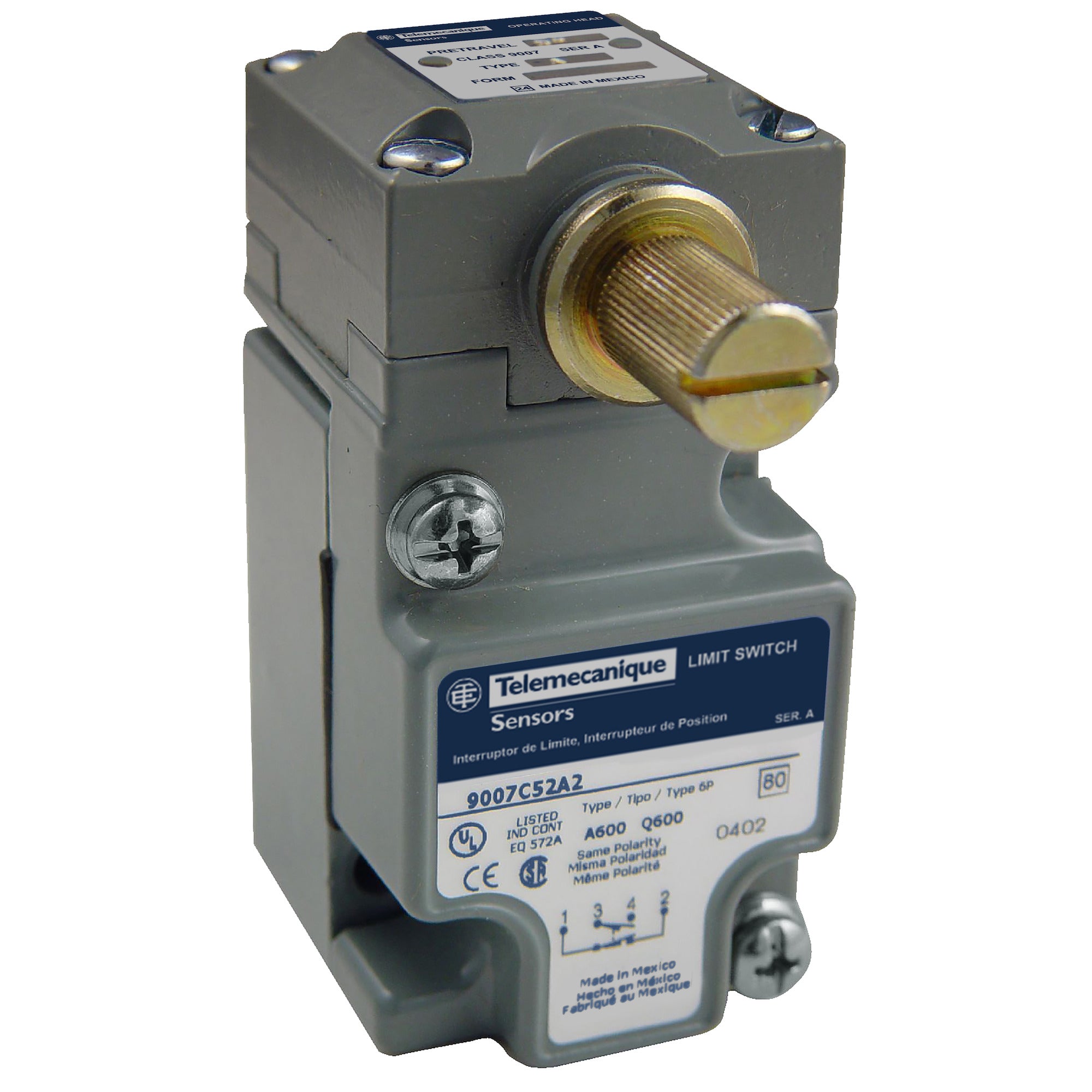

Telemecanique 9007C52N2 Rotary Lever Arm Plug-In Heavy Duty Limit Switch

Product Description

The Telemecanique 9007C52N2 is a rotary lever arm limit switch designed for heavy-duty applications. This limit switch is suitable for use in various industrial environments due to its robust construction. It features a compact body and receptacle, making it easy to install in tight spaces. The device includes one normally open and one normally closed contact, with snap action that changes the state when the lever arm is operated in either direction.

• Suitable for a wide range of industrial applications
• Robust design with a Viton Quadring shaft seal for dust and watertight operation
• NEMA rated and UL listed for enhanced reliability

Product Highlights

This limit switch is rated for NEMA 1, 2, 4, 6, 6P, 12, and 13 environments. It is designed to withstand harsh conditions and has a height of three point fourteen inches, width of one point fifty five inches, and depth of two point five inches. The switch has a conduit entry of zero point five inches with NPT threads and offers a light operating torque requiring just twenty-five ounce-in of force to activate.

Product Information

Standard Information

• Catalog Number: 9007C52N2
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Type: Limit switch
• Brand: Telemecanique
• Height: 3.14 inches
• Width: 1.55 inches
• Depth: 2.50 inches
• Voltage Rating: 600 V AC
• Amperage Rating: 10 Amps
• Weight: 1.25 lb
• Operating Temperature: -20 to 185 degrees F
• Environmental Conditions: Standard environment
