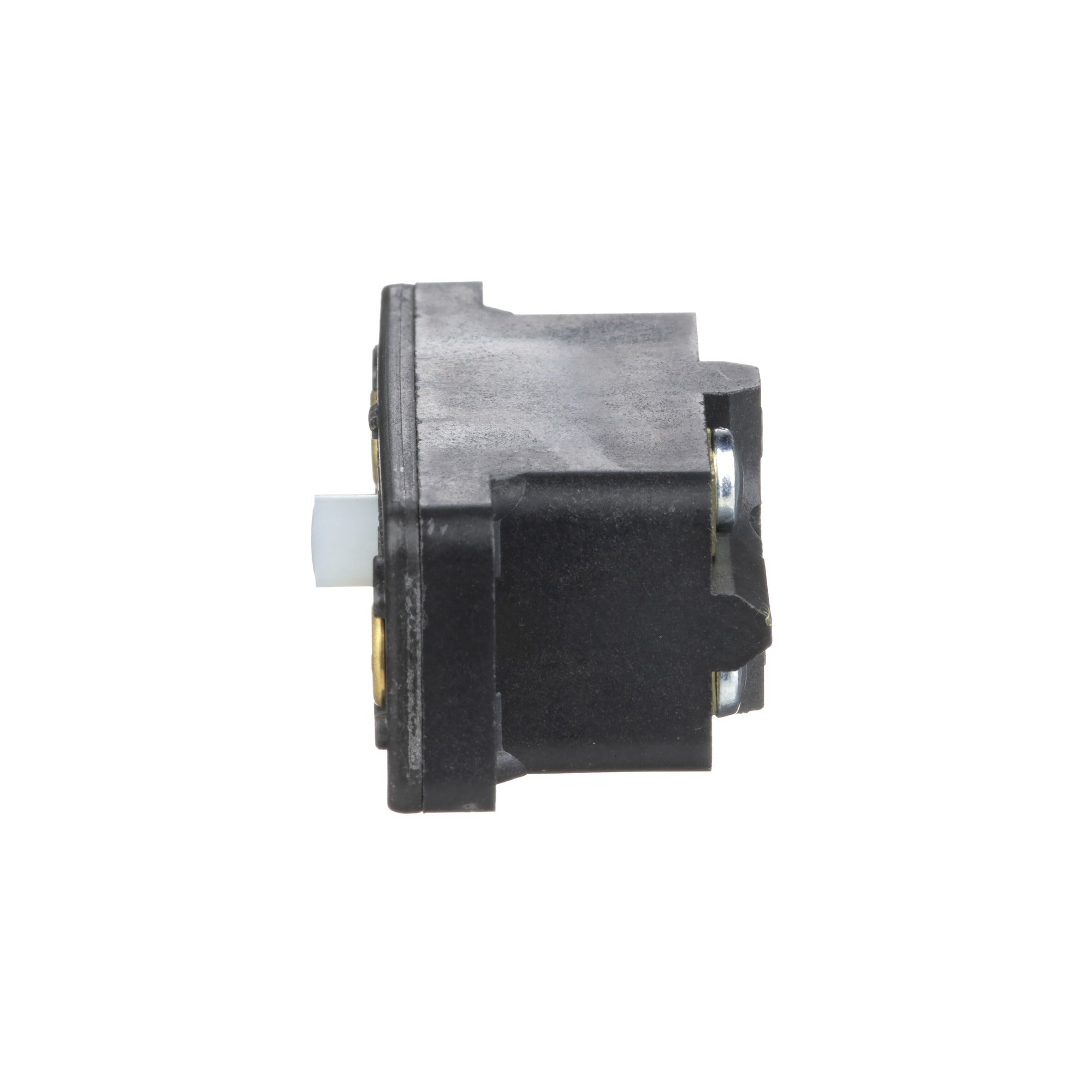

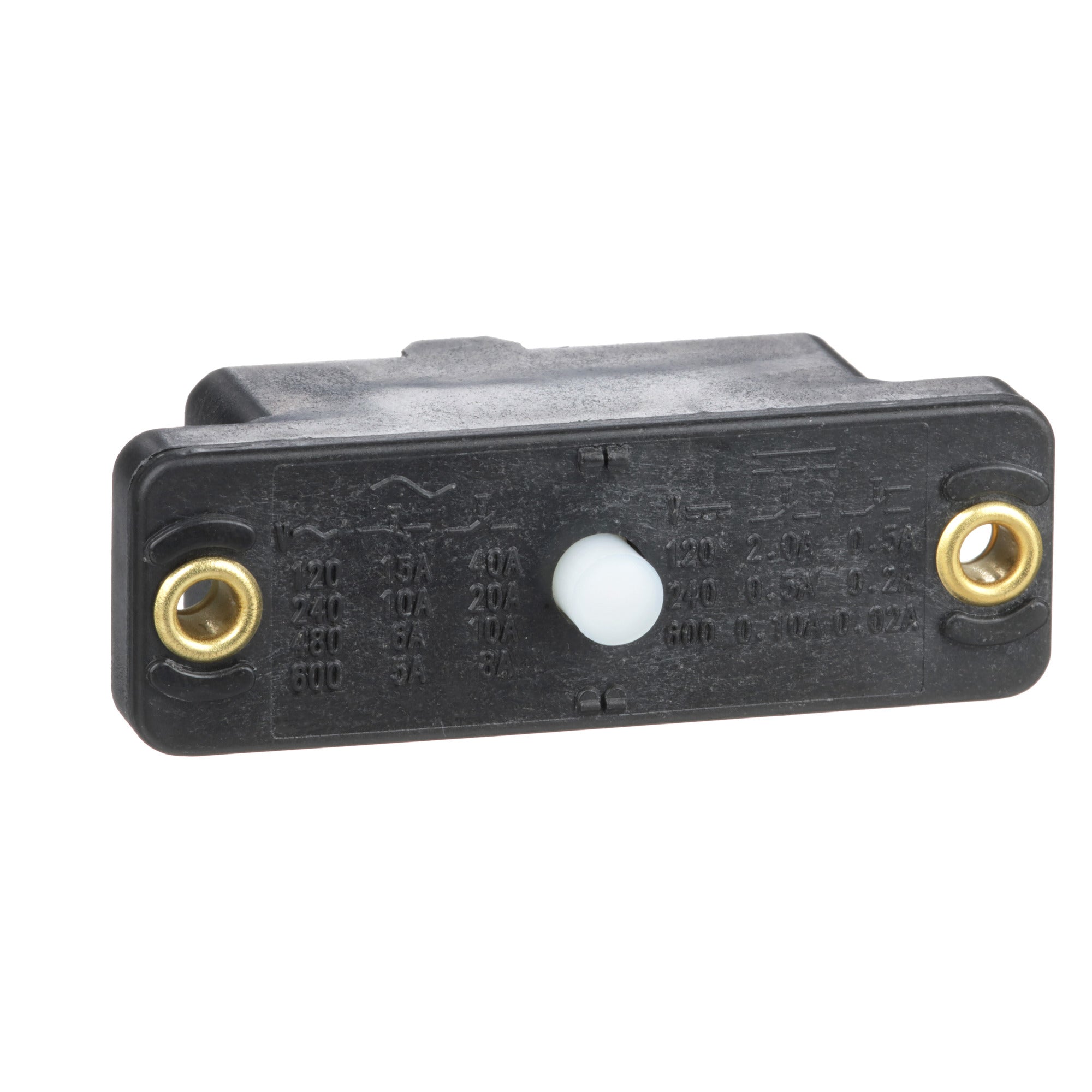

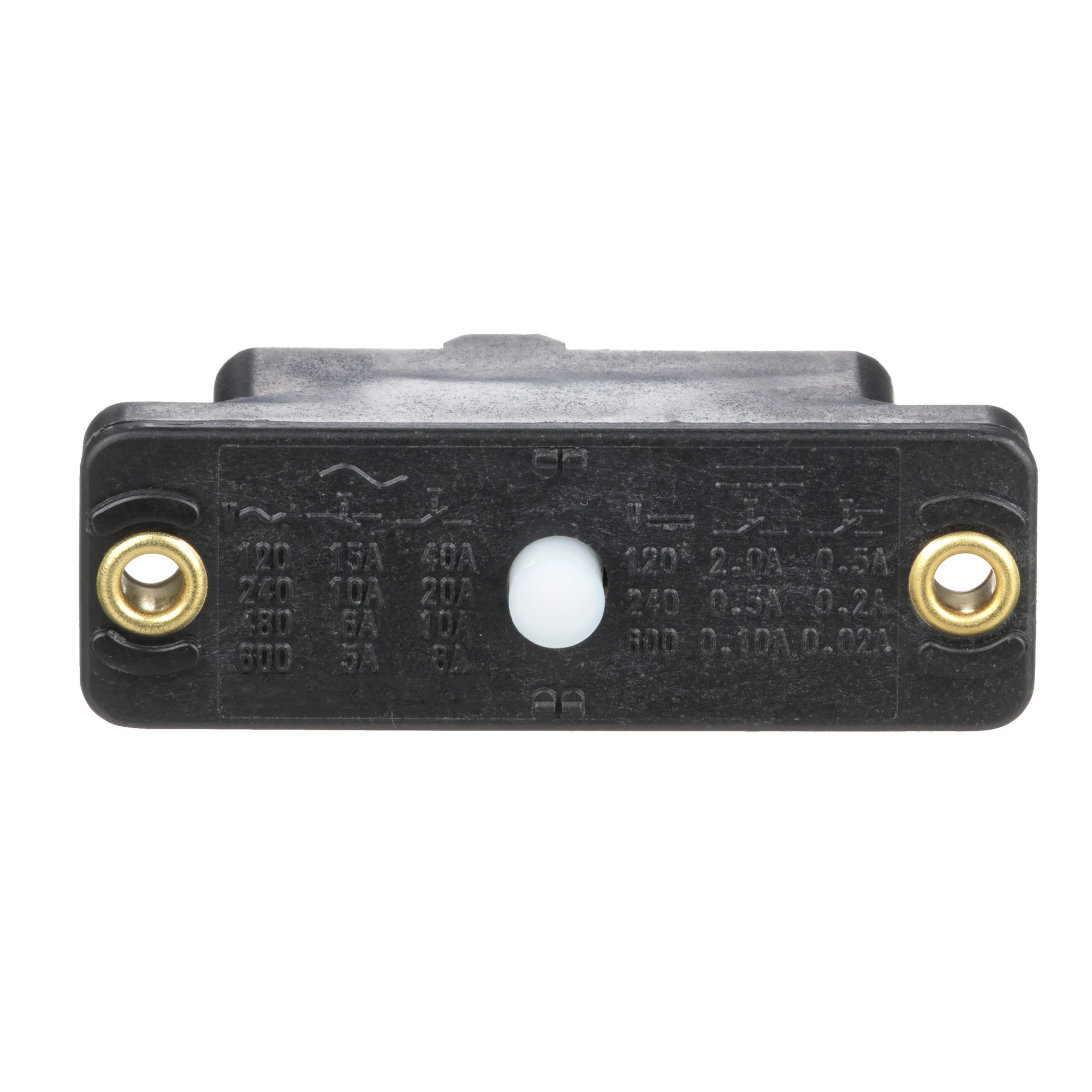

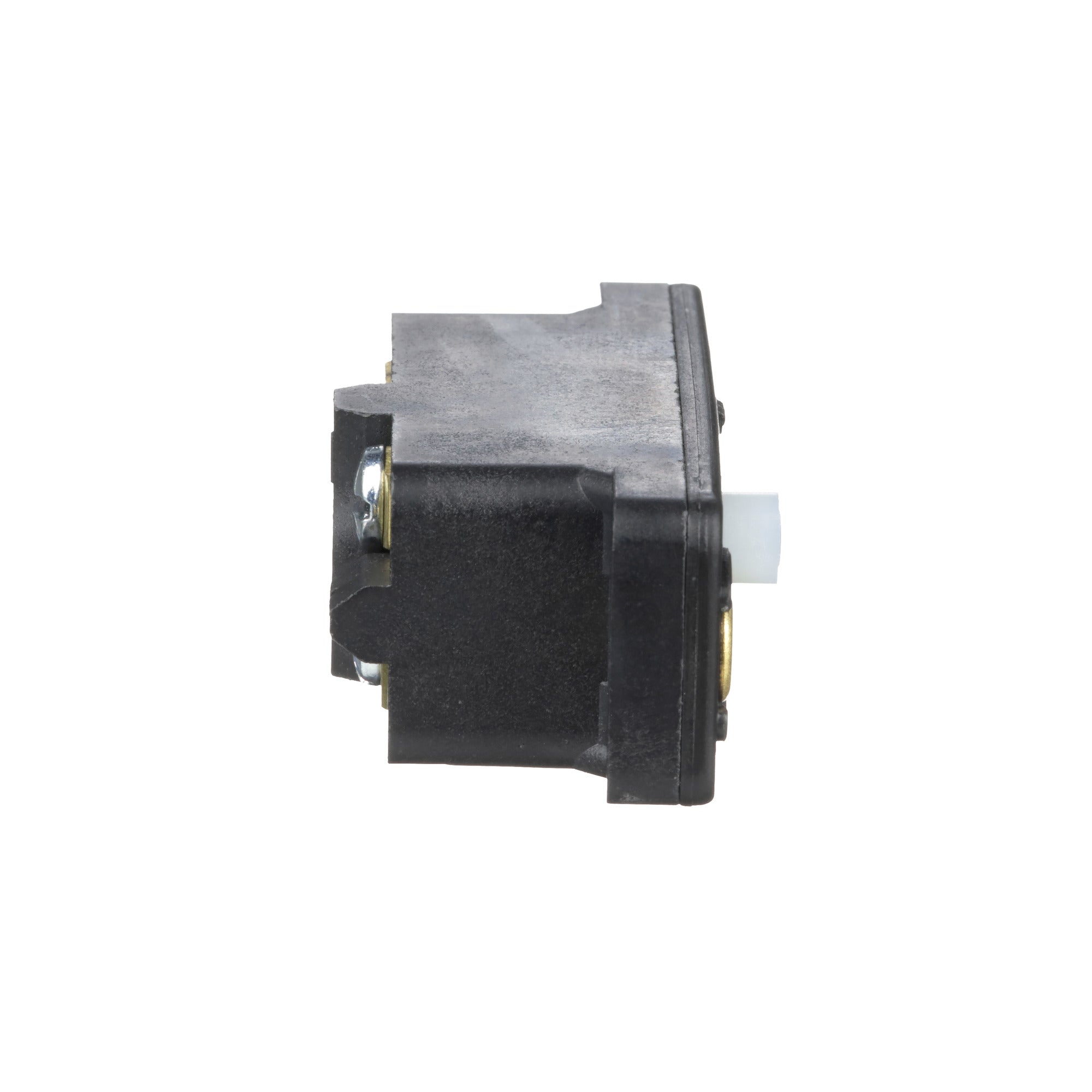

Telemecanique 9007AO2 Square D 600 VAC 15 Amp Snap Switch

Product Description

The Telemecanique 9007AO2 is a heavy duty industrial snap switch designed for various control applications. It features a rated operating current of five amperes at six hundred volts AC. This device is key in automation and control systems, suitable for use in industrial environments.

• Operating voltage up to 600 VAC
• Snap action with a plunger head actuator
• Complies with UL and CSA standards

Product Highlights

This snap switch is recognized for its durability and reliability in heavy-duty applications. The design allows for easy installation and consistent performance in various temperature ranges.

Product Information

Standard Information

• Catalog Number: 9007AO2
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Voltage Rating: 600 Volt
• Amperage: 15 Amp
• Body Material: Cast Zinc
• Dimensions: 1.03 inches (width) x 2.5 inches (height)
• Weight: 0.1 lb
• Operating Temperature: -20 to 185 degrees F
• Contact Configuration: Form Z; 1 NO and 1 NC
• Enclosure Rating: NEMA 1
