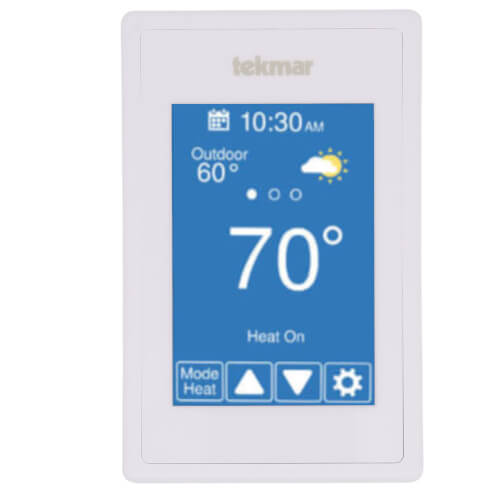

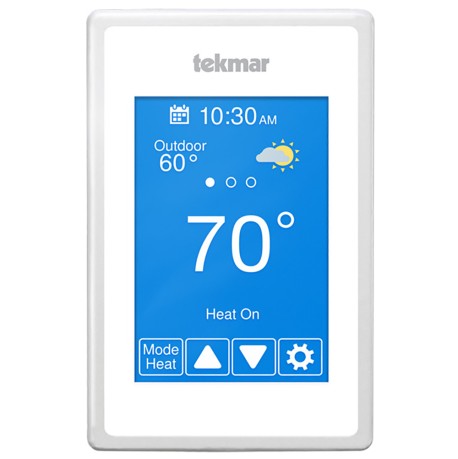

TEKMAR T561 Wifi Thermostat - One Stage Heat

Product Description

The TEKMAR T561 is a WiFi thermostat designed for one-stage heating systems. This device connects to the internet, allowing control via the Watts Home mobile app. It offers a programmable schedule that can be set for seven days with four events each day. The thermostat also features an Away mode for energy savings when not in use.

• Color touchscreen display of three point five inches
• Supports English, French, and Spanish
• Options for different background colors

Product Highlights

The T561 supports radiant floor heating and offers energy monitoring with automatic updates.

Product Information

Standard Information

• Application: Heat Only
• Stages: 1 Heat

Technical Specifications

• Programmability: 7 Day Programmable
• User Interface: Touchscreen
• Mount: Vertical
• Power Method: Hardwired
• Voltage: 24V
• Temperature Range (F): 32°F to 122°F
• Display: Color Display
• Sensor Type: NTC thermistor
• Amperage: 2
• Electrical Ratings: 15 to 30 VAC, 2 VA standby, Class 2
• Setting Temperature Range: 40 to 122°F (4.5 to 50.0°C)
• Relay: 30 VAC, 2 A, Class 2 circuits
• Communications: WiFi 802.11n, 2.4 GHz, WPA2 encryption
• Mobile app: iOS 12 or higher, Android 8 or higher
• Languages: English, French, Spanish
• Ambient conditions: Indoor use only, 32 to 122°F, RH ≤ 90% non-condensing
• Enclosure material: White PVC Plastic, NEMA type 1
• warranty: 3-year warranty
