TEKMAR T519 Radiant Thermostat One Stage Heat with Slab Sensor

Product Description

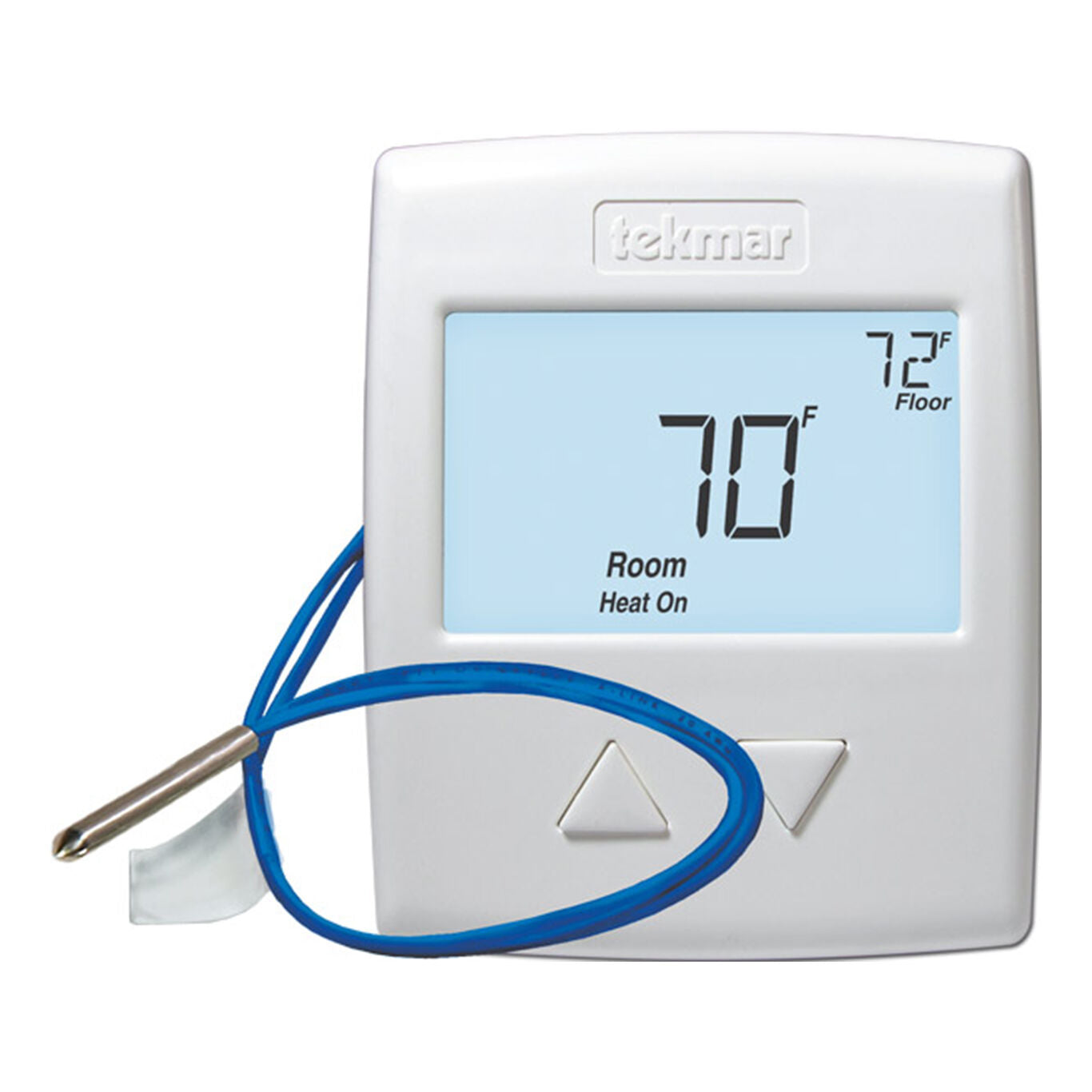

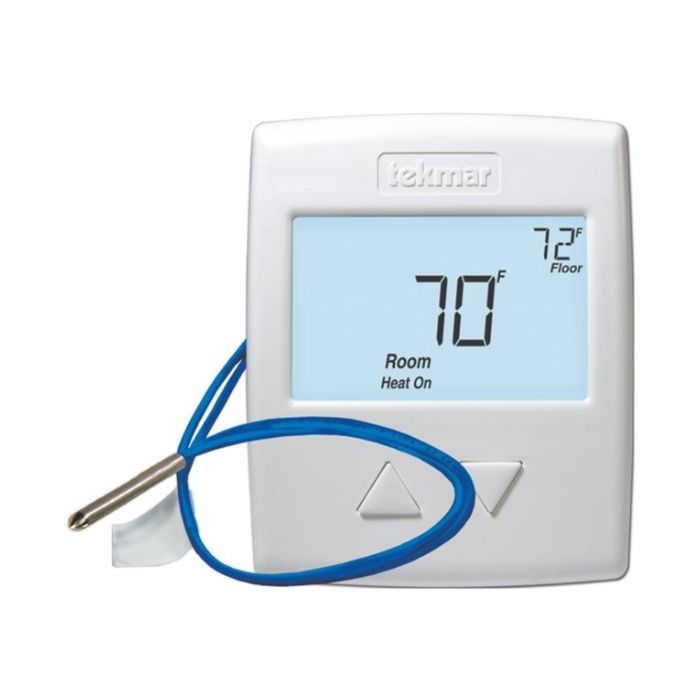

The TEKMAR T519 Radiant Thermostat controls room or floor temperature in hydronic heating zones. This unit uses Pulse Width Modulation (PWM) technology for accurate temperature regulation. It features an easy-to-use button interface and a backlit display. The thermostat is specifically designed for indoor hot water radiant floor heating systems and comes with a Slab Sensor 079 to effectively measure the floor temperature. It is compatible with zone valve controls and switching relays.

• Controls temperature in hydronic heating zones.
• Employs Pulse Width Modulation (PWM) technology.

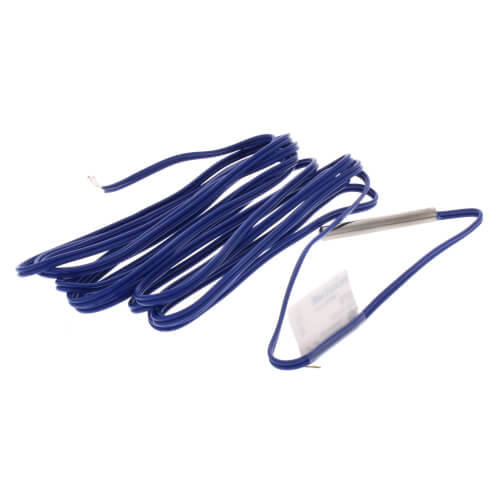

• Includes Slab Sensor 079 for accurate floor temperature measurement.

Product Highlights

The TEKMAR T519 ensures optimal heating within your hydronic system through precise temperature control.

Product Information

Standard Information

• Brand: TEKMAR
• MPN: T519

Technical Specifications

• Stages: 1 Heat
• Power Supply: 10 to 30 V (AC/DC), 50/60 Hz, 1.8 VA standby, 56 VA max fully loaded, Class 2
• Setting Temperature Range: 40 to 122°F (4.5 to 50.0°C)
• Relay: 30 V (AC/DC) 2 A, Class 2 circuits
• Sensor: NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus/minus 0.2 degrees C) Beta = 3892
• Ambient Conditions: Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
• Enclosure Material: White PVC plastic
• Enclosure NEMA Rating: NEMA 1
• Dimensions: 3-11/16 H x 3 W x 15/16 D (94 x 76 x 24 mm)
• Control Type: Microprocessor control; not a safety (limit) control
• Agency Approvals: Meets Class B: ICES & FCC Part 15
• Mounting: Vertical
• Screen: Monochrome, backlit
• Weight: 0.6 lbs
