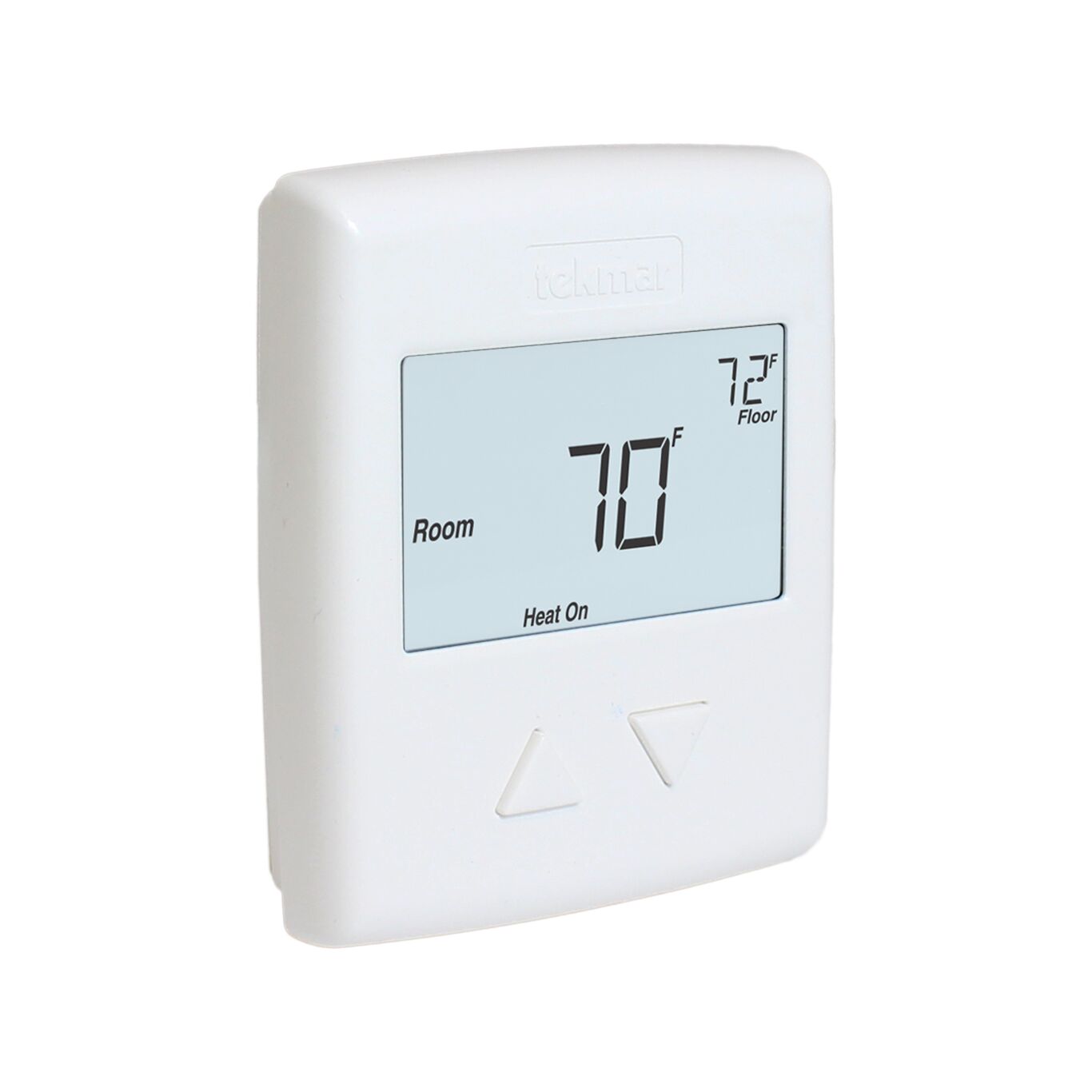

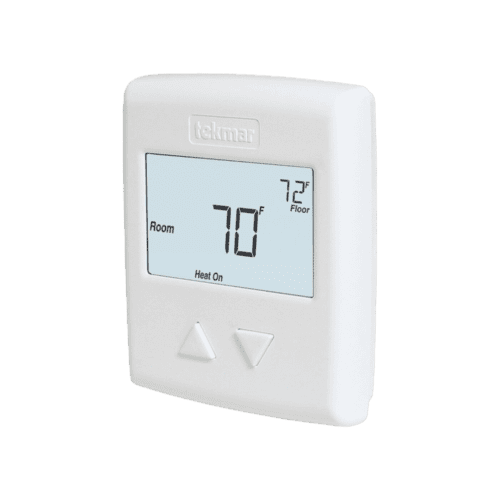

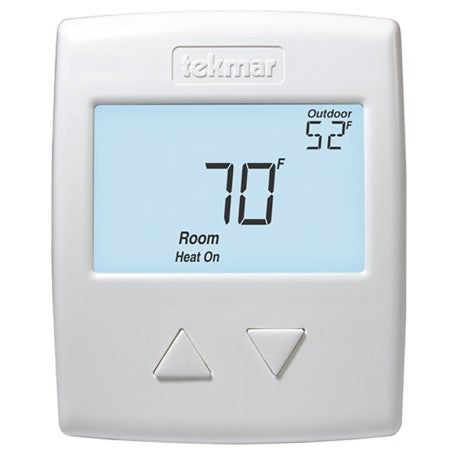

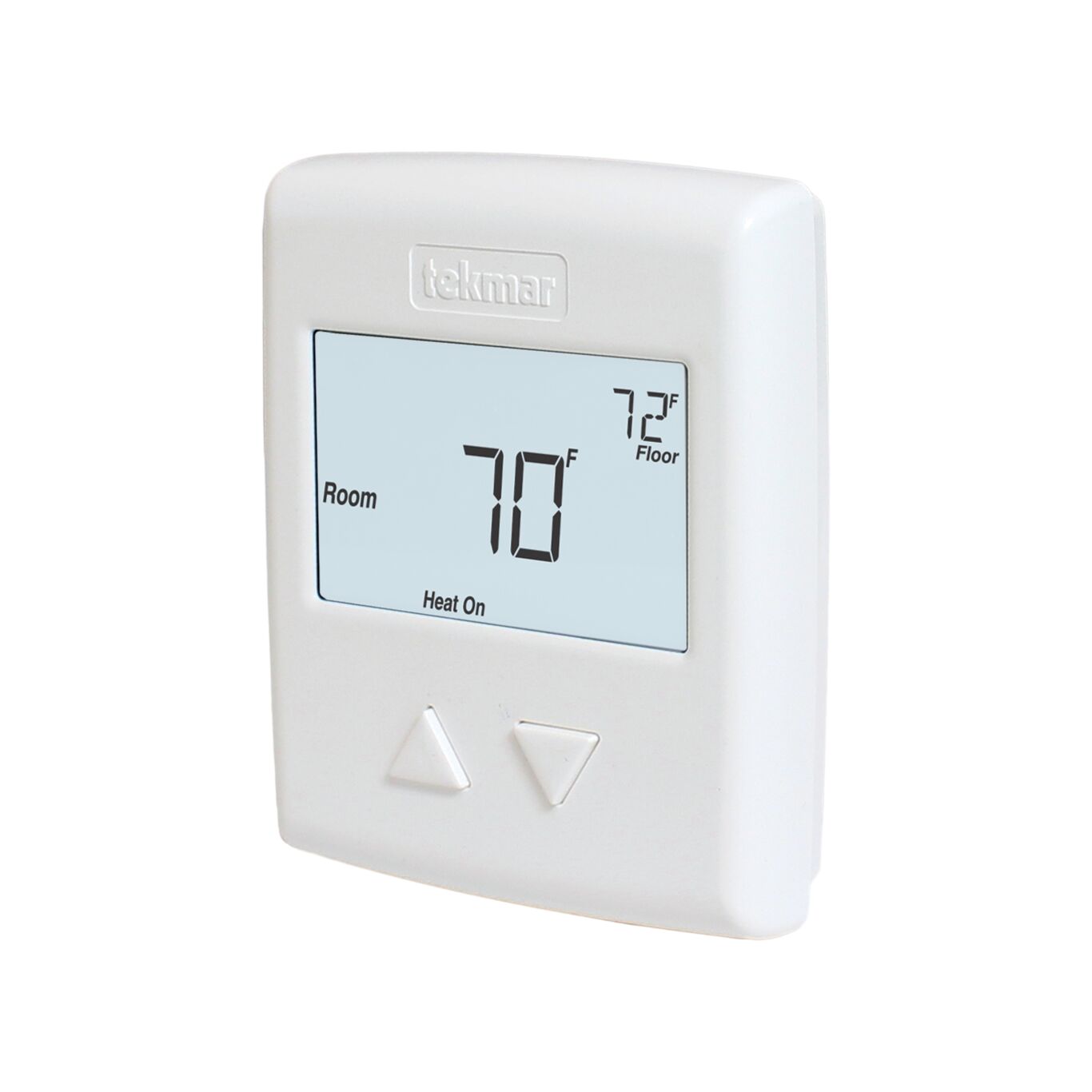

TEKMAR T518 Thermostat, One Stage Heat

Product Description

The TEKMAR T518 Thermostat is a suitable solution for managing single-zone hydronic heating systems. This device employs Pulse Width Modulation (PWM) technology to effectively regulate room temperature. The unit includes user-friendly up and down buttons along with a display for easy operation.

• Compatible with auxiliary sensors for outdoor, floor, or remote room temperature monitoring.
• Designed as a direct replacement for TEKMAR 507 and 508 models.
• Optional Adaptor Plate 012 for single gang electrical box installation available.

Product Highlights

The TEKMAR T518 offers reliable temperature control for hydronic heating zones, providing seamless integration with existing systems.

Product Information

Standard Information

• Brand: TEKMAR
• MPN: T518

Technical Specifications

• Stages: 1 Heat
• Programmability: Non-programmable
• Power Supply: 10 to 30 V (ac/dc), 50/60 Hz
• Relay: 30 V (ac/dc) 2 A
• Sensor: NTC thermistor, 10 k ohms at 77 degrees F
• Temperature Range: 32 to 122 Degrees F
• Setting Temperature Range: 40 to 122 Degrees F
• Ambient Conditions: Indoor use only, RH less than or equal to 90 percent
• Enclosure Material: White PVC plastic
• Mounting: Vertical
• Dimensions: 3-11/16 H x 3 W x 15/16 D
• Color Finish Name: White
• Interface: Button
• Screen: Monochrome, backlit
• Agency Approvals: Meets Class B: ICES & FCC Part 15
