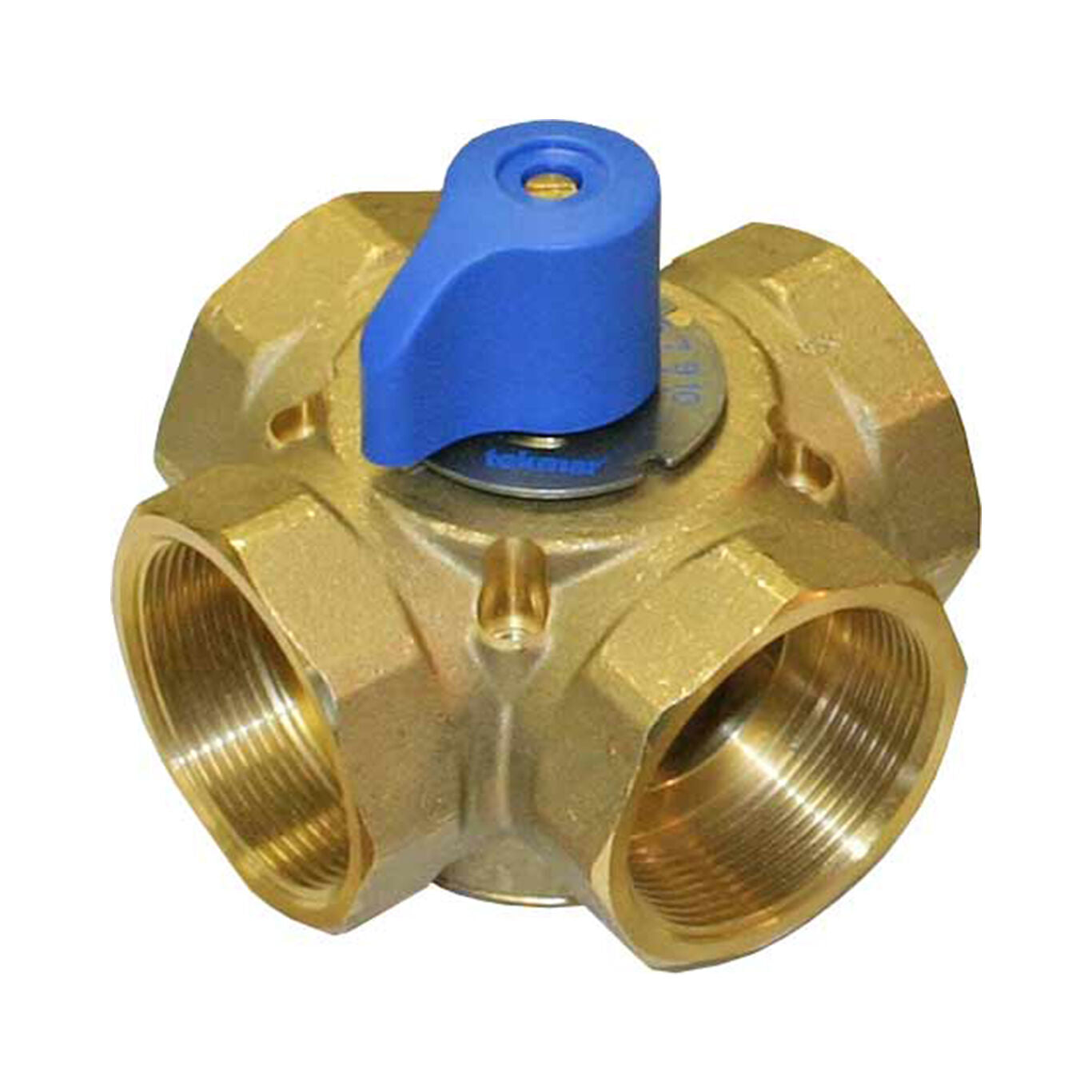

Tekmar 724 Mixing Valve 4 Way 2 in.

Product Description

The Tekmar Mixing Valve 724 is a four-way mixing valve designed for efficient water mixing in heating systems. It connects supply water from heating sources with returning system water. The valve is compatible with both closed-loop and open-loop hydronic systems.

• Maximum operating pressure of one hundred forty-six psi.
• Operating temperature range from negative twenty degrees Fahrenheit to two hundred forty-eight degrees Fahrenheit.
• Standard female NPT threads.

Product Highlights

This valve allows for easy manual operation and ensures reliable performance by mixing chilled and hot water.

Product Information

Standard Information

• Brand: Tekmar
• Part Number: 724

Technical Specifications

• Operating Temperature: -20 F to 248 F
• Maximum Operation Pressure: 146 psi
• Material: Brass
• Valve Type: 4-Way
• Size: 2 in.
• Connection Type: FNPT
• Weight: 6.1 lbs
• Application: Point of Source, Heating
