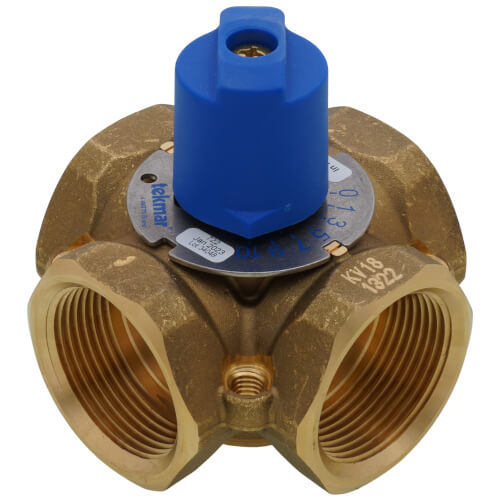

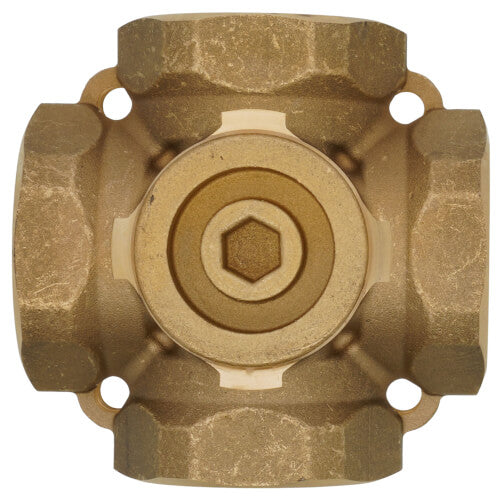

Tekmar Controls 722 1 1/4 Brass 4-Way Mixing Valve

Product Description

The Tekmar Controls 722 is a 1 1/4 inch 4-way mixing valve designed for hydronic heating systems. This valve mixes supply water from a heating source with returning water from the system. It operates effectively in both closed and open loop systems. The valve features standard female NPT threads for easy installation.

• Maximum leak-through rate of 1% to accommodate water expansion.
• Manual valve position setting with a handle.
• Compatible with Actuating Motor 741 for automatic operation.

Product Highlights

Efficient mixing for hydronic heating with robust construction.

Product Information

Standard Information

• Manufacturer: Tekmar Controls
• MPN: 722

Technical Specifications

• Body Material: Brass
• Max Operating Pressure: 146 psi
• Temperature Range: 20°F to 248°F
• Connection Type: FNPT x FNPT
• Shipping Weight: 2.36 lbs
• Shipping Dimensions: 3.5 inches (Height) x 3.6 inches (Width) x 3.95 inches (Depth)
• Compatible Fluids: Chilled and hot water with antifreeze, not for mineral oil-based or chlorinated pool water.
