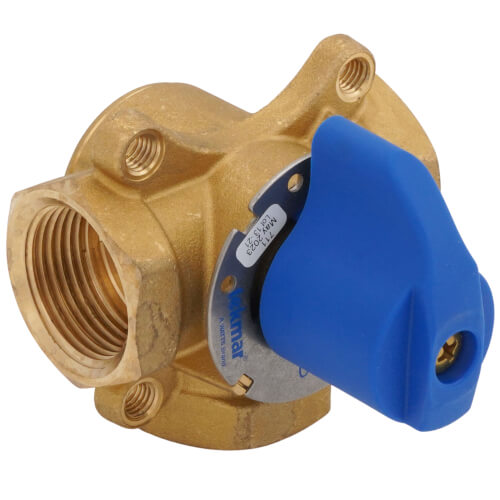

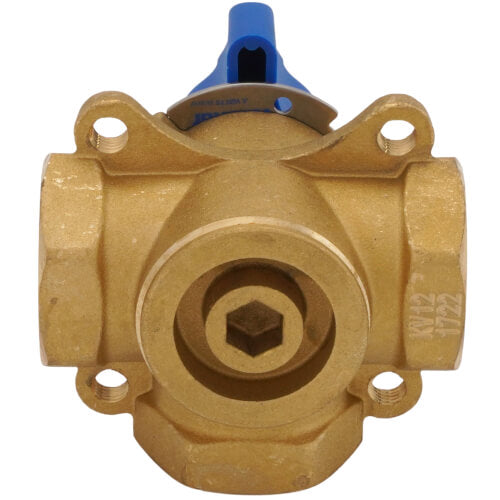

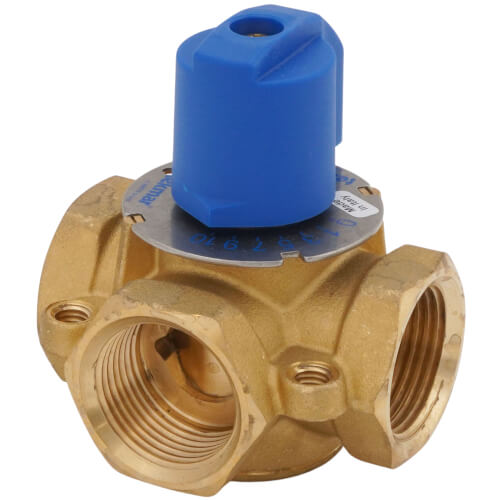

Tekmar Controls 711 1 Brass 3-Way Mixing Valve

Product Description

The Tekmar Controls 711 is a 1 Brass 3-Way Mixing Valve designed for mixing supply water from a heating source with water returning from a system. This valve operates in both closed loop and open loop hydronic systems. It features standard female NPT threads for easy installation.

• Max leak through rate of 1% for water expansion management.
• Manual valve position adjustment using a handle.
• Compatible with Actuating Motor 741 for automatic operation.

Product Highlights

This valve is ideal for heating applications and is suitable for chilled or hot water, including fluids with antifreeze and anticorrosive properties.

Product Information

Standard Information

• Brand: Tekmar Controls
• MPN: 711

Technical Specifications

• Connection Type: FNPT x FNPT
• Max Operating Pressure: 146 PSI
• Temperature Range: 20°F - 248°F
• Material: Brass
• Body Pattern: 3-Way
• Shipping Dimensions: 3.75 inches (Depth) x 3.5 inches (Width) x 3.38 inches (Height)
• Weight: 1.76 lbs
