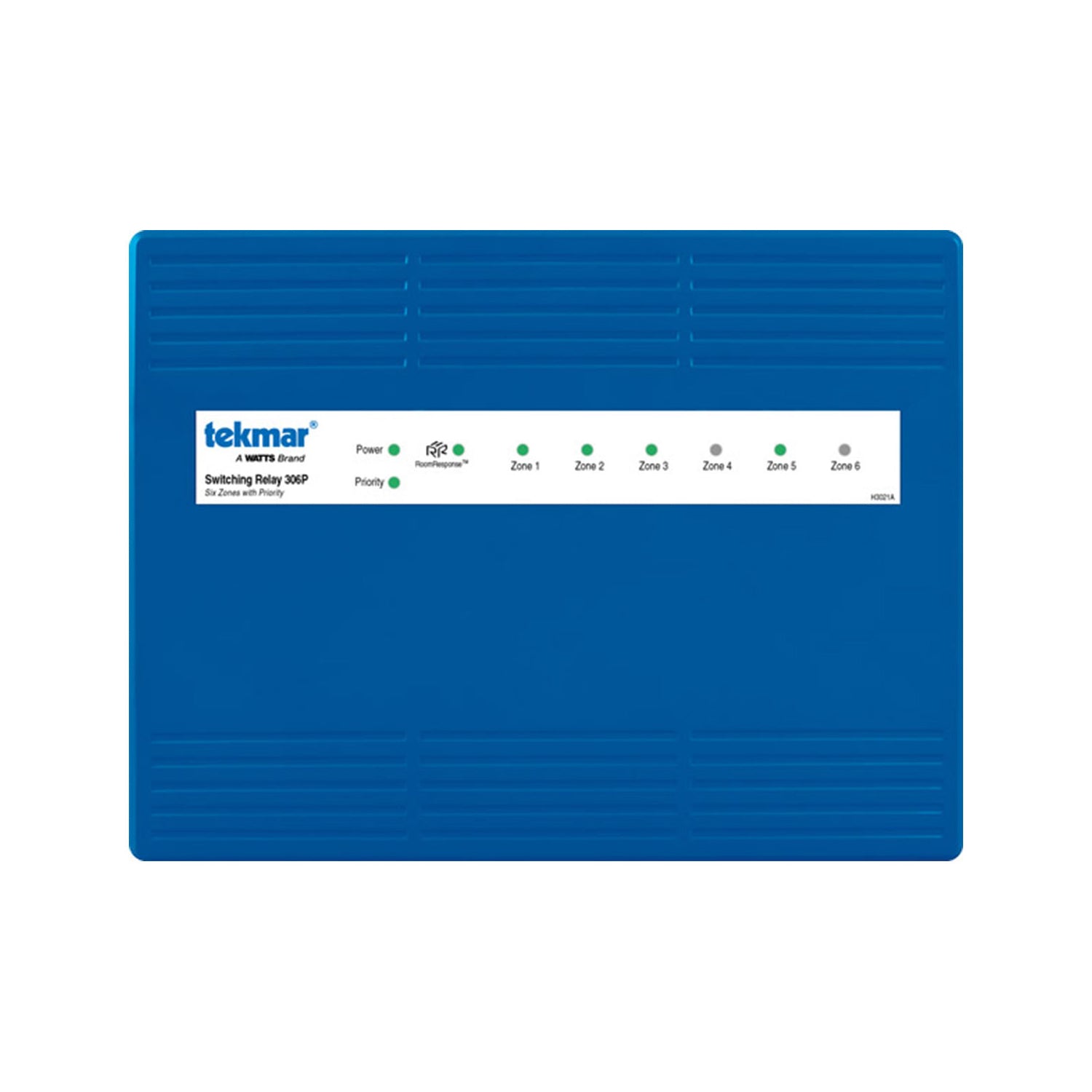

Tekmar 306P Switching Relay 6 Zone 115 VAC

Product Description

The Tekmar 306P is a switching relay designed to connect up to six thermostats. It regulates circulators for zoned hydronic heating systems, ensuring efficient operation. Zone 1 can have priority over the other zones, which allows for direct heating of an indirect hot water tank. The 306P also features an exercising function to protect circulators from sticking when inactive.

• Compatible with all low voltage thermostats
• Room Response signal for modulating-condensing boilers
• Post purge functionality for energy savings

Product Highlights

This relay includes multiple features for enhanced control and efficiency in hydronic heating systems.

Product Information

Standard Information

• Brand: Tekmar
• Power Supply: 115 VAC

Technical Specifications

• Product Type: 6 Zone Switching with Priority
• Enclosure Material: ABS Plastic and Galvanized Steel
• Size: 2-3/8 inches x 10-11/16 inches x 8-3/16 inches
• Voltage: 115V
• Shipping Weight: 5.000 lbs
• LED Indicators: For each zone, priority, end switch, and Room Response
• Fuses: Two spare fuses included
• Ambient Conditions: Indoor use only, from 32 to 122 degrees Fahrenheit
