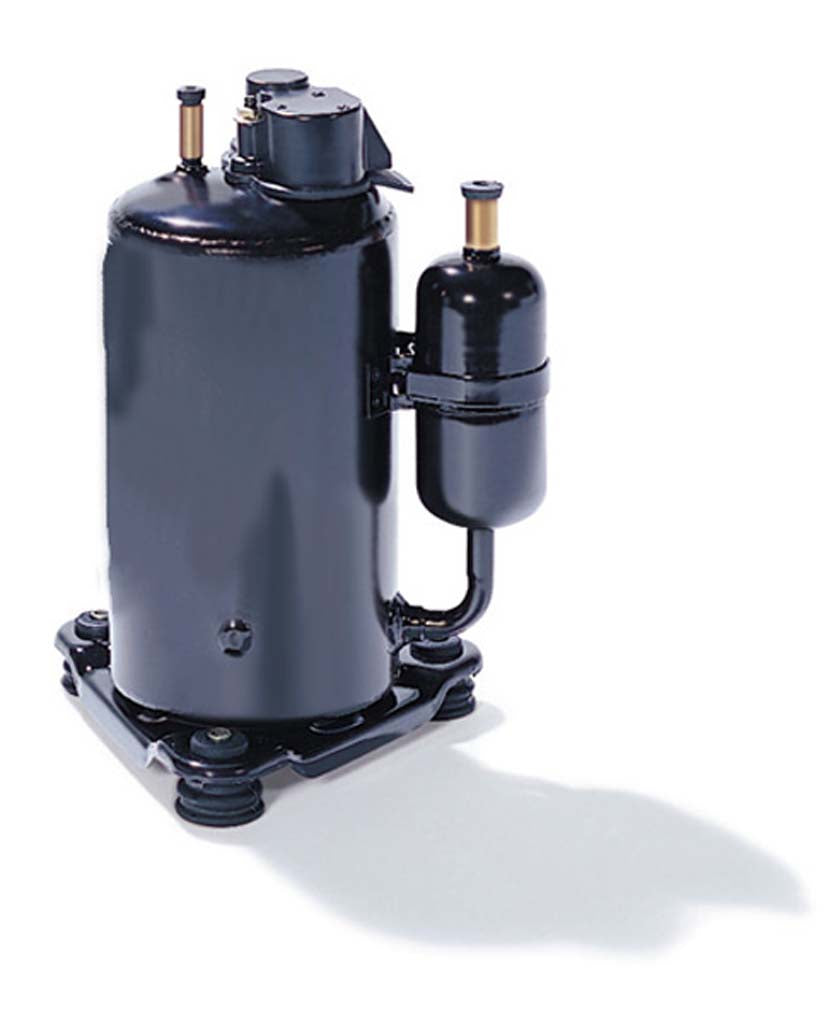

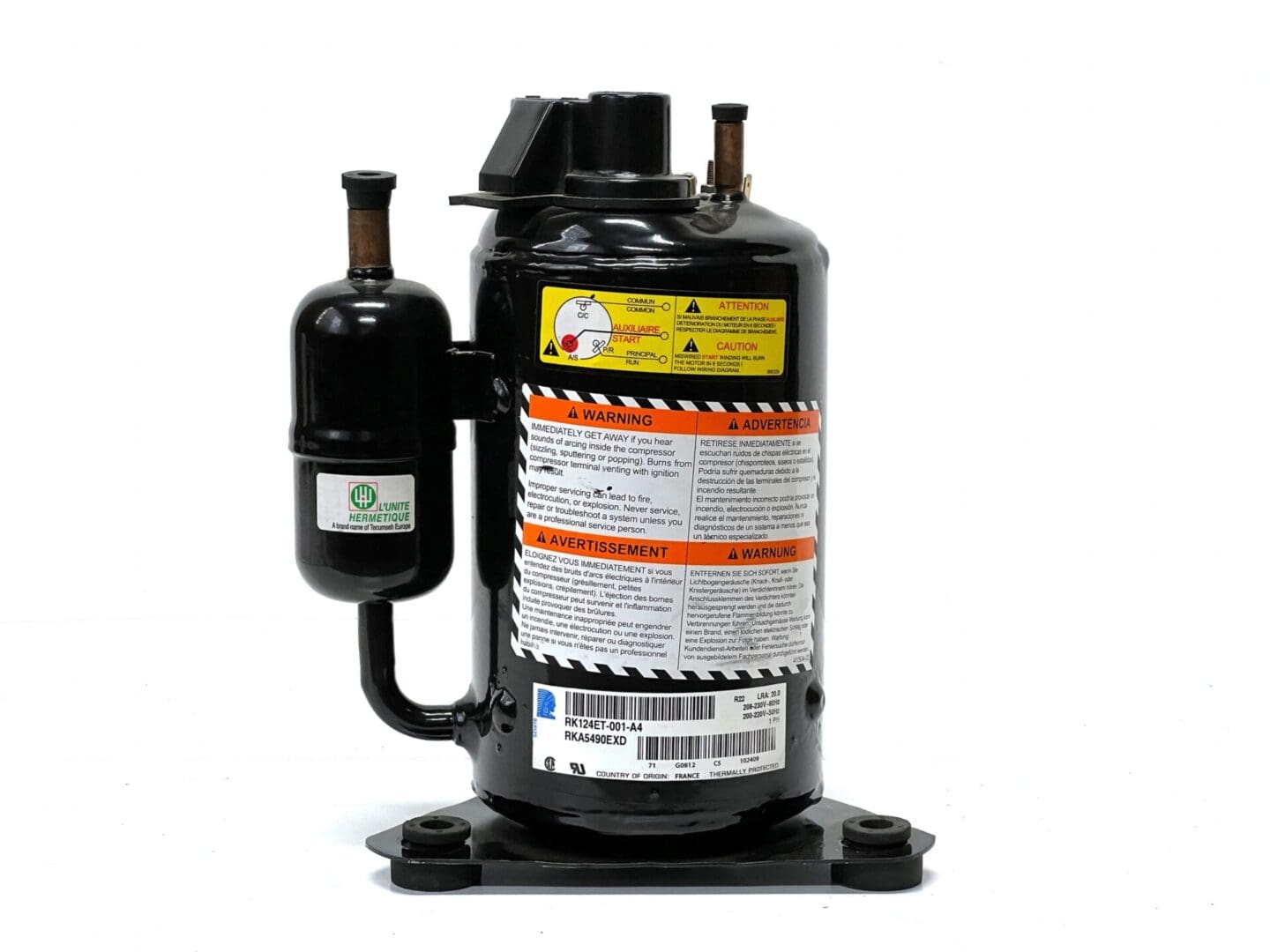

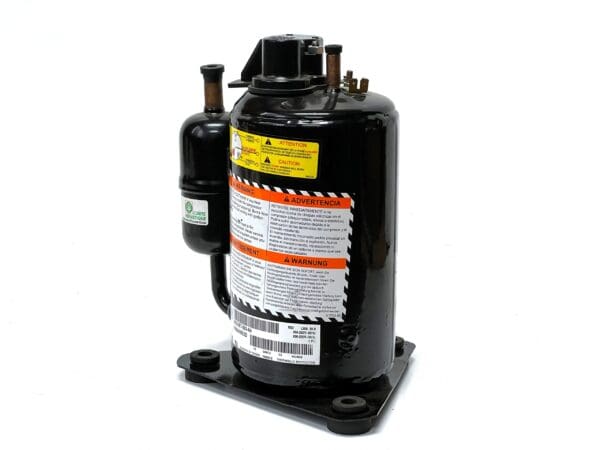

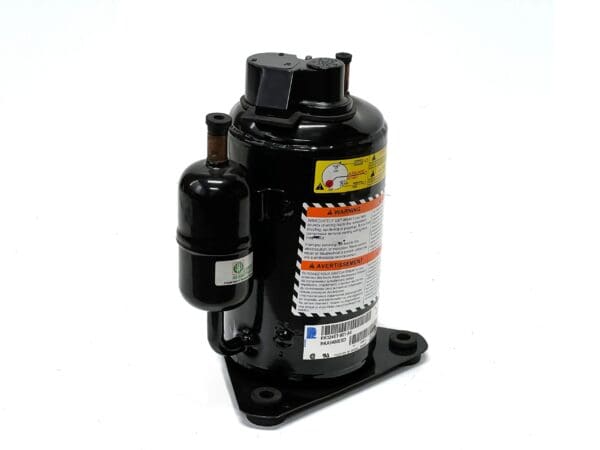

Tecumseh RKA5490EXD Rotary Compressor 3/4 HP (9,000 BTU) R-22

Product Description

The Tecumseh RKA5490EXD is a rotary compressor designed for air conditioning and heat pump systems that utilize R-22 refrigerant. This unit is built with a PSC motor and operates with low start torque. It is ideal for use with capillary tubes and other self-equalizing applications. This compressor comes with an oil charge and includes overload protection for enhanced reliability.

• Refrigerant: R-22
• Application: Air Conditioning & Heat Pump
• Mounting: Triangular Configuration

Product Highlights

Designed for efficient cooling, the RKA5490EXD is equipped to handle a range of temperatures and operates quietly while maintaining effective performance.

Product Information

Standard Information

• Brand: Tecumseh
• MPN: RKA5490EXD

Technical Specifications

• Product Technology: Rotary
• Voltage: 200V 1PH 50Hz, 208-230V 1PH 60Hz
• BTU: 9,000 BTU @ 45+F
• Horsepower: 3/4 HP
• Connection Type: Sweat
• Rated Load Amps: 3.8
• Displacement: 12.865 cc
• Oil Type: Synthetic Alkylate
• Oil Charge: 356 cc
• Weight: 28 lbs
• Height: 12.5 inches
• Connection Suction: 1/2 inches
• Connection Discharge: 5/16 inches
