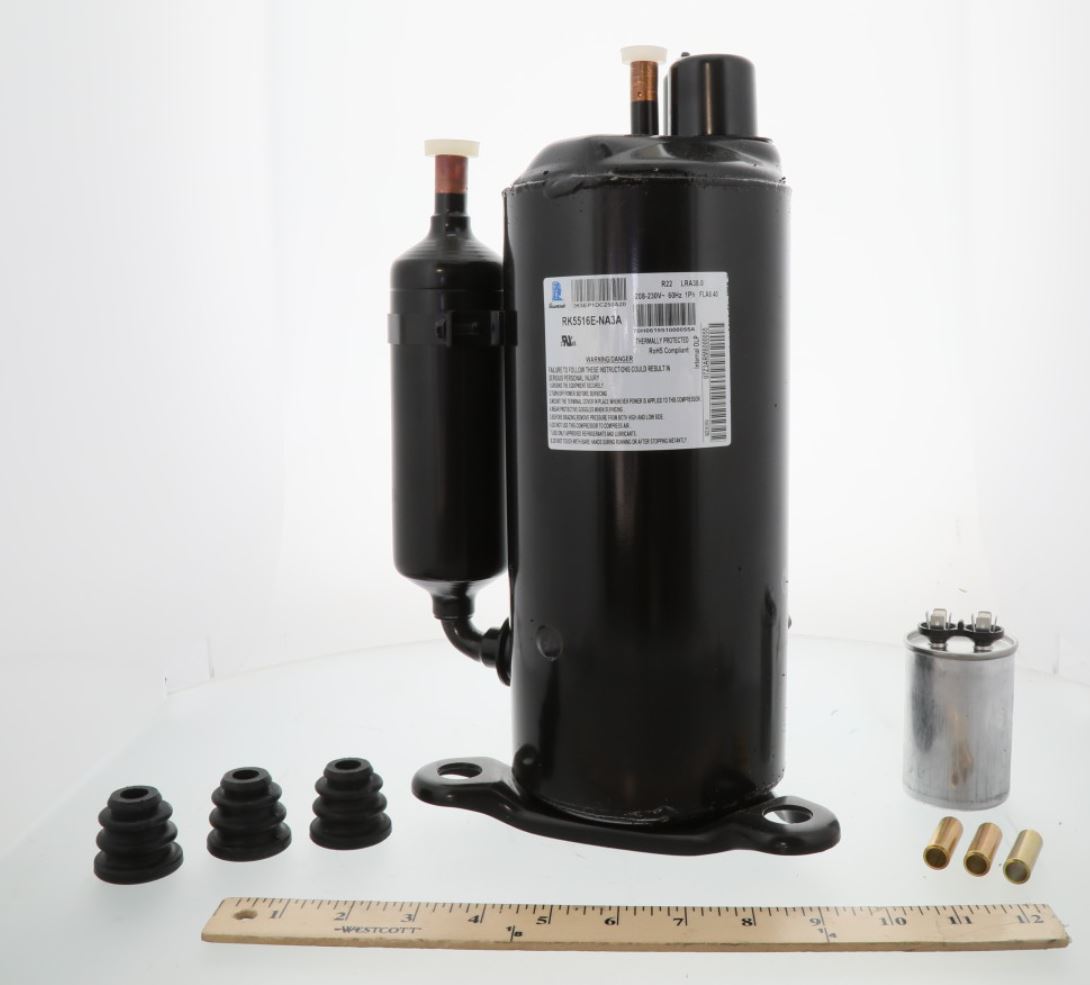

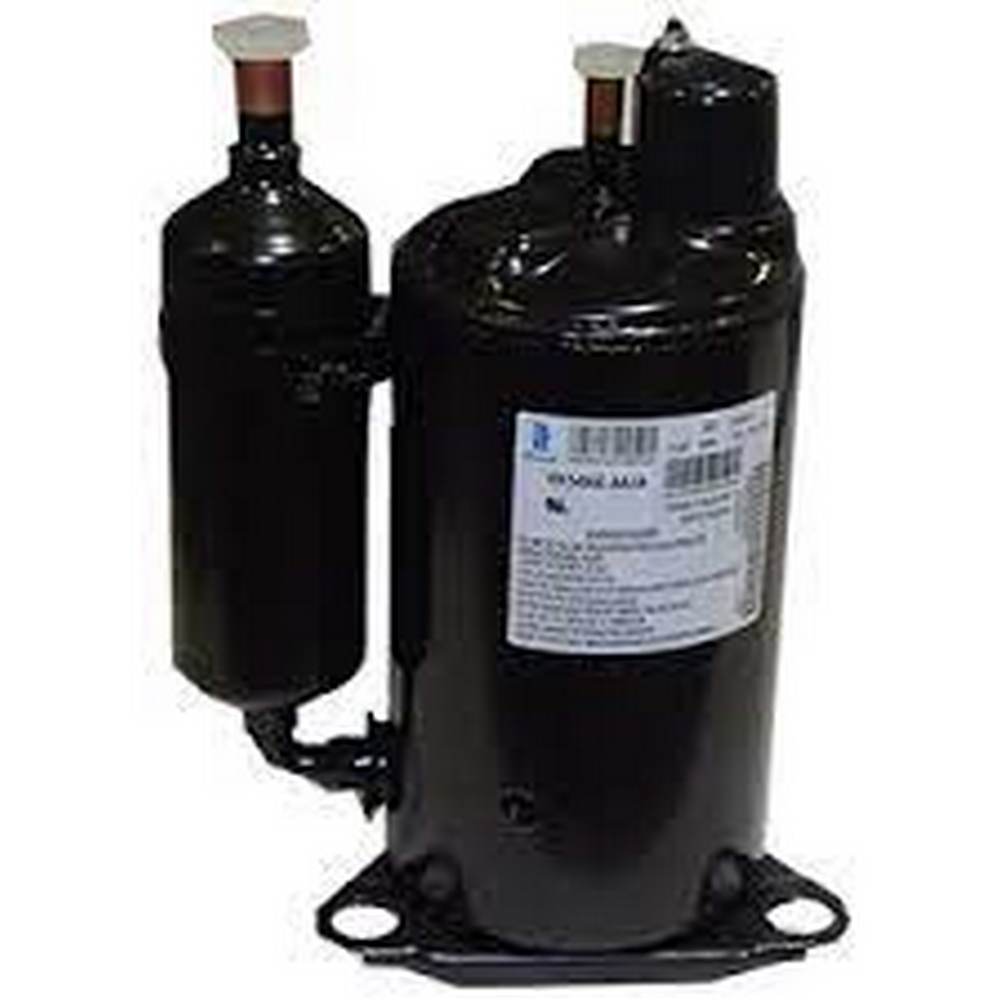

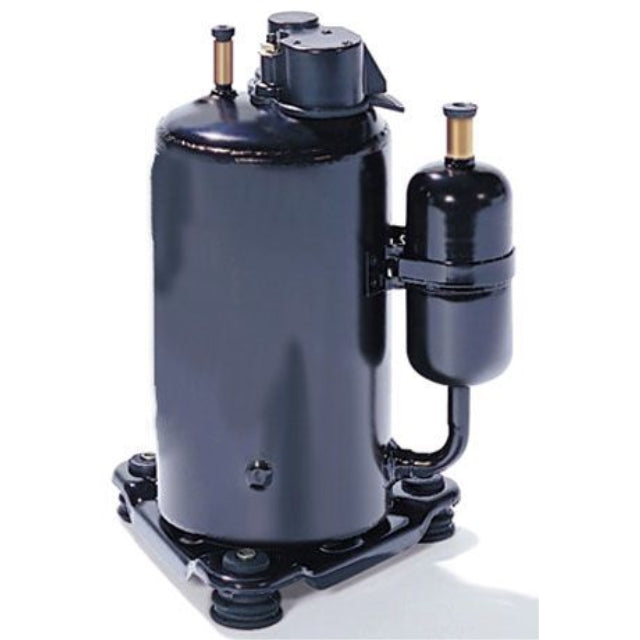

Tecumseh RK5EP1DC250J70 Aftermarket Hermetic Rotary Compressor 208-230V 1Ph 60Hz 15800 BTU 1-1/4 HP Replaces 300062307 34B0073N01 06104

Product Description

The Tecumseh RK5EP1DC250J70 is an aftermarket hermetic rotary compressor designed for air conditioning applications. Operating on 208-230V single-phase, 60Hz power, it delivers 15800 BTU/h with a 1-1/4 HP motor. This unit utilizes R-22 refrigerant and Alkylbenzene (AB) oil, featuring a 1/2 inch suction line and 3/8 inch discharge line for efficient system integration.

• Hermetic rotary compressor with 15800 BTU/h capacity for air conditioning systems.
• Operates on 208-230V single-phase, 60Hz power, compatible with R-22 refrigerant.
• Features a 1/2 inch suction line and 3/8 inch discharge line for installation.

Product Highlights

Ideal for air conditioning systems requiring a 1-1/4 HP hermetic rotary compressor.

Product Information

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: RK5EP1DC250J70
• Country of Origin: China

Technical Specifications

• BTU Output: 15800
• Compressor Housing: Hermetic
• Compressor Type: Rotary
• Frequency: 60 Hz
• Evaporating Temperature: -10°F to 55°F (-23.33°C to 12.78°C)
• Locked Rotor Amps (LRA): 38 A
• Oil Charge: 540 cc
• Oil Type: Alkylbenzene (AB)
• Phase: Single
• Rated Load Amps (RLA): 6.4 A
• Refrigerant: R-22
• Return Gas Temperature: 95°F (35°C)
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size: 1/2 in (12.7 mm)
• UL Listed: No
• Input Voltage: 208-230 VAC
• Displacement: 21.7 cc
• Compressor Cooling: Fan
• Viscosity: 55
• Motor Type: PSC
• Motor Current Capacity (MCC): 9.6 A
• Motor Resistance Main: 2.41 Ohm
• Motor Resistance Start: 2.34 Ohm
• Voltage Range: 187 to 254 VAC
• Type: Hermetic A/C Compressor
• Tons: 1.25 Ton
• Model Number: RK5516E-NA3A
• Application: Air Conditioning, High Back Pressure
• Motor Horsepower: 1.25 HP
• Product Type: Compressor
• Product Family: RK
• Discharge Line Size: 3/8 in (9.52 mm)
• Connection Material: Copper
• Motor Protection: Electronic Overcurrent
• Oil Recharge: 1.14 pints
• Speed Rating: 3500 RPM at 60 Hz
