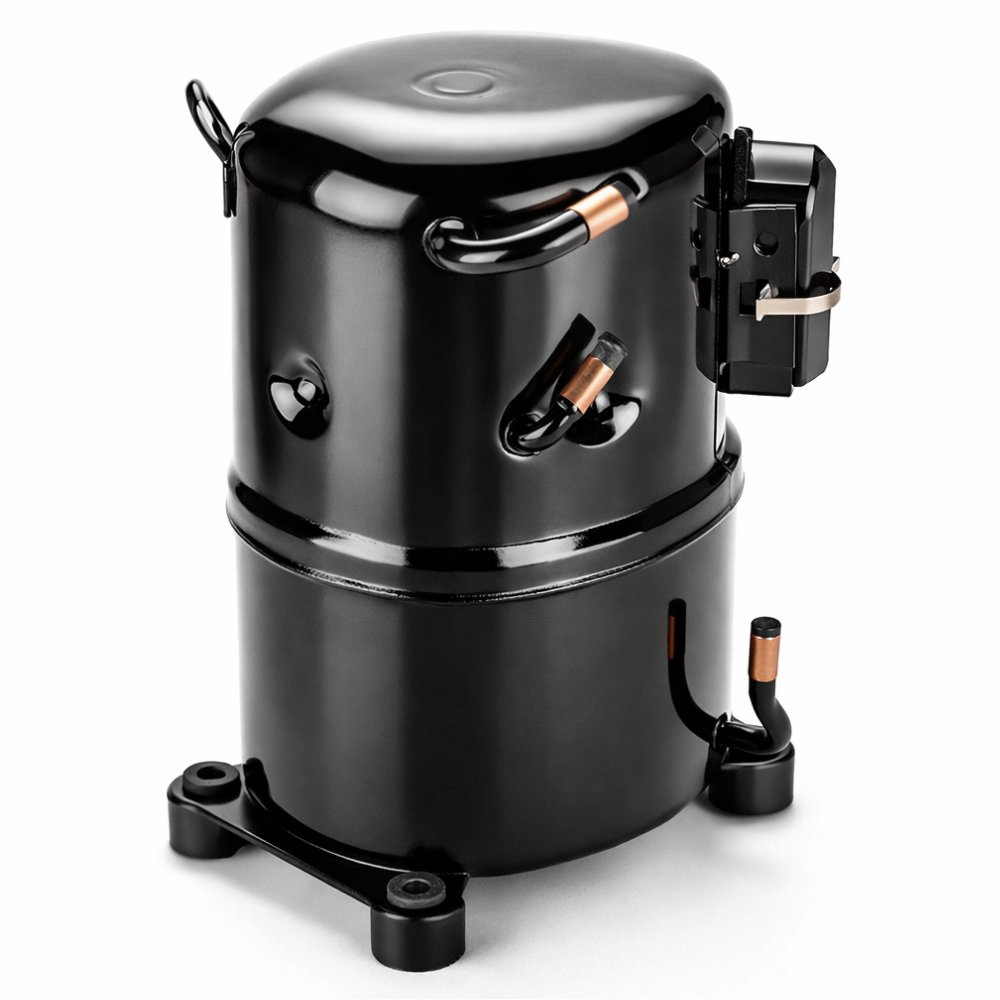

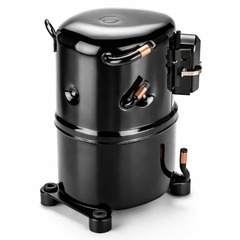

Tecumseh AWZ5532EXN AW series reciprocating compressor 2 1/2 hp

Product Description

The TECUMSEH AWZ5532EXN is a reciprocating compressor from the AW series, suitable for AC and HBP applications. This 2 1/2 HP unit operates with R-22 refrigerant and supports 200-220V 1PH 50Hz or 208-230V 1PH 60Hz power supplies. Featuring a 54.3 displacement and fan cooling, it ensures efficient performance. Equipped with a Low Start Torque (LST) PSC motor, it provides stable operation for air conditioning and refrigeration systems.

• Low Start Torque (LST) motor for efficient and stable operation.
• Designed for R-22 refrigerant systems, ensuring reliable cooling performance.
• High-capacity reciprocating compressor suitable for AC and HBP applications.

Product Highlights

This TECUMSEH AWZ5532EXN compressor offers 2 1/2 HP, R-22 compatibility, and a 54.3 displacement for efficient AC and HBP refrigeration.

Product Information

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: AWZ5532EXN

Technical Specifications

• Product Family: AW
• Application: AC, HBP
• Status: Active
• Input Voltage: 200-220V 1PH 50Hz, 208-230V 1PH 60Hz
• Refrigerant Type: R-22
• Compressor Technology: Reciprocating
• Horsepower: 2 1/2 HP
• Motor Torque: Low Start Torque (LST)
• Evaporating Temperature Range: -23.3°C to 12.8°C (-10°F to 55°F)
• Certifications: CURUS, ISI, UL
• Displacement: 54.3
• Cooling Type: Fan
• Oil Charge Volume: 1140 cc
• Oil Type: Mineral
• Oil Viscosity: 37
• Locked Rotor Amps (LRA): 90
• Motor Type: PSC
• Motor Current Capacity (MCC): 23
• Motor Resistance Main: 0.62
• Motor Resistance Start: 2.15
• Rated Load Amps (RLA) 60Hz: 14.5
• Frequency: 50Hz~60Hz
• Voltage Range 50Hz: 180to242
• Voltage Range 60Hz: 197to254
• Product Type: Compressor
• Phase: Single Phase
• Cooling Capacity: ~32000–34000 BTU/hr
• Power Input: ~3200–3400 W
• Energy Efficiency Ratio (EER): ~2.9
• Product Category: Compressors, Reciprocating Compressors
