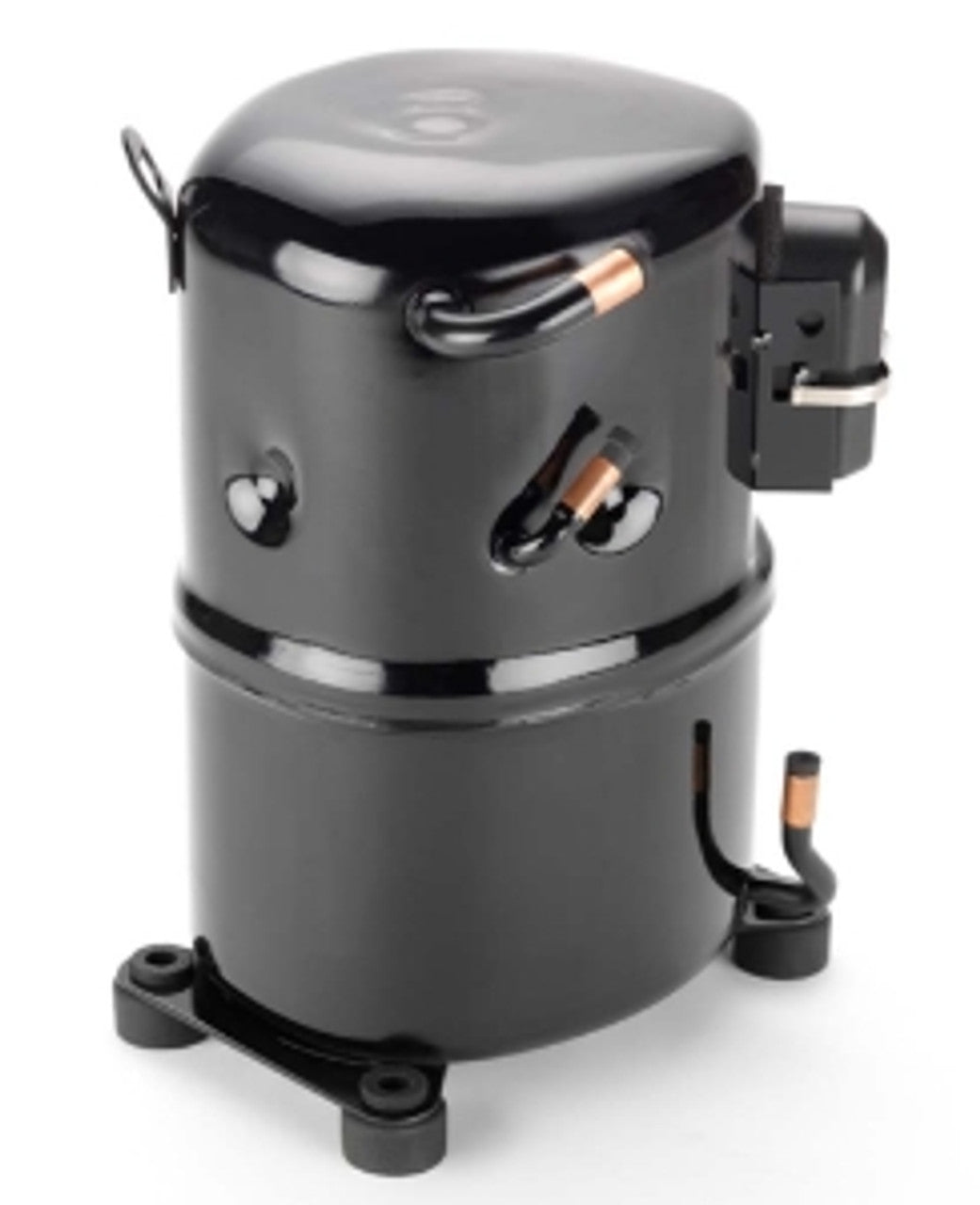

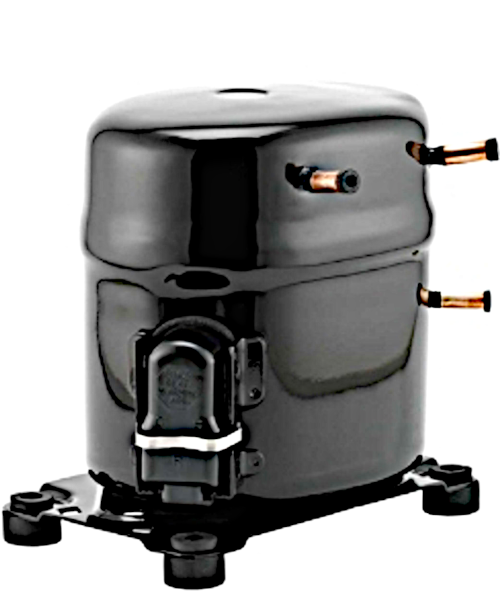

Tecumseh AWS2512ZXN Aws2512zxn 3 HP Reciprocating Refrigeration Compressor

Product Description

The TECUMSEH AWS2512ZXN is an AW Series reciprocating compressor suitable for various refrigeration applications. This compressor operates on a voltage range of two hundred to two hundred thirty volts, single phase, and can handle both fifty and sixty hertz frequencies. It is designed for low back pressure (LBP) applications, specifically using R-404A refrigerant and can manage evaporation temperatures from negative forty degrees Celsius to negative twelve point two degrees Celsius.

• AW Series Reciprocating Compressor
• Oil filled hermetically sealed construction
• Compatible with LBP applications

Product Highlights

This compressor delivers reliable performance for refrigeration systems requiring medium capacity. Its hermetic design ensures minimal leakage and reduced maintenance needs.

Product Information

Standard Information

• Brand: Tecumseh
• MPN: AWS2512ZXN

Technical Specifications

• Item No.: AW459EH-411-J7
• Horse Power: 3 HP
• Voltage: 200-230V
• Phase: 1PH
• Frequency: 50/60Hz
• Application: LBP
• Refrigerant: R-404A
• Refrigerant Evaporation Range: -40°C to -12.2°C (-40°F to 10°F)
• Agency Approvals: ISI, UL
• Motor Torque: High Start Torque (HST)
• Displacement (CC): 68.03
• Compressor Cooling: Fan
• Oil Charge: 1140 cc
• Oil Type: Polyolester
• Viscosity: 32
• LRA: 80
• Motor Type: CSR
• MCC: 20
• Motor Resistance - Main: 0.68
• Motor Resistance Start: 1.72
• RLA 50HZ: 11.3
• RLA 60HZ: 11.7
• Voltage Range 50Hz: 180 to 242
• Voltage Range 60Hz: 187 to 254
• Start Cap: 85PS330D23
• Run Cap: 85R-10118
• Relay: 820-10416
