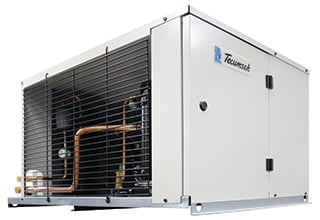

Tecumseh AWG4530EXNHG 2H3233-20 Outdoor Condensing Unit 208-230V/60Hz

Tecumseh AWG4530EXNHG 2H3233-20 Outdoor Condensing Unit 208-230V/60Hz

Description:
Air-cooled low and medium temperature condensing unit platform with both indoor and outdoor options. Focusing on the 1/2 to 6 HP capacity range, Tecumseh ARGUS is ideal for walk-in coolers and freezers and provides restaurant, grocery stores and convenience stores unmatched performance and configurability which keeps produce and other products at optimal freshness.

Specifications:
High Temperature Rated @ 45F
Ref: R-22
Model Number: AWG4530EXNHG
Unit Bill of Material: 2H3233-20
Volt/Hz/Ph: 208-230/60/1
HP: 2 1/2
Starting Torque: High
Capacity (Btu/h) at 95F Ambient
20: 18,601
30: 22,950
40: 27,793
45: 30,400
50: 33,129
Dimensions (in) L: 40.7
Dimensions (in) W: 32
Dimensions (in) H: 26.5
Connection Size (in) Suction: 7/8 ODF
Connection Size (in) Liquid: 3/8 ODF
Wt (lbs): 253
